    100lbf Load Cell
    100lbf Load Cell

    100lbf Load Cell

    6138
    $350.00
    100lbf Load Cell100lbf Load Cell
    • Description
    • Specifications
    • Questions?

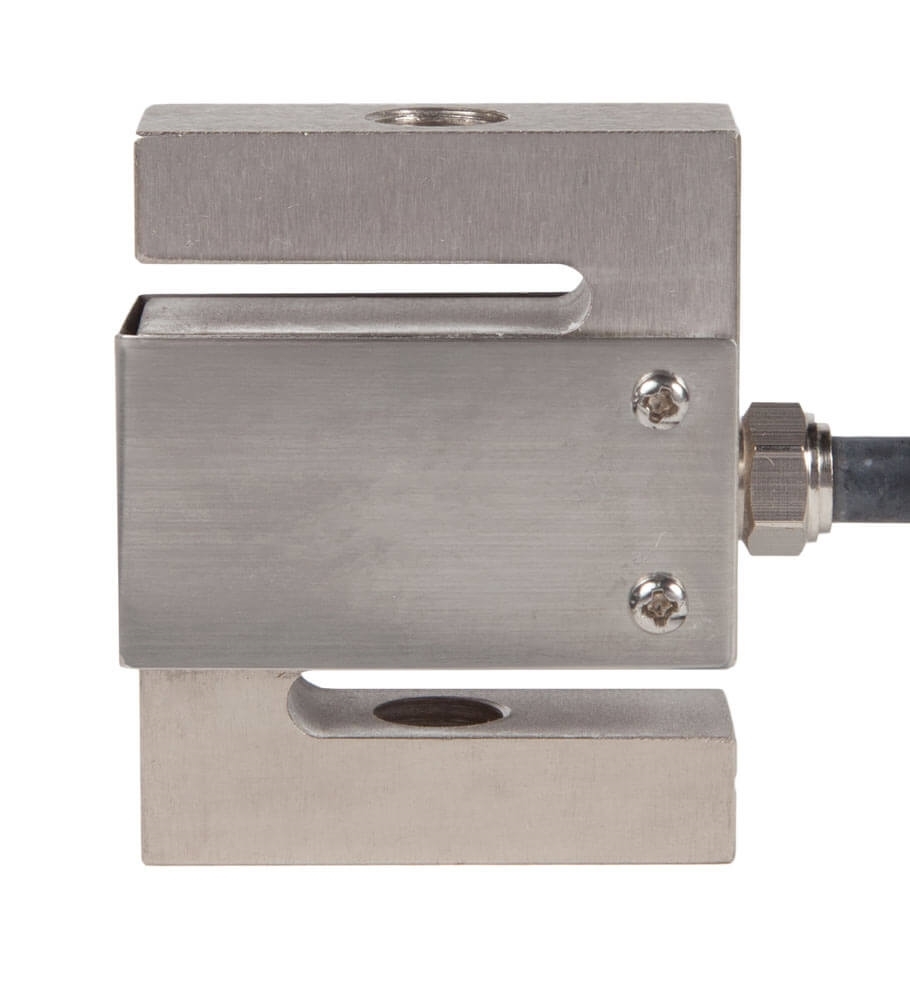

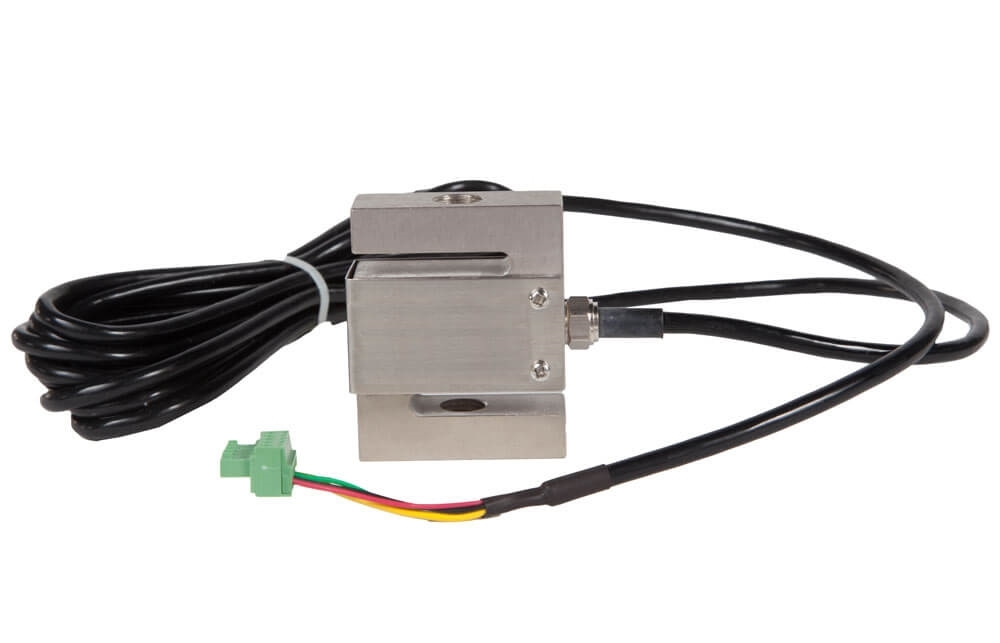

    This S-Type Load Cell has a capacity of 100lbf (0.4kN) can be used in a variety of soil testing applications to measure compression or tension loads. Top and bottom mounting holes have 1/2in x 20tpi threads. Load Cells can be connected to two-channel or four-channel Data Readout to display load values and transfer data to a computer.

    Features:

    • Load capacity of 100lbf (0.4kN)
    • Four-wire leads for data output
    • Threaded mounting holes
    • Machined from rugged stainless steel or plated nickel alloy

    Included Items:

    • 100lbf Load Cell

    Accessories:

    • Data Acquisition Software records specimen information and real-time test data for a wide range of soil and asphalt laboratory tests and prepares reports following applicable ASTM and AASHTO requirements
    • Data Readouts display real-time data
    • 7026-A Loading Button is a point of contact when performing triaxial and asphalt tests and is sold separately
    Load Capacity 100lbf (0.445kN)
    Rated Output 3.0mV/V
    Non-linearity 0.03% Full Scale Output
    Product Dimensions 2 x 0.5 x 3in (50.8 x 12.7 x 76.2mm) WxDxH
    Estimated Shipping Weight 2.0lb (0.91kg)

    Please enter your questions/comments and contact information below. A Karol-Warner customer service representative will respond during business hours (8am - 5pm EST, Monday through Friday).

    Accessories
    Two Channel Data Readout

    Data Readouts

    From $1,190.00
    Loading Button

    Loading Button

    From $35.00
