100mm Fixed Ring Consolidometer

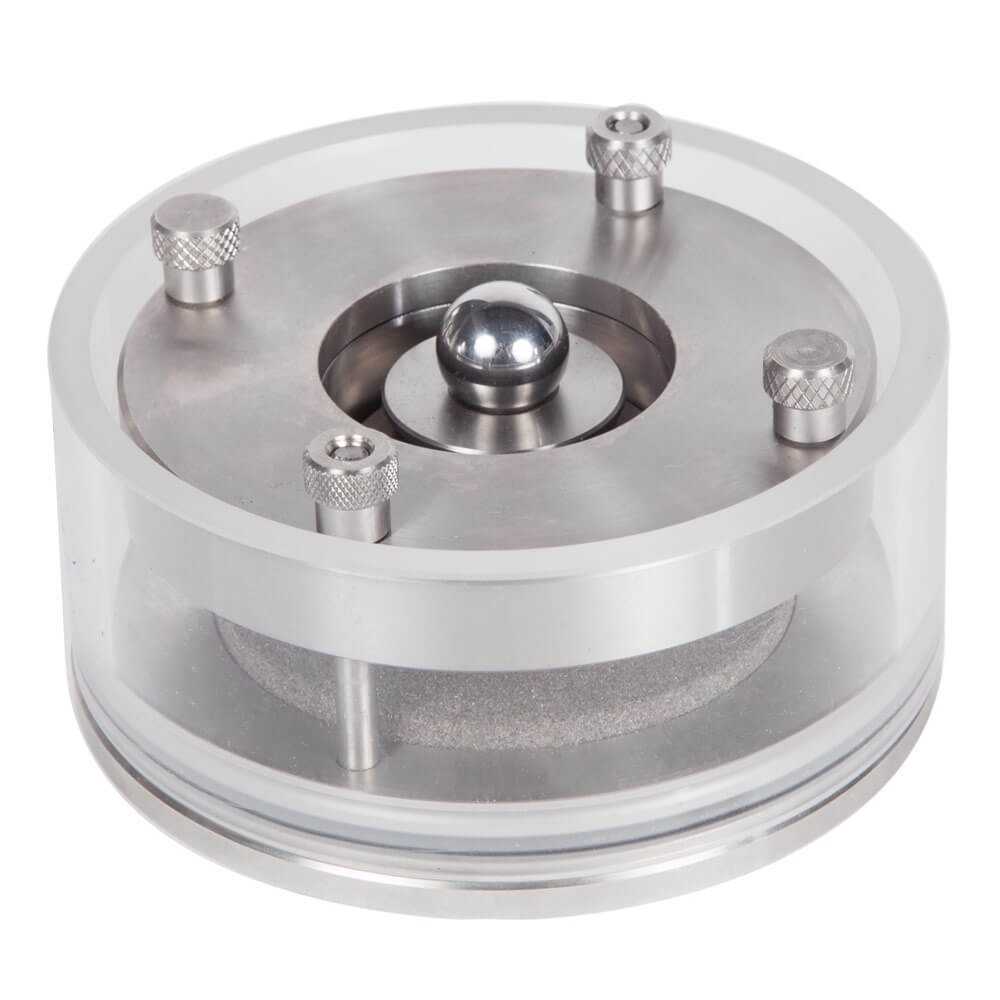

The 100mm Fixed Ring Consolidometer is for specimens 100 x 25.4mm (3.94 x 1in) Dia. x H, and is equipped with an attached acrylic inundation ring, loading pad, and collar with lifting knobs. Other components include a cutting sample ring, 3.92in diameter top porous stone, bottom porous stone, and loading ball. Included components are also available as replacement products. For our complete selection of Fixed and Floating Ring Consolidometers, please visit our Consolidometers page.

Features:

• Durable, long-lasting stainless steel construction
• Collar has lifting knobs for easy specimen removal
• Compatible with most consolidation load frames

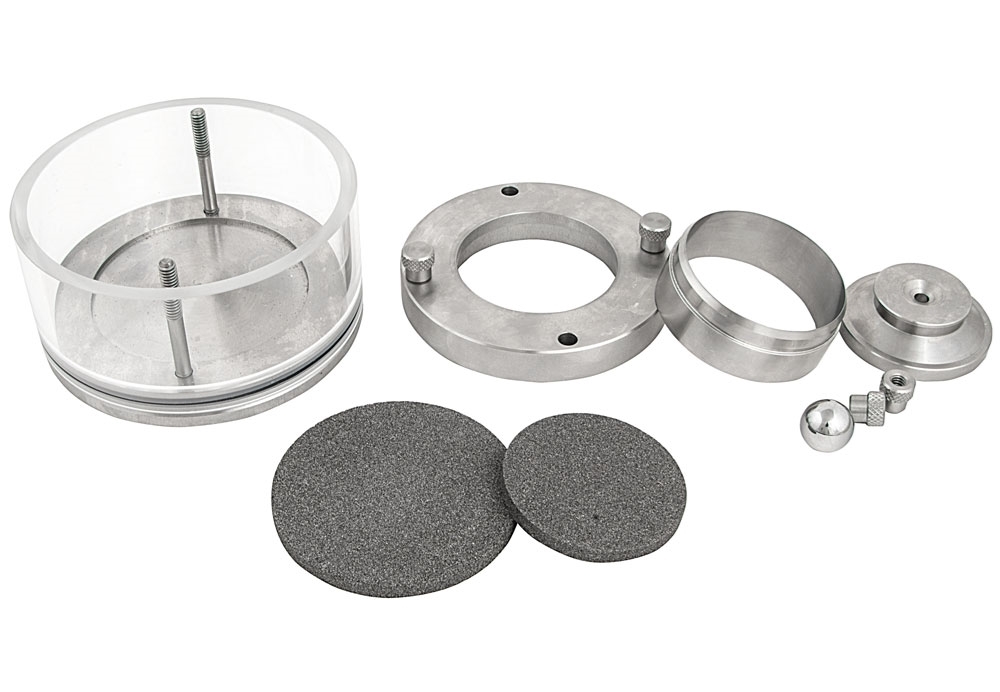

Included Items:

• Fixed Ring Consolidometer
• Cutting Sample Ring
• Two Porous Stones
• Loading Ball

Accessories:

• 1214-I 100mm Diameter Calibration Disc measures load frame deformation
• 1240-3I 100mm Diameter Cutting Sample Ring secures a soil sample for trimming to the required size for testing
• 50392014 3.92in Diameter Porous Stone, 0.25in Thick supports the end of a soil sample while allowing water passage
• 1220-6 Loading Ball provides a point of contact between the Consolidometer and the cross arm of the load frame
