2in Fixed Ring Consolidometer

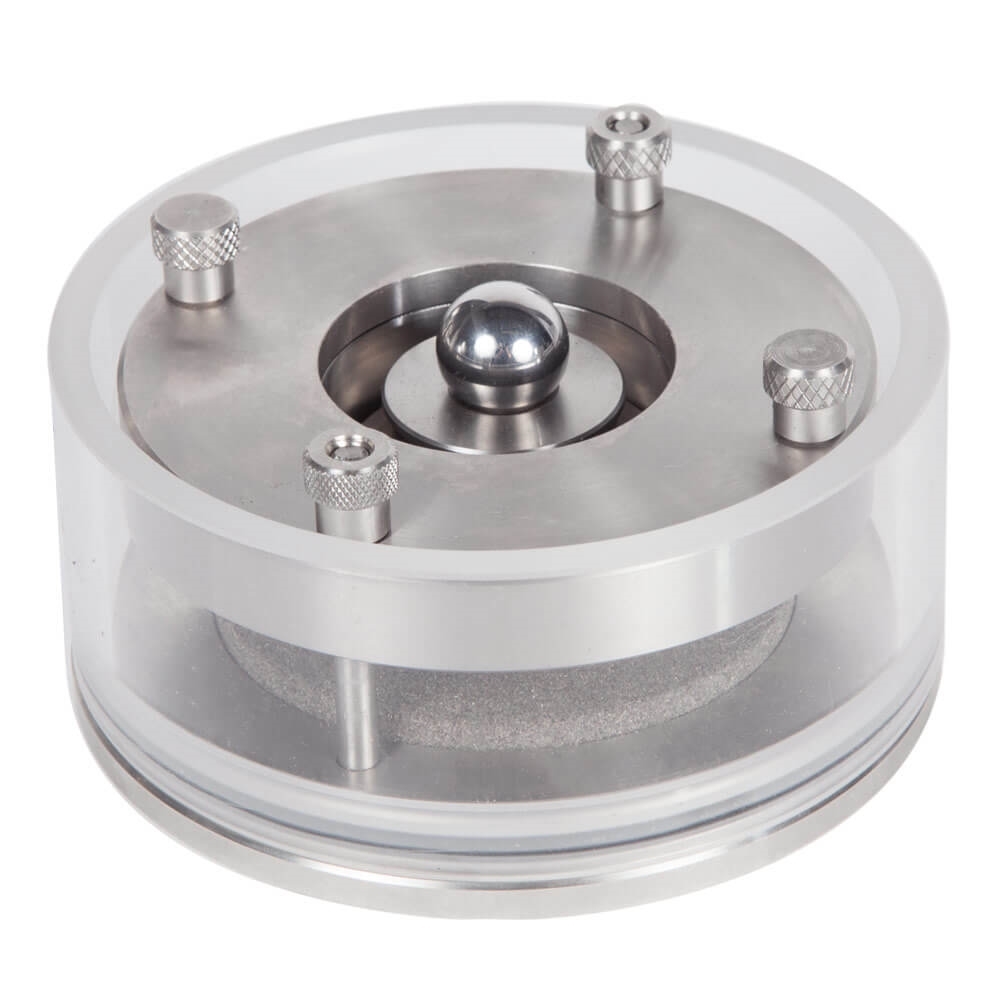

The 2in Fixed Ring Consolidometer is for specimens 2 x 0.75in (50.8 x 19mm) Dia. x H, and is equipped with an attached acrylic inundation ring, loading pad, and collar with lifting knobs. Other components include a cutting sample ring, 1.985in diameter top and 3.31in diameter bottom porous stones, and loading ball. Included components are also available as replacement products. For a listing of Consolidometers available from Karol-Warner, please visit our Consolidometers page.

Features:

• Durable, long-lasting stainless steel construction
• Collar has lifting knobs for easy specimen removal
• Compatible with most consolidation load frames

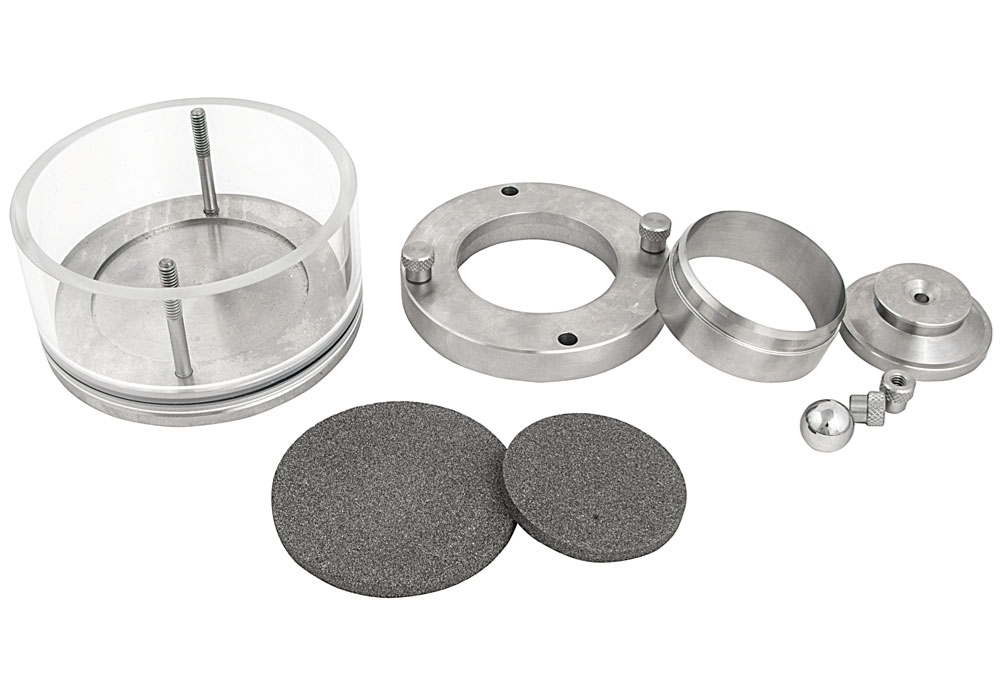

Included Items:

• Fixed Ring Consolidometer
• Cutting Sample Ring
• Two Porous Stones
• Loading Ball

Accessories:

• 1214-B 2in Diameter Calibration Disc measures load frame deformation
• 1240-3B 2in Diameter Cutting Sample Ring secures a soil sample for trimming to the required size for testing
• 50198514 1.985in Diameter Porous Stone, 0.25in Thick supports the end of a soil sample while allowing water passage
• 50331014 3.31in Diameter Porous Stone, 0.25in Thick supports the end of a soil sample while allowing water passage
• 1220-6 Loading Ball provides a point of contact between the Consolidometer and the cross arm of the load frame
