2in Floating Ring Consolidometer

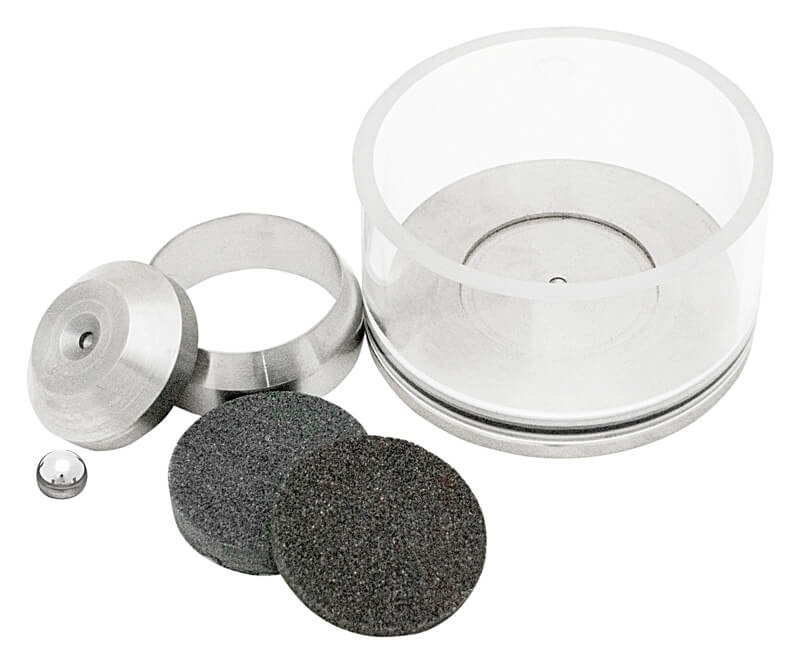

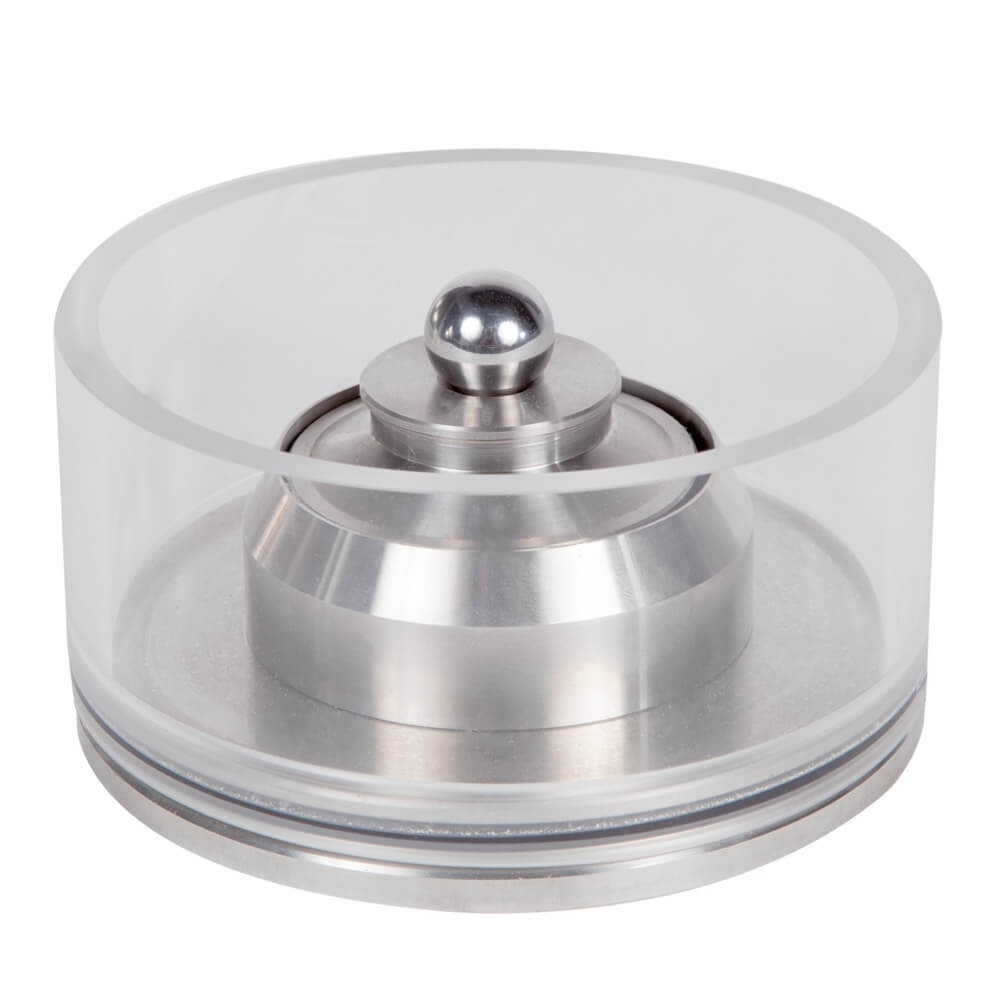

The 2in Floating Ring Consolidometer is for specimens 2 x 0.75in (50.8 x 19mm) Dia. x H. The unit comes with a stainless steel base w/ attached acrylic inundation ring, and a loading pad. Also included are a cutting sample ring, 1.985in diameter top and bottom porous stones (0.25 and 0.50in thick), and loading ball. Ordering additional components allows for more efficient sample preparation or use as a replacement part.

Features:

• Durable, long-lasting stainless steel construction
• Compatible with most consolidation load frames

Included Items:

• Floating Ring Consolidometer
• Cutting Sample Ring
• Two Porous Stones
• Loading Ball

Accessories:

• 1214-B 2in Diameter Calibration Disc measures load frame deformation
• 1240-3B 2in Diameter Cutting Sample Ring secures a soil sample for trimming to the required size for testing
• 50198514 1.985in Diameter Porous Stone, 0.25in Thick supports the end of a soil sample while allowing water passage
• 50198512 1.985in Diameter Porous Stone, 0.50in Thick supports the end of a soil sample while allowing water passage
• 1220-6 Loading Ball provides a point of contact between the Consolidometer and the cross arm of the load frame
