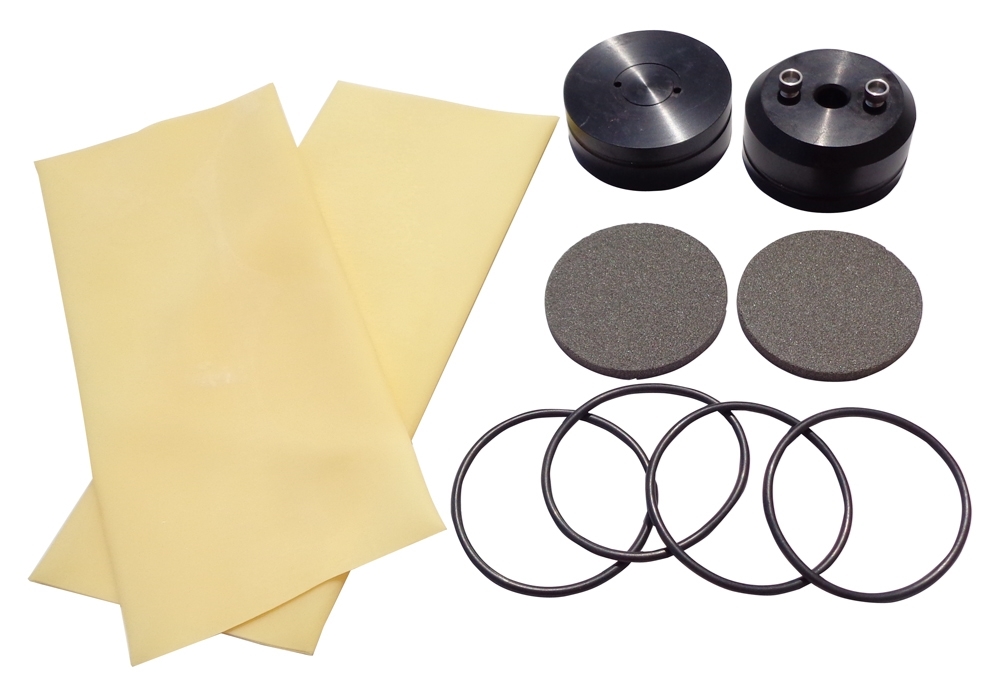

Test Cell Kits are required for use with Flexible Wall Permeability Cells and Triaxial Cells. Kit components are compatible with 2.42in (61.5mm) diameter samples and include an Anodized Aluminum Cap and Pedestal, two Aluminum Oxide Porous Stones, four Sealing O-Rings, and two Latex Membranes.
The Karol-Warner Compatibility Chart for Test Cell Accessories can help customers determine other size-specific products needed with test cells to prepare samples for triaxial or permeability testing.
- All-in-one kit outfits Test Cell (sold separately) with accessories for testing
- Precision machined from anodized aluminum
- One Cap
- One Pedestal
- Two 50242014 Aluminum Oxide Porous Stones
- Four 30241 Sealing O-Rings
- Two 302412 0.012in thick Latex Membranes
