    4in Test Cell Kit
    Triaxial Test Cell Kit

    4in Test Cell Kit

    34040
    $283.00
    • Description
    • Specifications
    • Questions?

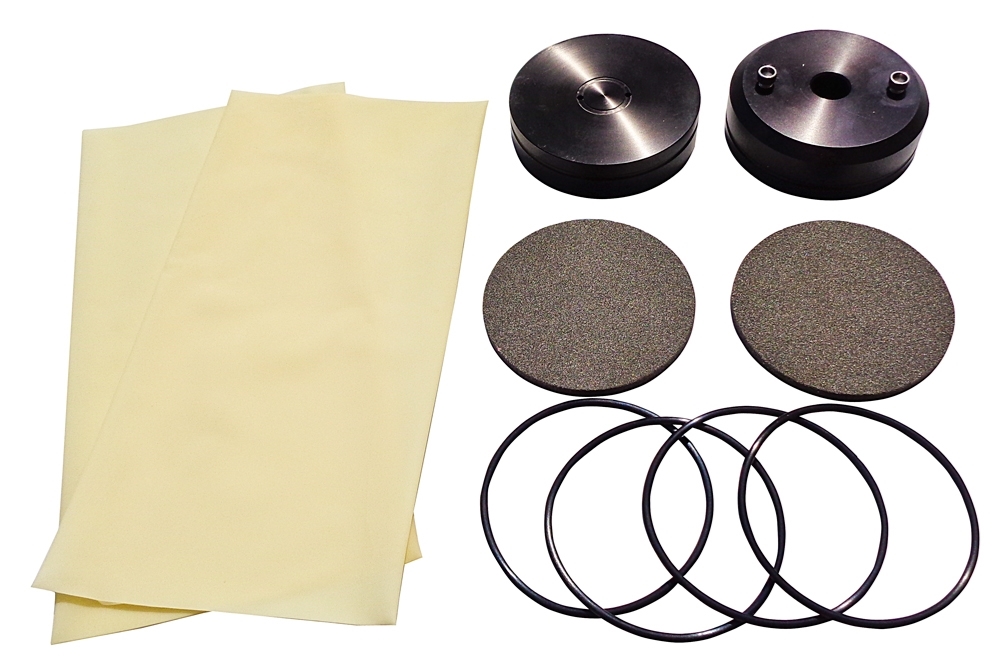

    Test Cell Kits are required for use with Flexible Wall Permeability Cells and Triaxial Cells. Kit components are compatible with 4.0in (101.6mm) diameter samples and include an Anodized Aluminum Cap and Pedestal, two Aluminum Oxide Porous Stones, four Sealing O-Rings, and two Latex Membranes.

    The Karol-Warner Compatibility Chart for Test Cell Accessories can help customers determine other size-specific products needed with test cells to prepare samples for triaxial or permeability testing.

    Features:

    • All-in-one kit outfits Test Cell (sold separately) with accessories for testing
    • Precision machined from anodized aluminum

    Included Items:

    • One Cap
    • One Pedestal
    • Two 50400014 Aluminum Oxide Porous Stones
    • Four 30401 Sealing O-Rings
    • Two 304012 0.012in thick Latex Membranes
    Specimen Size 4.0in (101.6mm)
    Estimated Shipping Weight 4.0lb (1.81kg)
