    • Home /
    • Soils /
    • Triaxial Shear Strength /
    • Sample Preparation /
    • Adjustable Soil Sample Trimmers
    1 - 3in Diameter Adjustable Soil Sample Trimmer shown with Top Platen (Platen sold separately)
    1 - 3in Diameter Adjustable Soil Sample Trimmer shown with Top Platen (Platen sold separately)

    Adjustable Soil Sample Trimmers

    Meets Standard(s)
    • AASHTO T 208,
    • AASHTO T 216,
    • AASHTO T 236,
    • AASHTO T 258,
    • AASHTO T 296,
    • ASTM D2166,
    • ASTM D2435,
    • ASTM D2850,
    • ASTM D3080,
    • ASTM D4186,
    • ASTM D4546,
    • ASTM D4767,
    • ASTM D5084

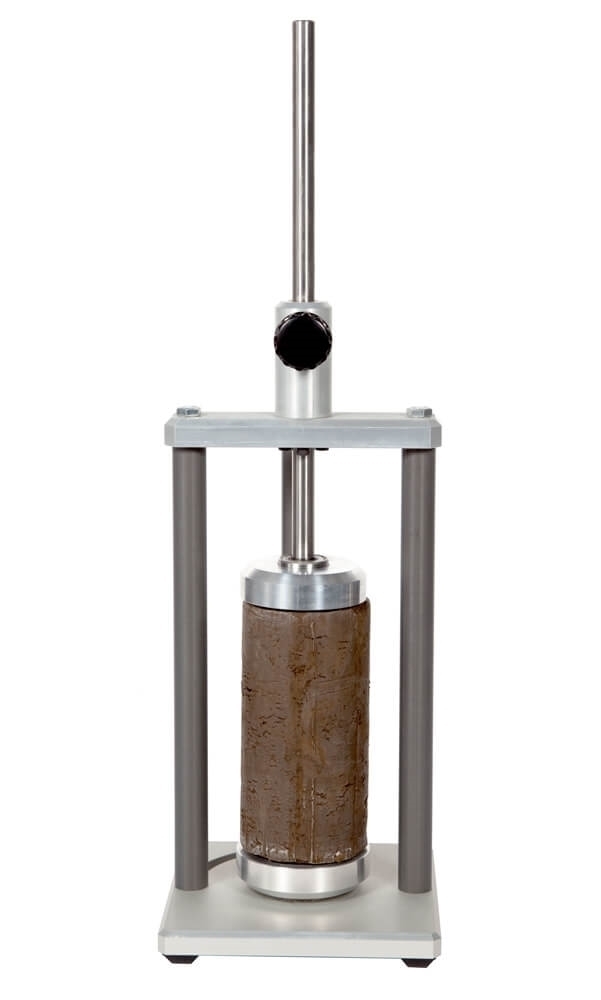

    1 - 3in Diameter Adjustable Soil Sample Trimmer shown with Top Platen (Platen sold separately)Adjustable Soil Sample TrimmersAdjustable Soil Sample Trimmer shown with Top Platen and sample (Platen sold separately)
    3in Diameter Adjustable Soil Sample Trimmer shown with Platen

    1 - 3in Diameter Adjustable Soil Sample Trimmer

    3130
    $335.00
    4in Diameter Adjustable Soil Sample Trimmer shown without Platen

    1 - 4in Diameter Adjustable Soil Sample Trimmer

    3140
    $381.00
    • Description
    • Specifications
    • Video
    • Questions?

    Adjustable Soil Sample Trimmers are paired with a wire saw to trim soil samples to exact diameters. Trimmers are adjustable with a 1 to 4in range based on the size of the top platen. The sample is centered on the bottom platen, and the top platen assembly is lowered and locked into place. Small cuts are made with a trimming knife or wire saw as the specimen is rotated to present fresh surfaces for trimming.  Both the pedestal and top platen contain stainless steel pins to keep a firm grip on the sample while it is trimmed with the wire saw (purchased separately). The trimming guide allows for cuts to a precise diameter.

    1 - 3in Diameter Adjustable Soil Sample Trimmer covers most common soil sample diameters from 1 to 3in (25 to 76mm) diameter and up to 7.5in (190mm) in length. Interchangeable Top Platens are available separately in varying diameters, and one is required for use.

    1 - 4in Diameter Adjustable Soil Sample Trimmer is needed for larger specimens up to 4in (101.6mm) diameter and 9.75in (247.7mm) long. Interchangeable Top Platens are available separately in varying diameters, and one is required for use.

    Inquire for Top Platen sizes not shown.

    Features:

    • Available in 1 - 3in or 1 - 4in ranges
    • Adjustable to exact diameters based on top platen used
    • Stainless steel pins on the top platen and pedestal hold the sample firmly in place
    • Sealed cartridge bearings with zero side play for precision trimming

    Included Items:

    • 1 - 3in Adjustable Soil Sample Trimmer or
      1 - 4in Adjustable Soil Sample Trimmer

    Accessories:

    • 31075 Open End Wire Saw has a deep throat and is used for trimming soil samples
    • Top Platens for Adjustable Soil Sample Trimmers hold specimens in place for trimming and are available in sizes from 1 to 4in
    Product Dimensions

    Model 3130: 6 x 6 x 14in (152 x 152 x 356mm) WxDxH

    Model 3140: 6 x 6 x 16in (152 x 152 x 406.4mm) WxDxH

    Estimated Shipping Weight

    3130: 6.0lb (2.72kg)

    3140: 7.0lb (3.18kg)

    Please enter your questions/comments and contact information below. A Karol-Warner customer service representative will respond during business hours (8am - 5pm EST, Monday through Friday).

    Accessories
    Open End Wire Saw

    Open End Wire Saw

    $28.00
    1.4in Top Platen for Adjustable Soil Sample Trimmer shown

    Top Platens for Adjustable Soil Sample Trimmers

    From $37.00
