Adapter Ring and Extruder Disc Sets for Sample Ejectors

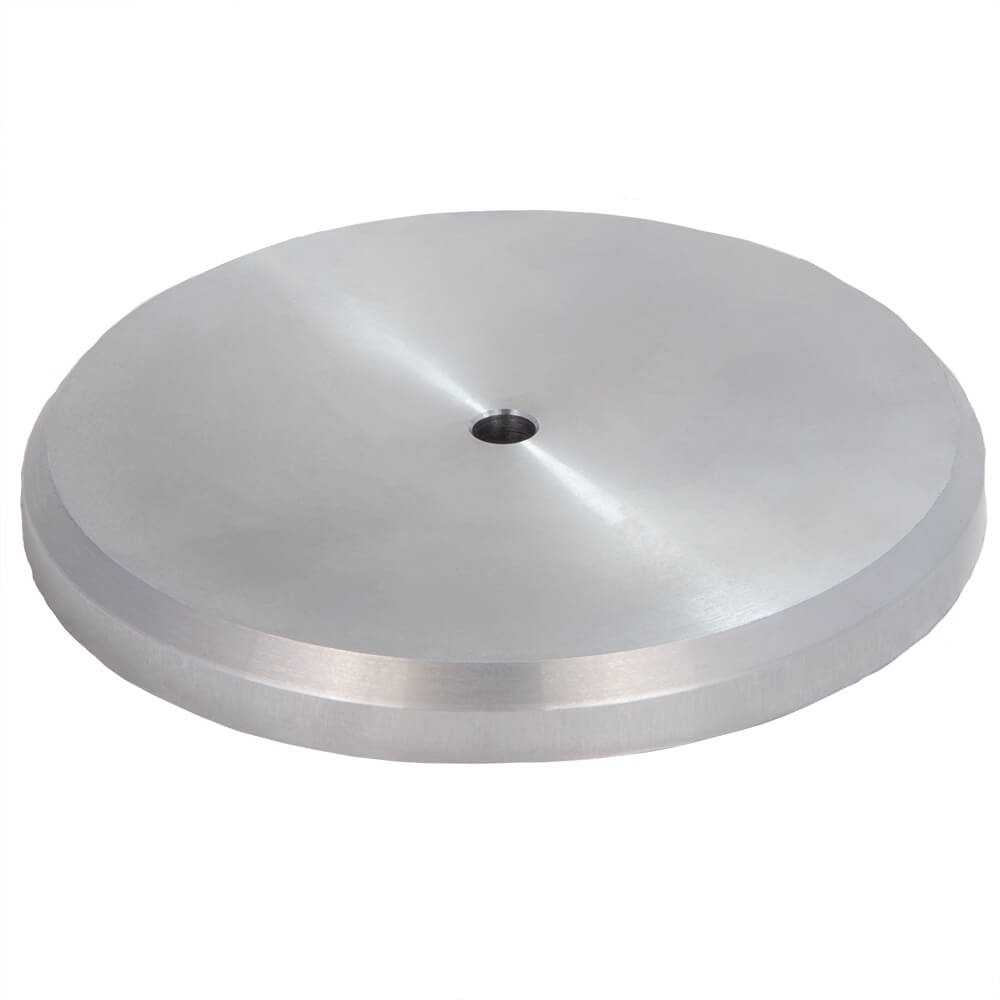

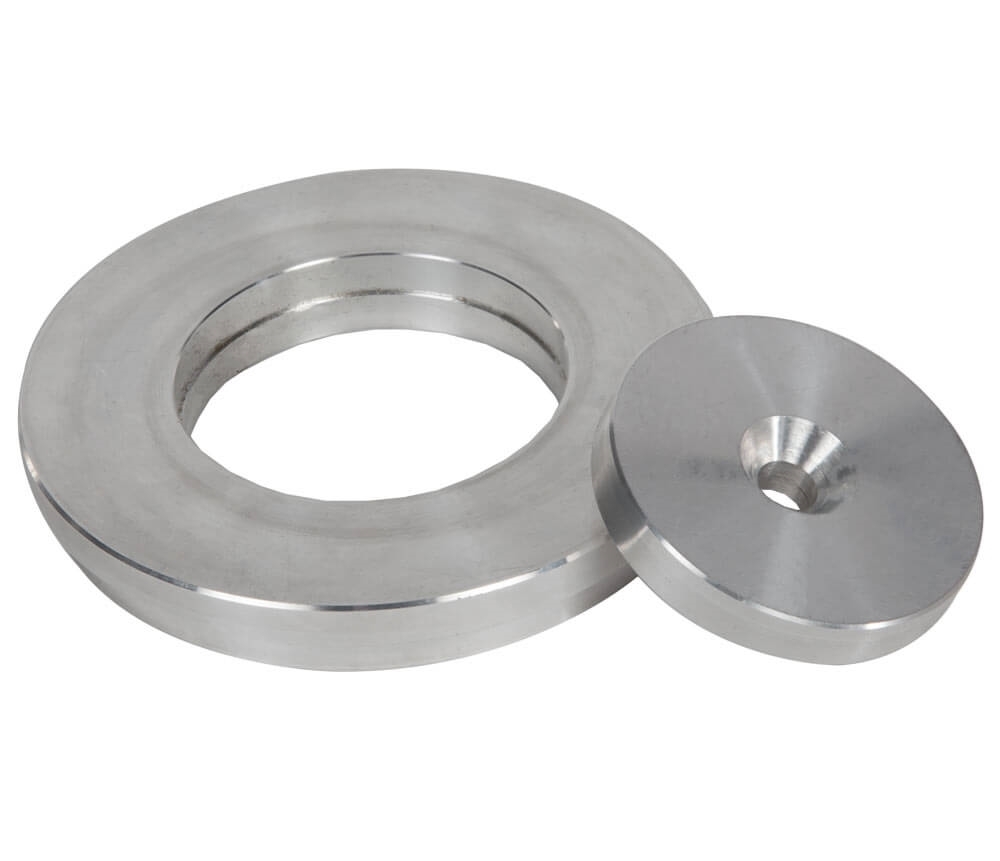

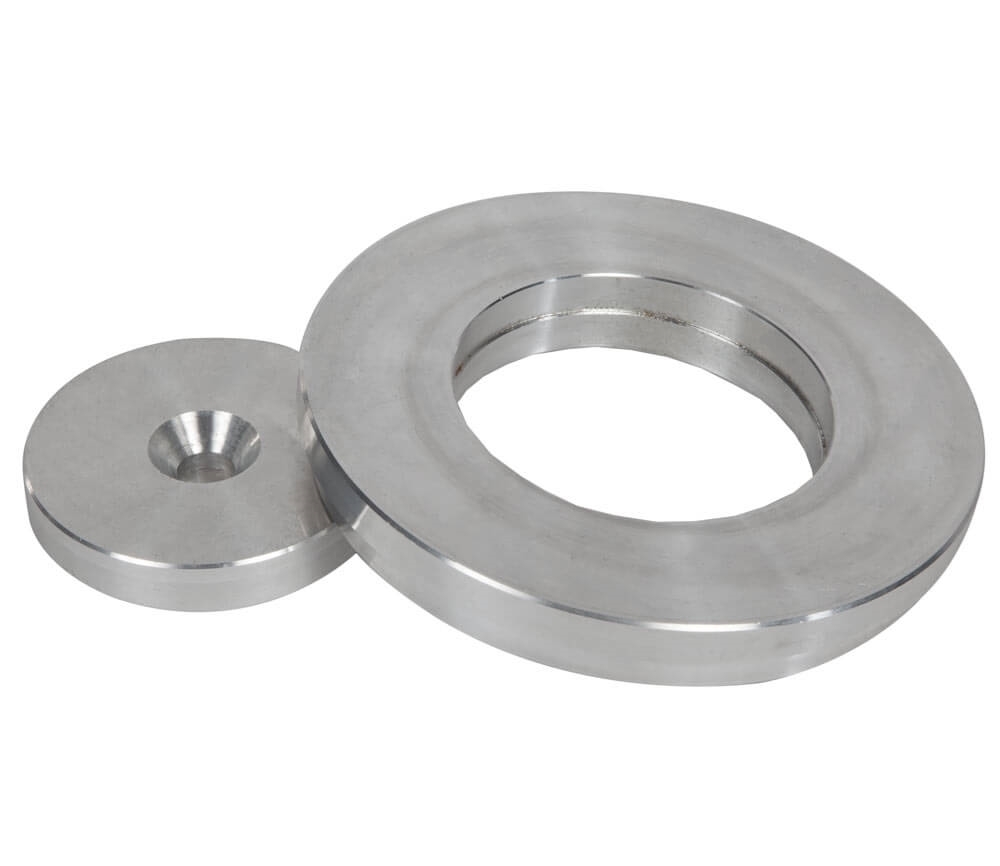

Karol-Warner Adapter Rings and Extruder Discs are used with Sample Ejectors and are easily interchangeable to suit a range of sample sizes for soil and asphalt specimen extrusion. Sets are available in 2, 2.5, 3, or 4in (51, 64, 76, or 102mm) diameters. Each set contains one Adapter Ring and one Extruder Disc. The 4in set and the 6in (152mm) Extruder Disc can be ordered as replacement items for the 4in and 6in Sample Ejectors.

Features:

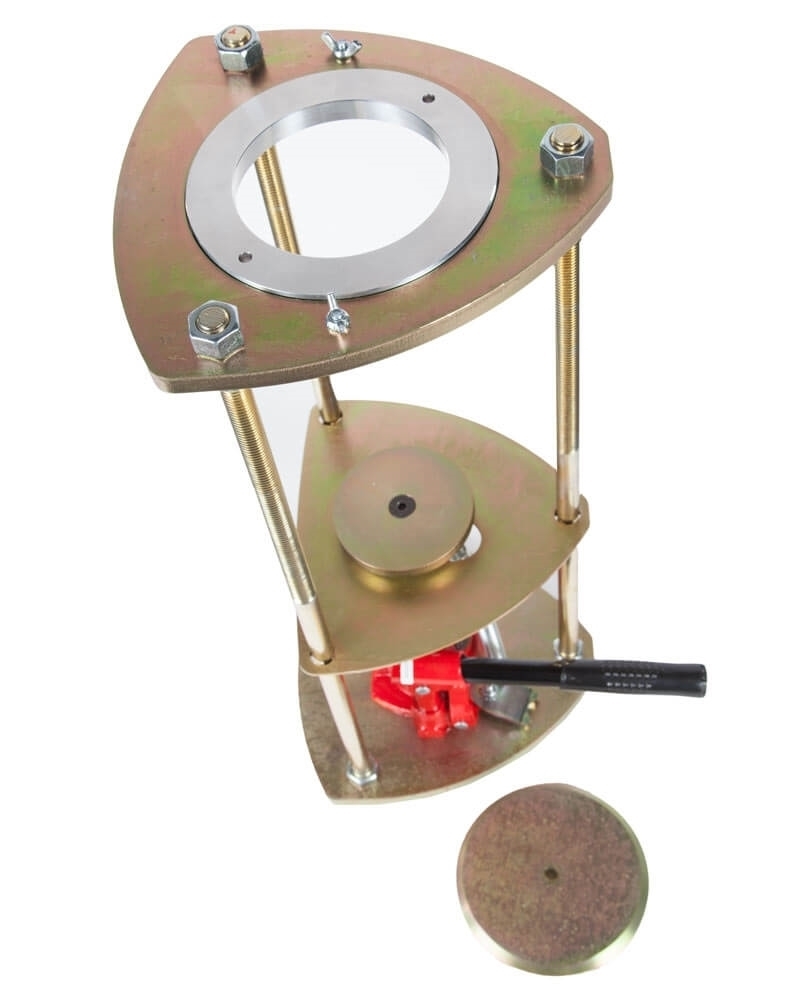

• Allows extrusion of smaller sample sizes in 4in and 6in Sample Ejectors
• Quick-change of rings and discs

Included Items:

• One Adapter Ring (model 8416 does not include an Adapter Ring)
• One Extruder Disc
• Clamping plates with screws and wing nuts
