    Aggregate Washers
    Aggregate Washers

    Aggregate Washers

    • Product Manual Product Manual
    Meets Standard(s)
    • AASHTO T 11,
    • ASTM C117,
    • ASTM D1140

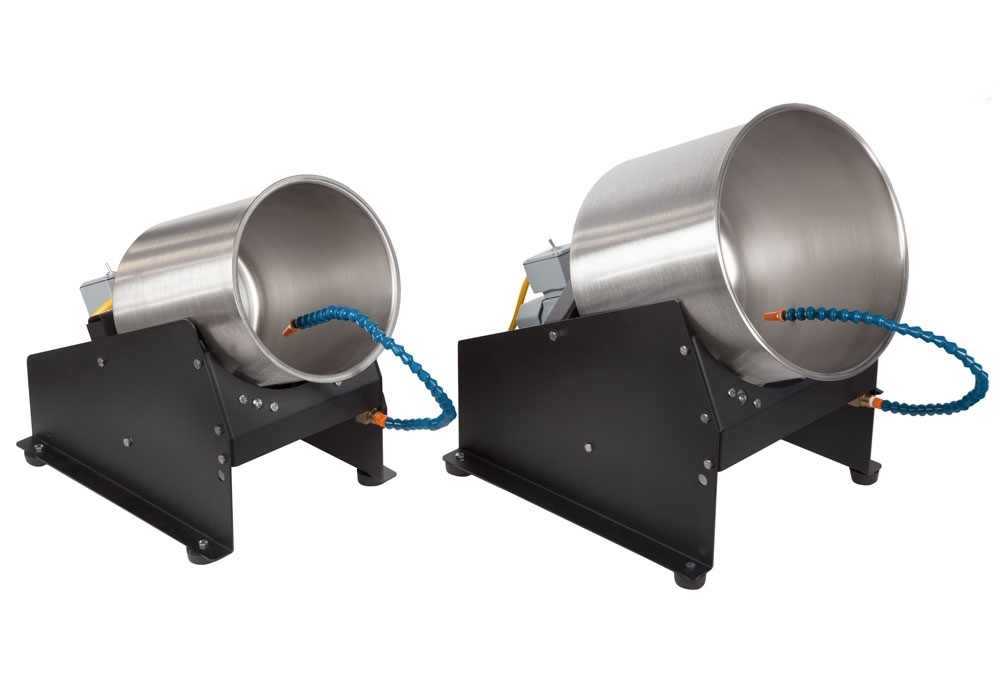

    Aggregate WashersLarge Aggregate WasherSmall Aggregate WasherLarge Aggregate Washer's 12 x 13in (304 x 330mm) stainless steel drumSmall Aggregate Washer's 9 x 10.75in (229 x 273mm)  stainless steel drumVacuum Lid on Wash Drum for Small Aggregate Washer (Drum and Lid sold separately)Vacuum Lid for Small Aggregate Washer Drum (Lid sold separately)360 Image of 9075360 Image of 9050
    Large Aggregate Washer (115V / 60Hz)

    Large Aggregate Washer (115V / 60Hz)

    9075
    $1,600.00
    Large Aggregate Washer (230V / 50Hz)

    Large Aggregate Washer (230V / 50Hz)

    9075F
    $1,730.00
    Small Aggregate Washer (115V / 60Hz)

    Small Aggregate Washer (115V / 60Hz)

    9050
    $950.00
    Small Aggregate Washer (230V / 50Hz)

    Small Aggregate Washer (230V / 50Hz)

    9050F
    $1,140.00
    • Description
    • Specifications
    • Video
    • Questions?

    Aggregate Washers save time and effort associated with manual methods of washing aggregate samples. The units feature a flexible gooseneck water nozzle allowing for easy removal of the stainless steel drum.

    The Aggregate Washer gently agitates a sample while water supplied through an existing water line is fed into the bucket through the flexible nozzle. Overflow is directed over a No. 200 sieve (purchased separately) to prevent the loss of oversized material. Once the aggregate and water mixture run clear, fines have been sufficiently removed from the sample.

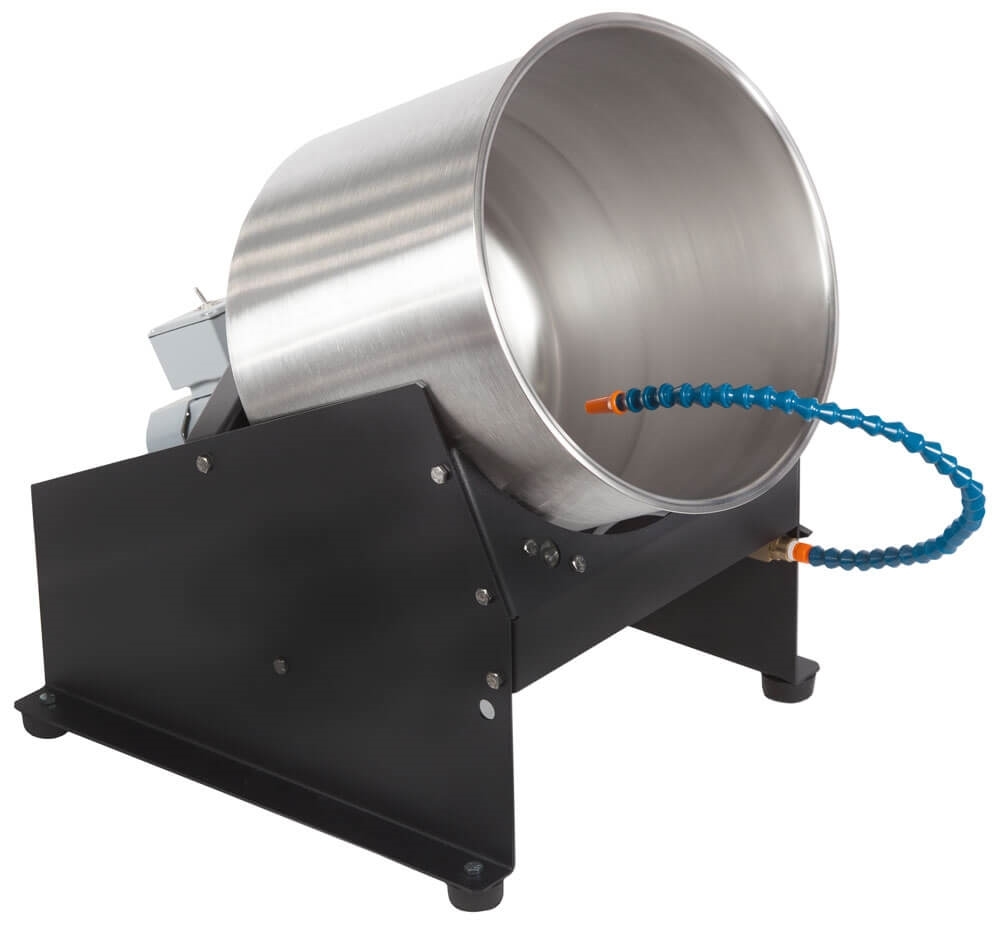

    Model 9075 (or 9075F) processes samples up to 15lb (7kg) and utilizes a 12 x 13in (304 x 330mm) stainless steel drum.

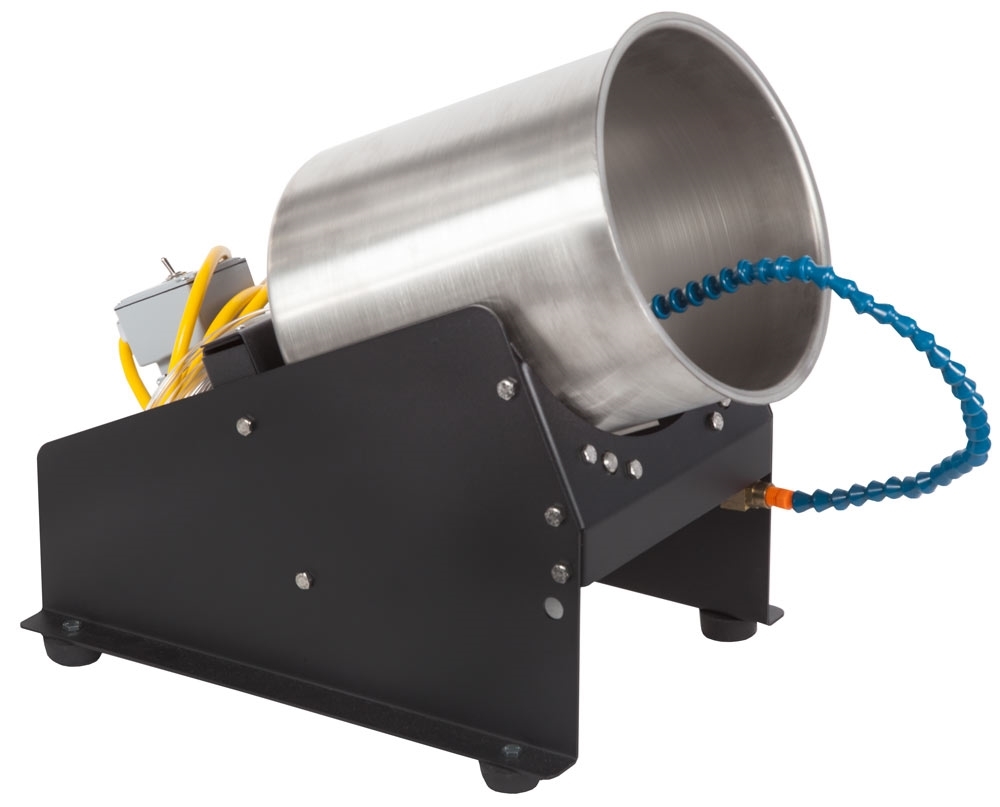

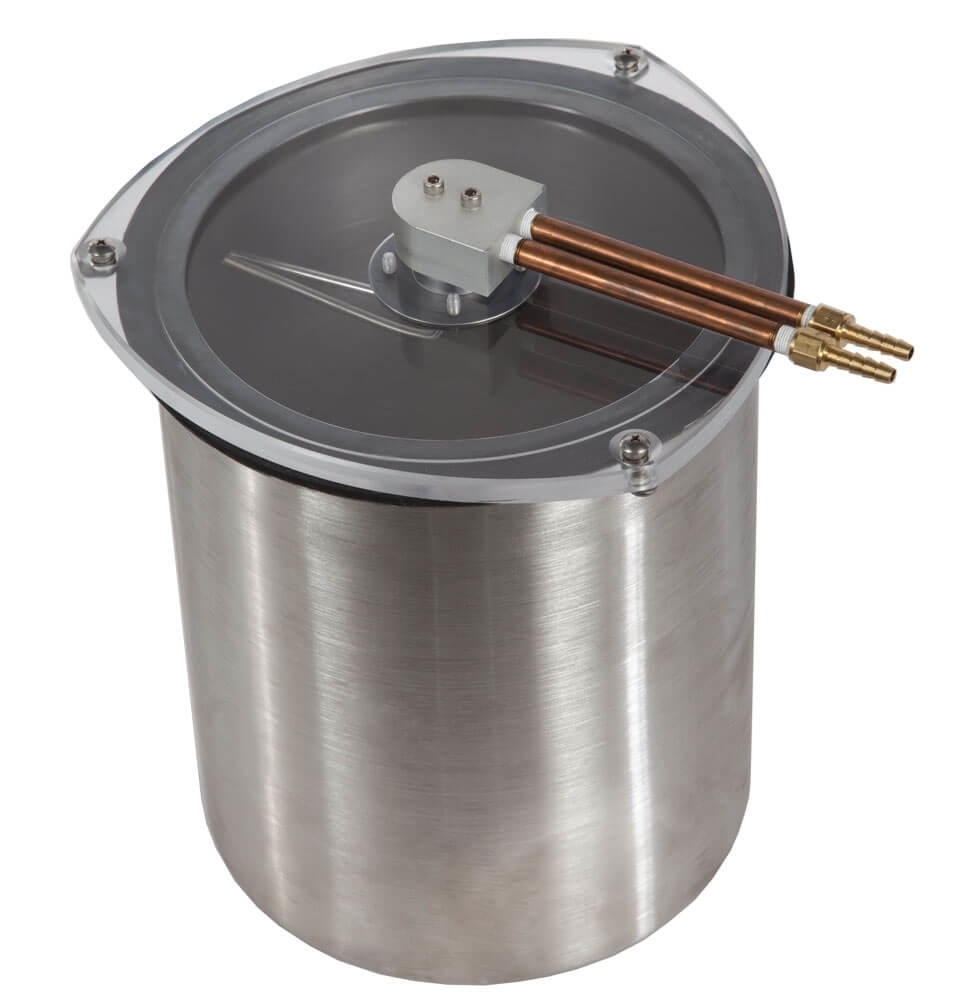

    Model 9050 (or 9050F) is compact, portable, and convenient. The unit is ideal for processing samples up to 8lb (3.6kg) using the 9 x 10.75in (229 x 273mm) stainless steel drum. The drum can function as a vacuum pycnometer using a Vacuum Lid (sold separately).

    Features:

    • Efficient sample preparation
    • Ideal for tabletop operation
    • Non-slip rollers for drum rotation
    • Flexible gooseneck water nozzle allows easy drum removal
    • Fully-enclosed gear motor
    • 6ft (1.8m) safety power cord with built-in GFCI

    Included Items:

    • Aggregate Washer
      • Stainless steel drum
      • Self-piercing saddle valve
      • 1/4in ID clear vinyl tubing (15ft)

    Accessories:

    • Wash Drums for Aggregate Washers are included, and additional drums can be ordered to increase efficiency

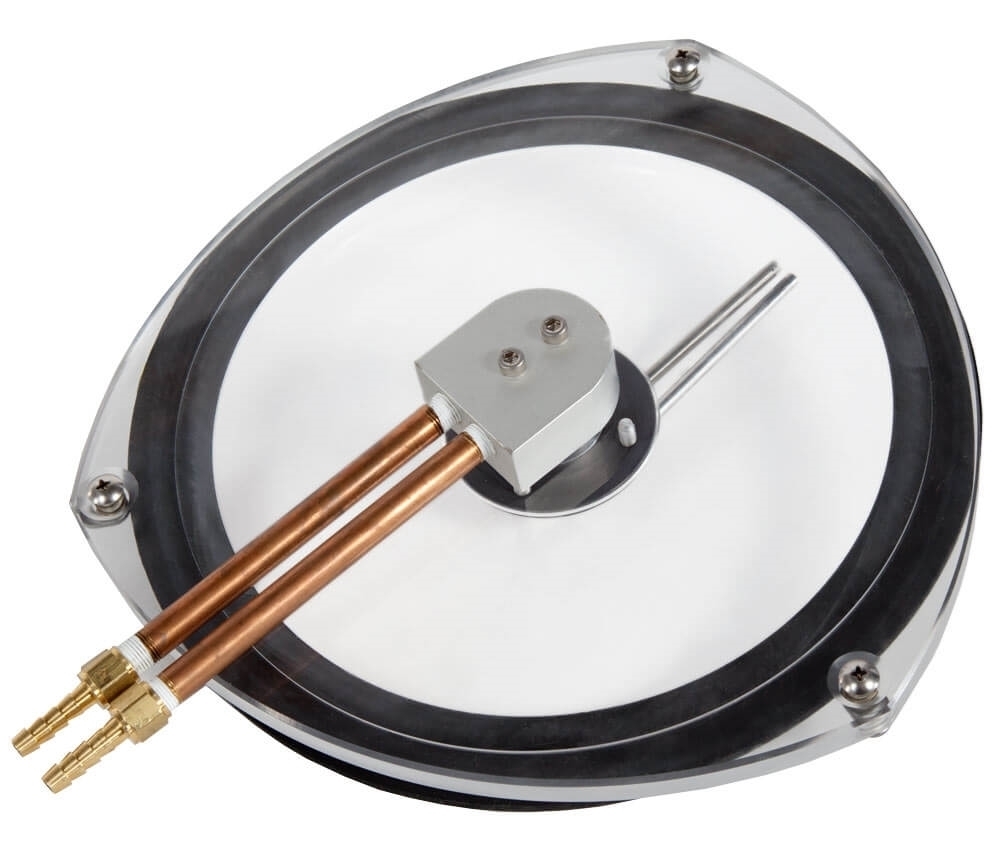

    • 9055 Vacuum Lid allows the Wash Drum for Small Aggregate Washer to function as a vacuum pycnometer for deairing
    Specimen Size

    Models 9075 and 9075F: 15lb (7kg) maximum

    Models 9050 and 9050F: 8lb (3.6kg) maximum

    Product Dimensions

    Models 9075 and 9075F: 24 x 20 x 27in (610 x 508 x 686mm) WxDxH

    Models 9050 and 9050F: 19 x 16 x 22in (482 x 406 x 559mm) WxDxH

    Estimated Shipping Weight

    9075: 50.0lb (22.68kg)

    9075F: 50.0lb (22.68kg)

    9050: 34.0lb (15.42kg)

    9050F: 34.0lb (15.42kg)

    Please enter your questions/comments and contact information below. A Karol-Warner customer service representative will respond during business hours (8am - 5pm EST, Monday through Friday).

    Accessories

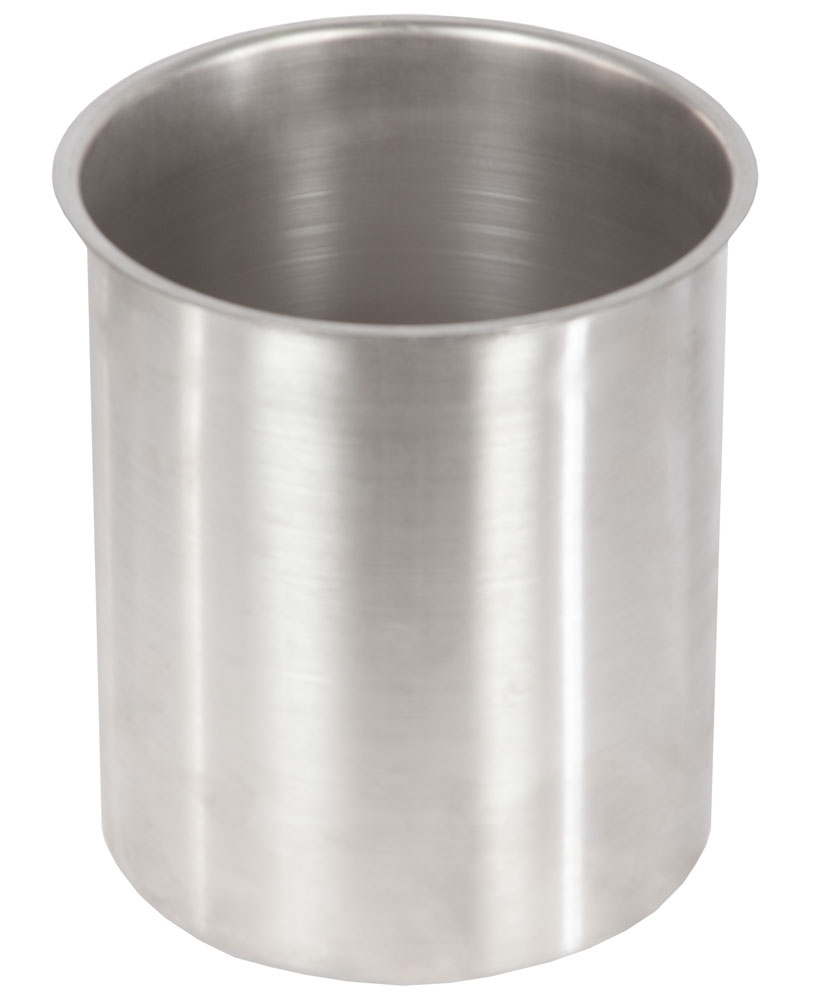

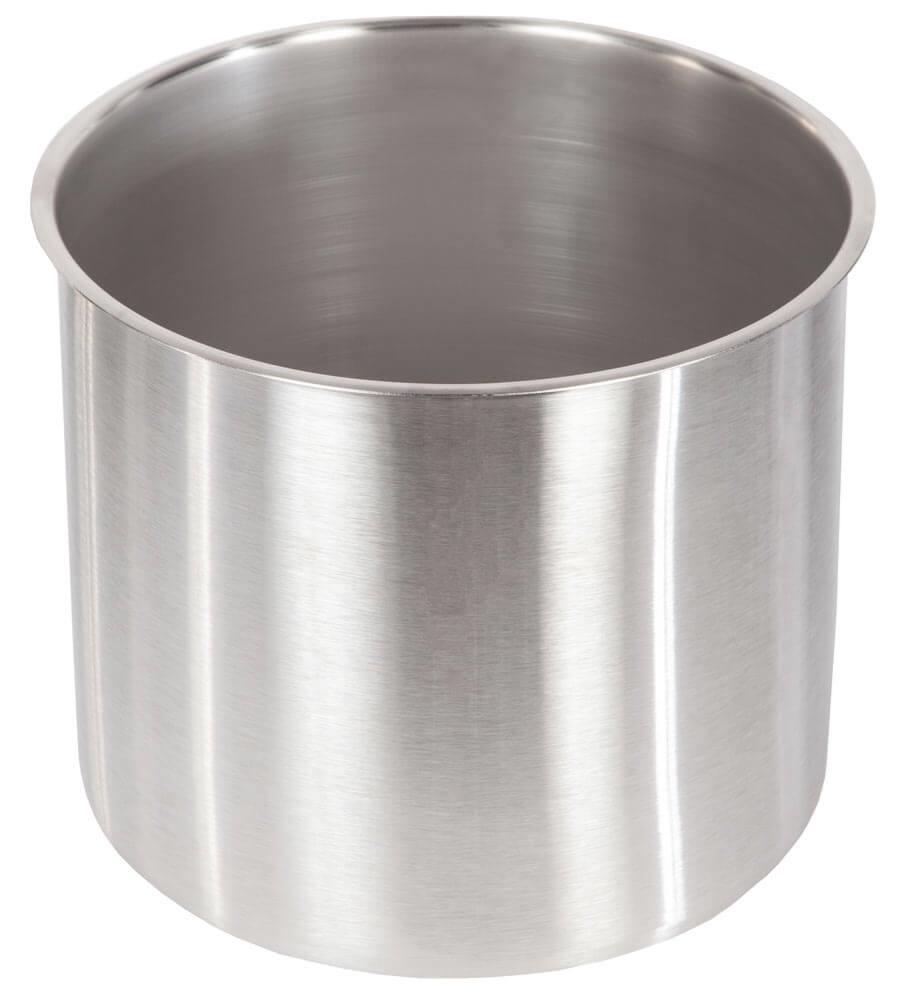

    Stainless steel drums for Large and  Small Aggregate Washer (Aggregate Washer sold separately)

    Wash Drums for Aggregate Washers

    From $72.00
     Vacuum Lid for Wash Drum for Small Aggregate Washer

    Vacuum Lid

    $440.00
