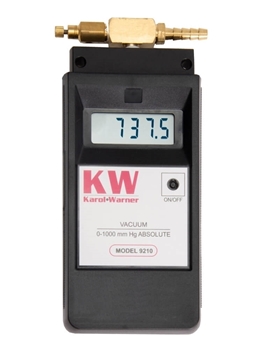

    Digital Residual Pressure Manometer
    Digital Residual Pressure Manometer

    Digital Residual Pressure Manometer

    • Product ManualProduct Manual
    Meets Standard(s)
    • AASHTO T 209,
    • ASTM D2041

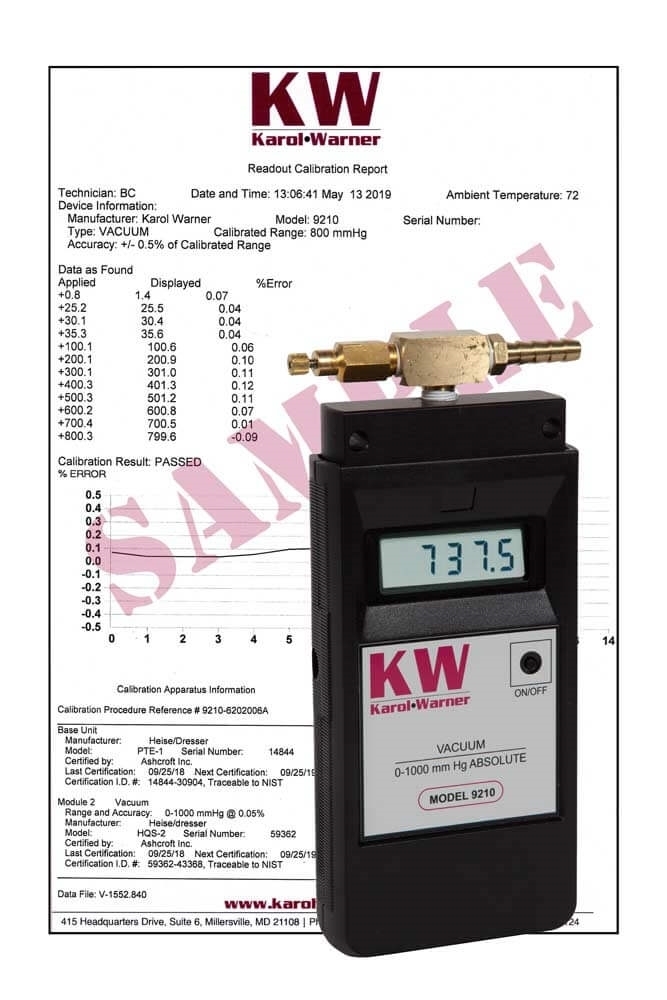

    Digital Residual Pressure ManometerNIST Certified Digital Residual Pressure Manometer
    Digital Absolute Pressure Manometer

    Digital Residual Pressure Manometer (115V / 60Hz)

    9210
    $390.00
    Digital Absolute Pressure Manometer

    Digital Residual Pressure Manometer (230V / 50Hz)

    9210F
    $435.00
    Digital Residual Pressure Manometer, NIST Certified (115V / 60Hz)

    Digital Residual Pressure Manometer, NIST Certified (115V / 60Hz)

    9210T
    $465.00
    Digital Residual Pressure Manometer, NIST Certified (230V / 50Hz)

    Digital Residual Pressure Manometer, NIST Certified (230V / 50Hz)

    9210FT
    $515.00
    • Description
    • Specifications
    • Video
    • Questions?

    Digital Residual Pressure Manometer is a mercury-free, eco-friendly alternative for vacuum pressure measuring during lab applications. The manometer meets test standards AASHTO T 209 and ASTM D2041 to measure Theoretical Maximum Specific Gravity and Density of Asphalt Mixtures (Rice Test).

    Accurate to ±0.5% of full scale, the precision gauge utilizes an absolute pressure transducer to provide instantaneous readings of applied vacuum from 0 to 1,000mm Hg on a digital display with 0.1mm resolution. The Manometer is powered by either a 9V battery or AC adapter, both included. This unit also includes a 0.25in (6.35mm) hose barb connection with a needle valve for vacuum tubing.

    Models with NIST calibration certification meet AASHTO T 209 method.

    Features:

    • Mercury-free for safe Asphalt Bulk Specific Gravity (Rice) Tests
    • Power-saving auto-shutoff in battery mode
    • Optional NIST traceable multi-point certificate

    Included Items:

    • Digital Residual Pressure Manometer
    • NIST certification (for models 9210T and 9210FT)
    • 9V battery
    • AC adapter
    • Hose barb connection with needle valve

    Accessories:

    • 9210-CA NIST Calibration Certification is available for calibrating or recalibrating the manometers, units are calibrated at 25, 30, and 35mm Hg on NIST traceable equipment
    Accuracy Up to ±0.5% of full scale
    Resolution 0.1mm
    Display Digital
    Electrical 115V / 60Hz or 230V / 50Hz
    Power Requirements 9V battery or AC adapter
    Product Dimensions 3.1 x 6.5 x 1.18in (78.7 x 165.1 x 30mm) WxDxH
    Estimated Shipping Weight 2.0lb (0.91kg)

    Please enter your questions/comments and contact information below. A Karol-Warner customer service representative will respond during business hours (8am - 5pm EST, Monday through Friday).

    Accessories
    NIST Calibration Certificate for Digital Residual Pressure Manometer (shown with 9210)

    NIST Calibration Certification for Residual Pressure Manometer

    $80.00
