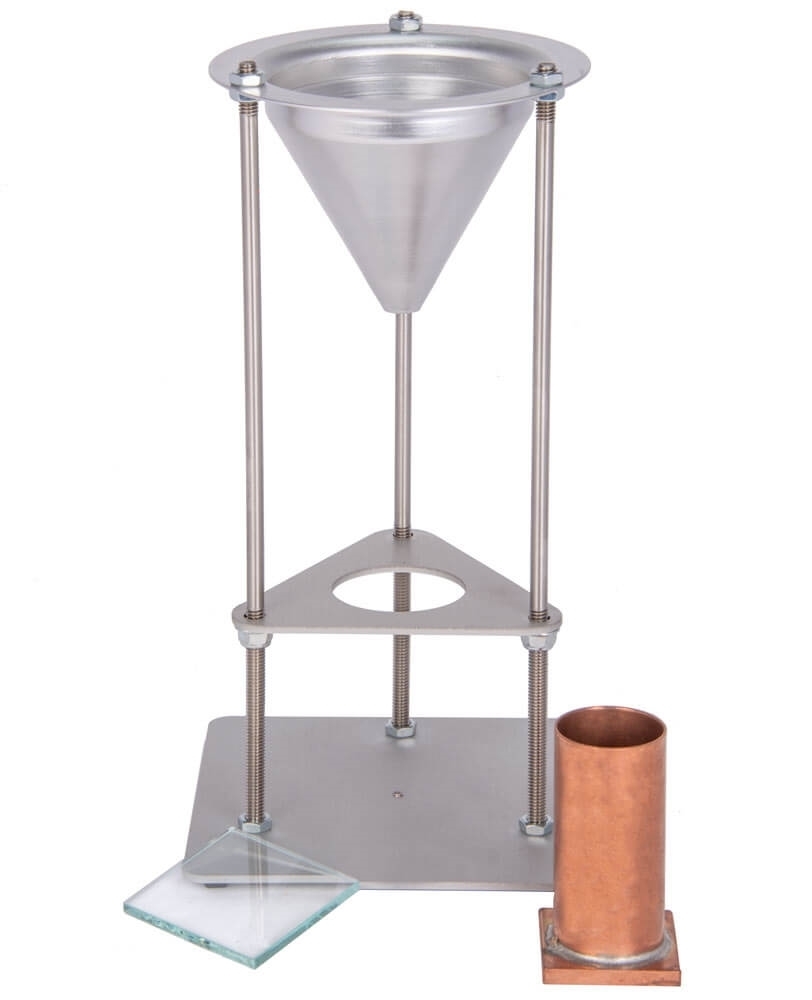

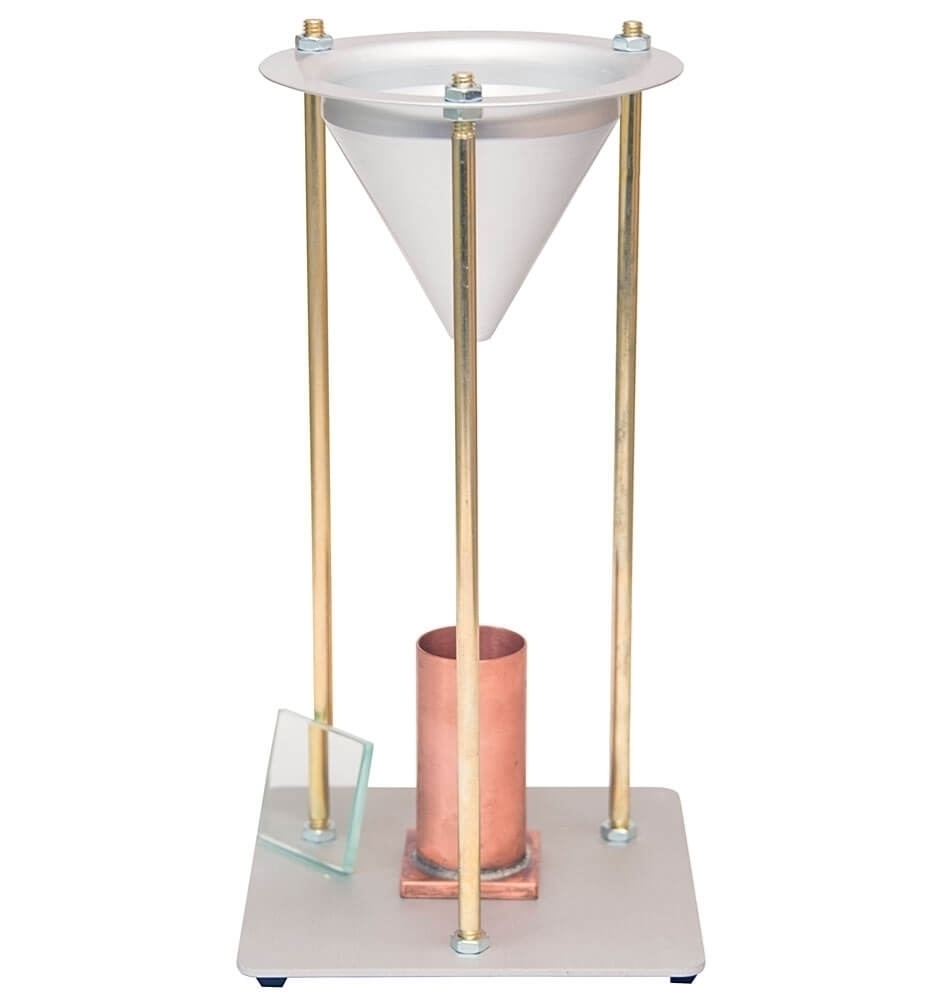

    Fine Aggregate Angularity Apparatus
    Fine Aggregate Angularity Apparatus

    Fine Aggregate Angularity Apparatus

    • Product ManualProduct Manual for 9102
    Meets Standard(s)
    • AASHTO T 304,
    • ASTM C1252
    Fine Aggregate Angularity ApparatusFine Aggregate Angularity Apparatus360 Image of 9102
    Fine Aggregate Angularity Apparatus

    Fine Aggregate Angularity Apparatus

    9102
    $110.00
    Fine Aggregate Angularity Apparatus with Strike-Off Guide

    Fine Aggregate Angularity Apparatus with Strike-Off Guide

    9102-DJM
    $140.00
    • Description
    • Specifications
    • Questions?

    Fine Aggregate Angularity Apparatus is used to determine the loose uncompacted void content of aggregate. This testing method provides an indication of aggregate spherical shape, angularity, and workability within a mixture. Test sample is mixed until homogeneous and poured into the funnel of the device while the funnel stem is blocked. The sample is then released into the 100mL Copper Cylindrical Measure. Excess aggregate is then struck from the top of the measure.

    Any disturbance during this striking process that would cause compaction of the aggregate must be avoided for accurate test results. Model 9102-DJM includes a strike-off guide for more precise striking of excess sample. Once the material is leveled, the sample is weighed to determine the mass. Void content can then be calculated.

    Features:

    • Locating pin on the funnel stand reduces time between tests
    • Strike-off guide (included with model 9102-DJM) increases repeatability
    • Supports ASTM and AASHTO specifications

    Included Items:

    • Fine Aggregate Angularity Apparatus
      • Stand with funnel
      • Copper Cylindrical Measure
      • Glass Plate
      • Strike-off guide (model 9102-DJM only)

    Accessories:

    • 9103 Copper Cylindrical Measure
    • 9105 Glass Plate
    Product Dimensions 8 x 8 x 14.5in (203 x 203 x 368mm) WxDxH
    Estimated Shipping Weight 3.0lb (1.36kg)

    Please enter your questions/comments and contact information below. A Karol-Warner customer service representative will respond during business hours (8am - 5pm EST, Monday through Friday).

    Accessories
    Copper Cylindrical Measure

    Copper Cylindrical Measure

    $32.00
    Glass Plate

    Glass Plate

    $7.00
