    Rotary Sifter
    Rotary Sifter

    Rotary Sifter

    Rotary SifterRotary SifterRotary SifterRotary Sifter
    Rotary Sifter (115V / 60Hz)

    Rotary Sifter (115V / 60Hz)

    0500-5520
    $2,195.00
    Rotary Sifter (230V / 50Hz)

    Rotary Sifter (230V / 50Hz)

    0500-5520F
    $2,398.00
    • Description
    • Specifications
    • Questions?

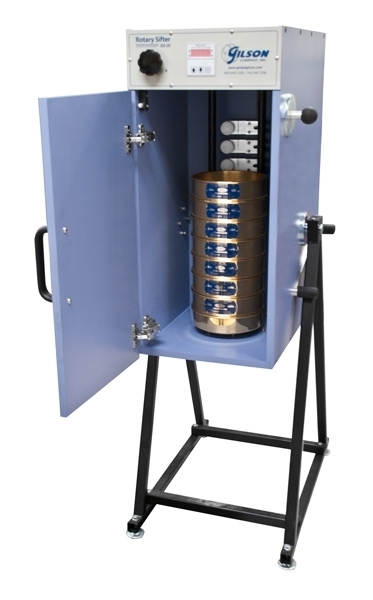

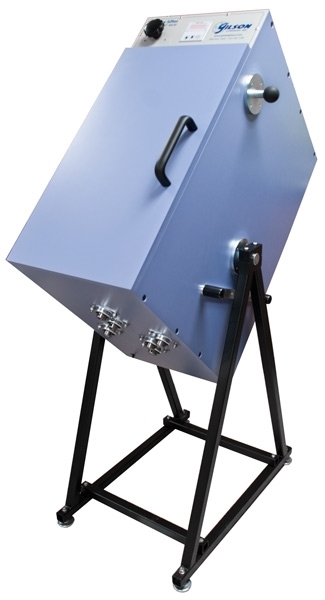

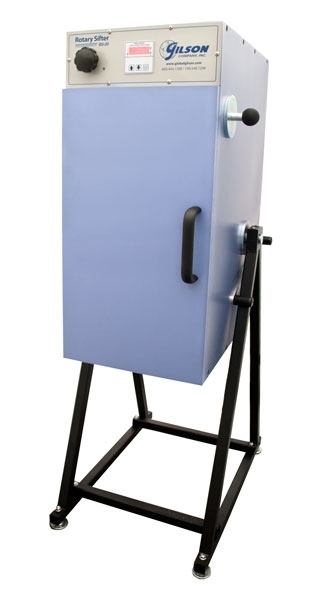

    Rotary Sifter from Gilson Company is an improved design of the classic rotary sifter and is well-suited for granular materials from No. 4 to No. 635 (4.75mm to 20µm) particle size. Sieve stacks from 6 12in full height to 20 8in half-height sieves plus pan are placed inside the cabinet, which is tilted back for operation using a convenient side knob. No clamping is required.

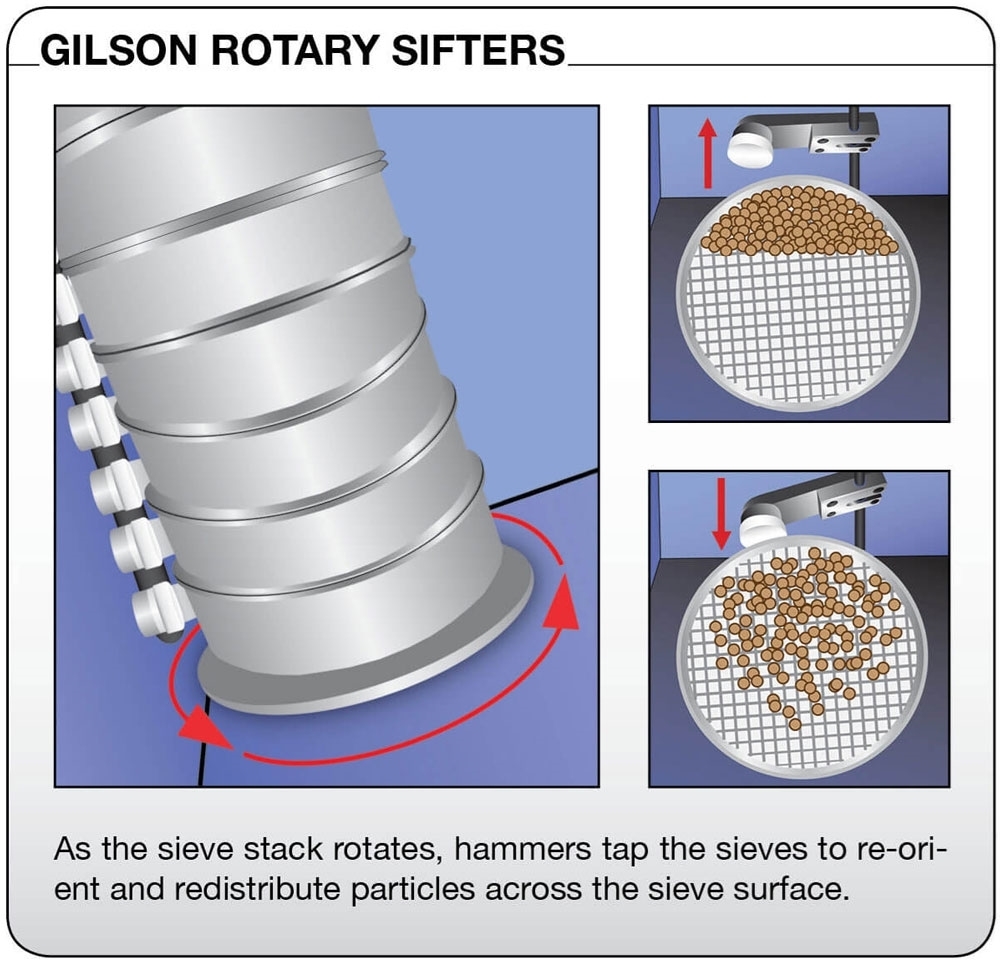

    The operation is quiet and dust-free in the totally enclosed cabinet. Rubber-covered rollers rotate the sieves while mechanical tappers assist particle passage through the sieve. A digital countdown timer with a large, bright LED display controls operation up to 99 minutes 59 seconds. The pause feature allows the operation to be temporarily suspended. The painted medium-density fiberboard cabinet is mounted on a heavy powder-coated steel frame. Models are available to operate on 115V/60Hz or 230V/50Hz power supply.

    View our complete line of Sieve Shakers.

    Features:

    • The preferred design of numerous state DOTs
    • Durable 1/4hp continuous-duty motor
    • Efficient, easy-to-use operation with no clamping required
    • Enclosed cabinet with safety switch
    • Accepts 8in, 12in, 200mm, or 300mm test sieves
    Included Items:
    • Rotary Sifter
    Accessories:
    • ASTM Test Sieves are available in a variety of frame and cloth sizes
    Frame Diameter 8in (203mm), 12in (305mm)
    Particle Size Range No. 4 to No. 635
    Motion/Agitation Rotary/tapping
    Sieve Capacity with Pan

    Full height: (10) 8in Sieves or (6) 12in Sieves

    Half height: (20) 8in Sieves or (13) 12in Sieves

    Intermediate height: (10) 12in Sieves

    Mounting Capability No
    Electrical

    0500-5520: 115V/60Hz, 4.7 Amps, 1/4hp

    0500-5520F: 230V/50Hz, 5.4 Amps, 1/4hp

    Timing Capacity Up to 99 minutes, 59 seconds
    Product Dimensions 19 x 24 x 58in (483 x 610 x 1,473mm) WxDxH
    Estimated Shipping Weight 219.0lb (99.34kg)
