    Tapping Sieve Shakers
    Tapping Sieve Shakers

    Tapping Sieve Shakers

    Tapping Sieve ShakersTapping Sieve ShakersTapping Sieve ShakersTapping Sieve Shakers
    Tapping Sieve Shaker for 8in Sieves (115V / 60Hz)

    Tapping Sieve Shaker for 8in Sieves (115V / 60Hz)

    0500-0558
    $2,560.00
    Tapping Sieve Shaker for 8in Sieves (230V / 50Hz)

    Tapping Sieve Shaker for 8in Sieves (230V / 50Hz)

    0500-558F
    $2,830.00
    Tapping Sieve Shaker for 8in/12in Sieves (115V / 60Hz)

    Tapping Sieve Shaker for 8in/12in Sieves (115V / 60Hz)

    0500-5512
    $2,935.00
    Tapping Sieve Shaker for 8in/12in Sieves (230V / 50Hz)

    Tapping Sieve Shaker for 8in/12in Sieves (230V / 50Hz)

    0500-5512F
    $3,200.00
    • Description
    • Specifications
    • Questions?

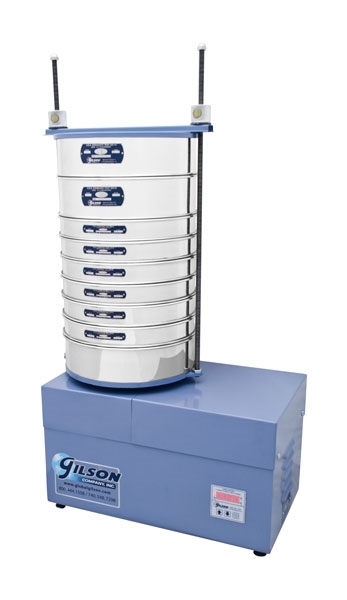

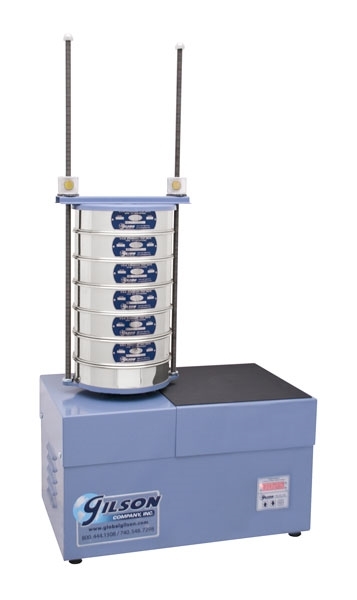

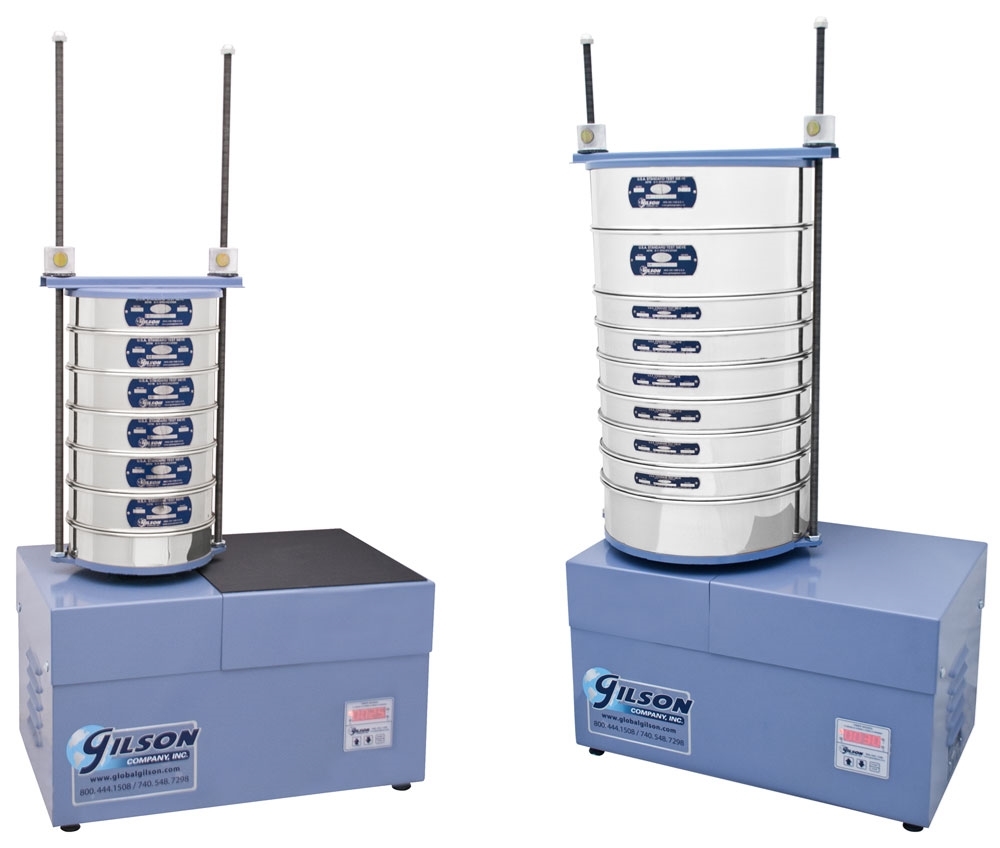

    Tapping Sieve Shakers from Gilson Company provide accurate, repeatable separations of a broad range of material sizes and types. Efficient sieving action is enhanced by two-way vertical tapping at 48 taps per minute to assist in clearing near-size particles from the sieve openings and redistribute. A unique counterbalanced drive mechanism promotes stable operation and consistent results.

    The efficient push-button EZ-Clamp system quickly secures and releases sieve stacks. The digital timer automatically resets to programmed test time at the end of each cycle. Models are available to operate on 115V/60Hz or 230V/50Hz power supply and hold up to 20 sieves, depending on the selected unit and sieve size.

    Tapping Sieve Shaker for 8in Sieves is effective for most materials with particle sizes from 1in to No. 635 (25mm to 20µm) and holds 20 8in half-height or 10 8in full-height sieves plus pan. 200mm ISO sieves can also be used. Inquire for adaptors to fit 3in, 6in, and 10in diameter sieves.

    Tapping Sieve Shaker for 8in/12in Sieves is recommended for particle sizes from 2in to No. 635 (50mm to 20µm) of most materials and holds 13 12in half-height, 10 12in intermediate height, or 6 12in full-height sieves. 12in sieves have more than twice the sieving area of 8in sieves, allowing larger sample sizes. 300mm ISO sieves can also be used, and an adapter for 8in (203mm) or 200mm sieves is included.

    View our complete line of Sieve Shakers.

    Features:

    • Capacities of up to 20 sieves
    • Counterbalanced drive eliminates the need for mounting
    • Digital timer with automatic test time reset
    • Heavy-duty 1/3hp motor
    • Rugged steel housing
    Included Items:
    • Tapping Sieve Shaker
    • Adapter for 8in sieves (with models 0500-5512 and 0500-5512F only)
    Accessories:
    • ASTM Test Sieves are available in a variety of frame and cloth sizes
    Frame Diameter 8in (203mm), 12in (305mm)
    Particle Size Range 1in to No. 635
    Motion/Agitation Circular/tapping
    Sieve Capacity with Pan

    Full height: (10) 8in Sieves or (6) 12in Sieves

    Half height: (20) 8in Sieves or (13) 12in Sieves

    Intermediate height: (10) 12in Sieves

    Timing Capacity Up to 99 minutes, 59 seconds
    Electrical 6.6 Amps
    Mounting Capability No
    Product Dimensions 21.5 x 13.0 x 41in (572 x 330 x 1,041mm) WxDxH
    Estimated Shipping Weight

    0500-0558: 135.0lb (61.24kg)

    0500-558F: 135.0lb (61.24kg)

    0500-5512: 162.0lb (73.48kg)

    0500-5512F: 162.0lb (73.48kg)
