    4in Two-Part Compaction Mold Assembly
    4in Two-Part Compaction Mold Assembly

    4in Two-Part Compaction Mold Assembly

    3818-BP
    $750.00
    Meets Standard(s)
    • AASHTO T 296,
    • ASTM D2850,
    • ASTM D4767,
    • ASTM D5084
    • Description
    • Specifications
    • Questions?

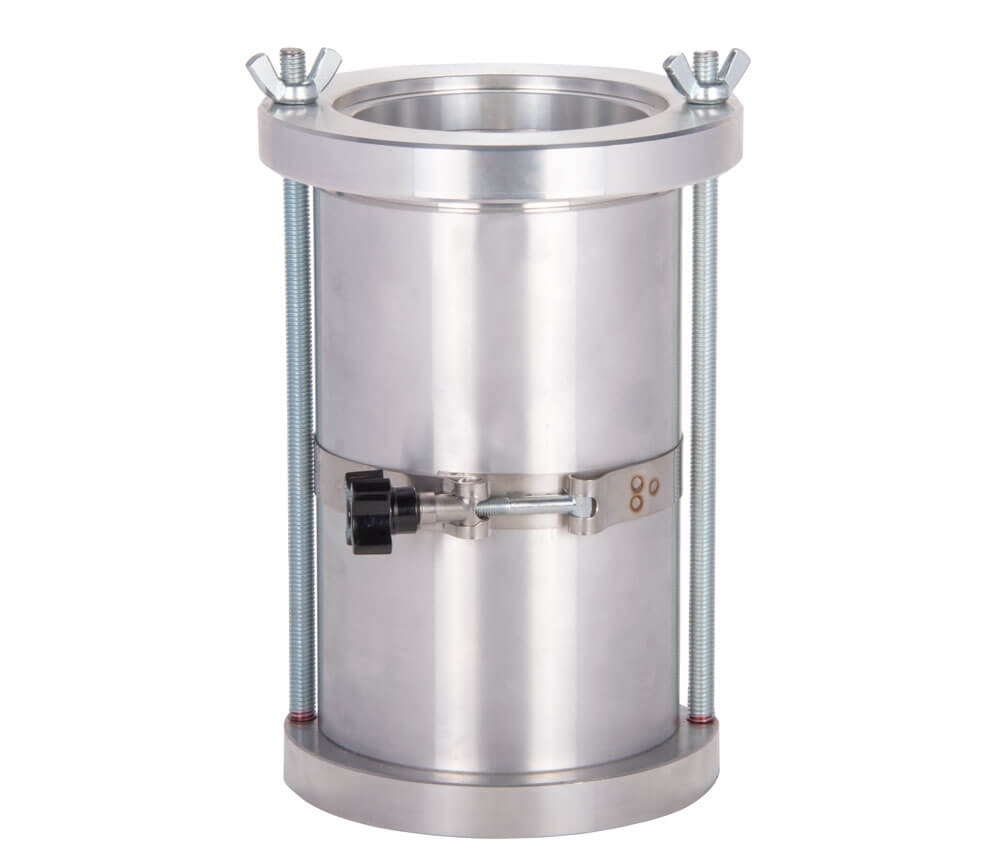

    The 4in (101.6mm) Two-Part Compaction Mold Assembly simplifies the process of remolding cohesive samples for triaxial and permeability testing with its 2:1 height/diameter ratio. Molds fit securely within the base and provide a solid surface for compaction. The included collar completes the assembly and is secured using threaded rods and wing nuts. Ordering an additional 4in Two-Part Compaction Mold offers increased efficiency in sample preparation for testing. The base plate dimensions are 7x0.75in (178x19.05mm) Dia.xH.

    Features:

    • Threaded rods and wing nuts for quick assembly
    • Band clamp allows for easy mold closure

    Included Items:

    • 4in Two-Part Compaction Mold Assembly

    Accessories:

    • 3818 4in Two-Part Compaction Mold used to remold cohesive soil samples for testing
    Specimen Size 4.0in (101.6mm)
    Dimensions Mold Dimensions: 5.00 x 8.00in (127 x 203.2mm) Dia. x H
    Product Dimensions 6 x 9.5in (152 x 241mm) Dia. x H
    Estimated Shipping Weight 10.0lb (4.54kg)

    Please enter your questions/comments and contact information below. A Karol-Warner customer service representative will respond during business hours (8am - 5pm EST, Monday through Friday).

    Accessories
    4in Two-Part Compaction Mold

    4in Two-Part Compaction Mold

    $561.00
