    Calcium Carbonate Apparatus
    Calcium Carbonate Apparatus

    Calcium Carbonate Content Chamber

    4501
    $340.00
    • Product ManualProduct Manual
    Meets Standard(s)
    • ASTM D4373
    Calcium Carbonate Apparatus360 Image of 4501
    • Description
    • Specifications
    • Questions?

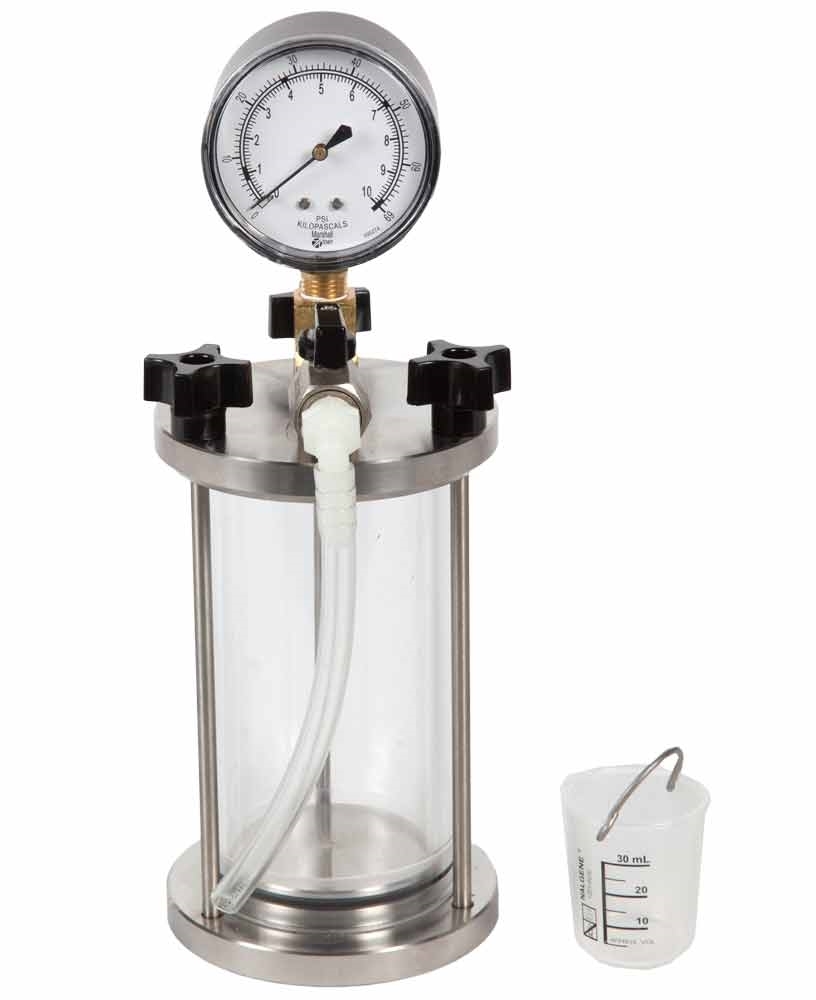

    The Calcium Carbonate Content Chamber, also known as a Rapid Carbonate Analyzer, determines the presence and amount of calcium carbonate (CaCO3) in soil specimens. This simple and fast test is used as an index to the presence and amount of calcium carbonate in marine soil samples extracted as the percent calcite equivalent.

    Within the sealed 2.5 x 5.5in (63.5 x 140mm) IDxH clear acrylic chamber, a 1g soil sample is treated with hydrochloric acid (HCI). The chamber is tilted and agitated, producing carbon dioxide gas from the reaction between the acid and carbonate in the soil specimen, and the pressure results are measured. The 10psi (69kPa) Bourdon-tube pressure gauge is pre-calibrated with reagent-grade calcium carbonate. This pressure is then correlated to the user-defined data reduction method to determine the carbonate content of the sample.

    This unit comes with a pressure gauge, stainless steel end caps with sealing o-rings, a bleed valve, and a 20ml cup with a handle.

    Features:

    • Clear acrylic chamber for easy sample viewing
    • Easy-to-read pressure gauge
    • Portable unit for rapid results

    Included Items:

    • Calcium Carbonate Content Chamber
    Product Dimensions 4 x 11in (102 x 279mm) WxH
    Chamber Dimensions 2.5 x 5.5in (63.5 x 140mm) IDxH
    Estimated Shipping Weight 6.0lb (2.72kg)
