    4in Compaction Permeameter
    4in Compaction Permeameter

    Compaction Permeameters

    Meets Standard(s)
    • ASTM D5856

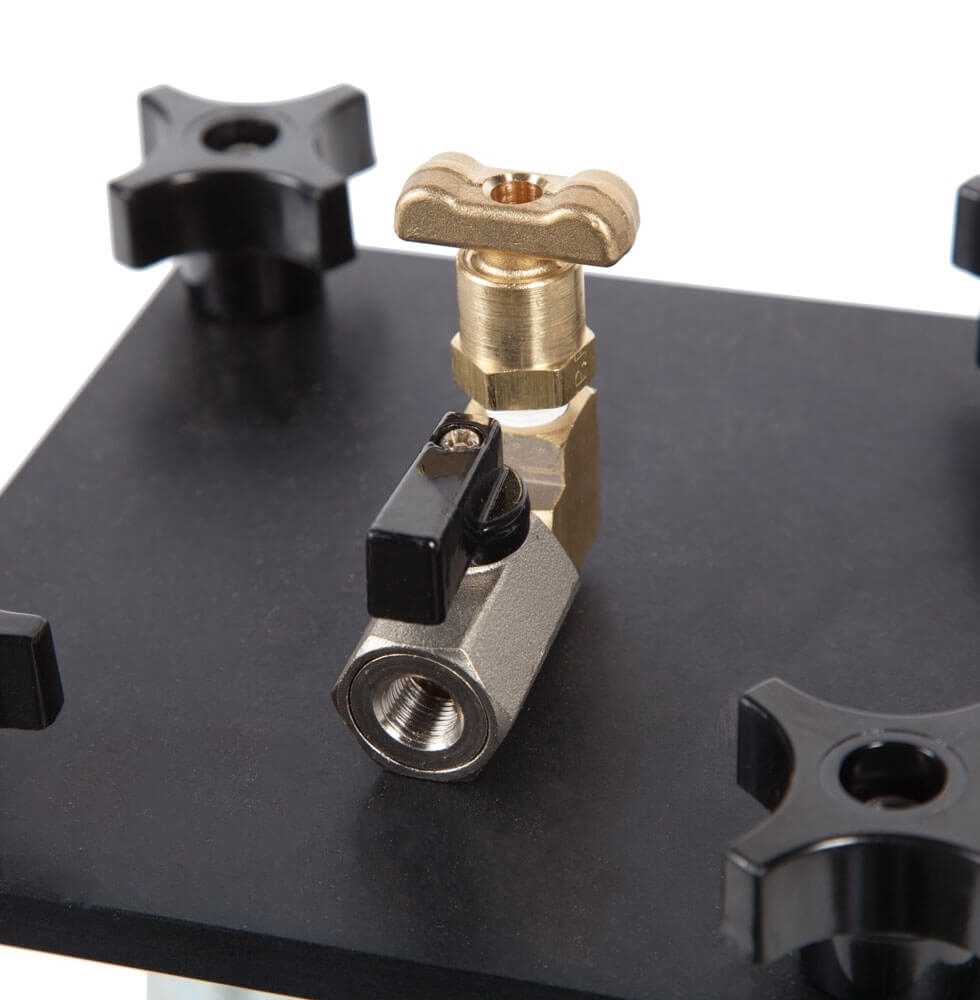

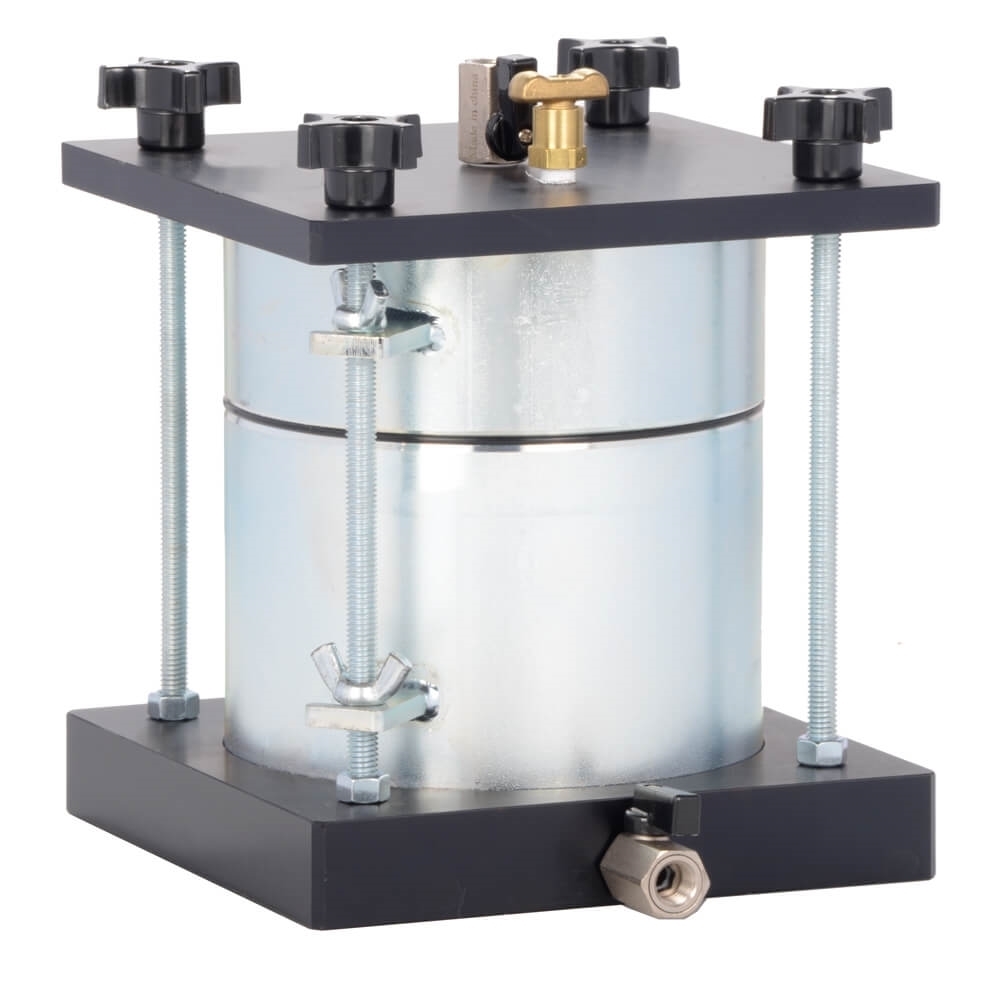

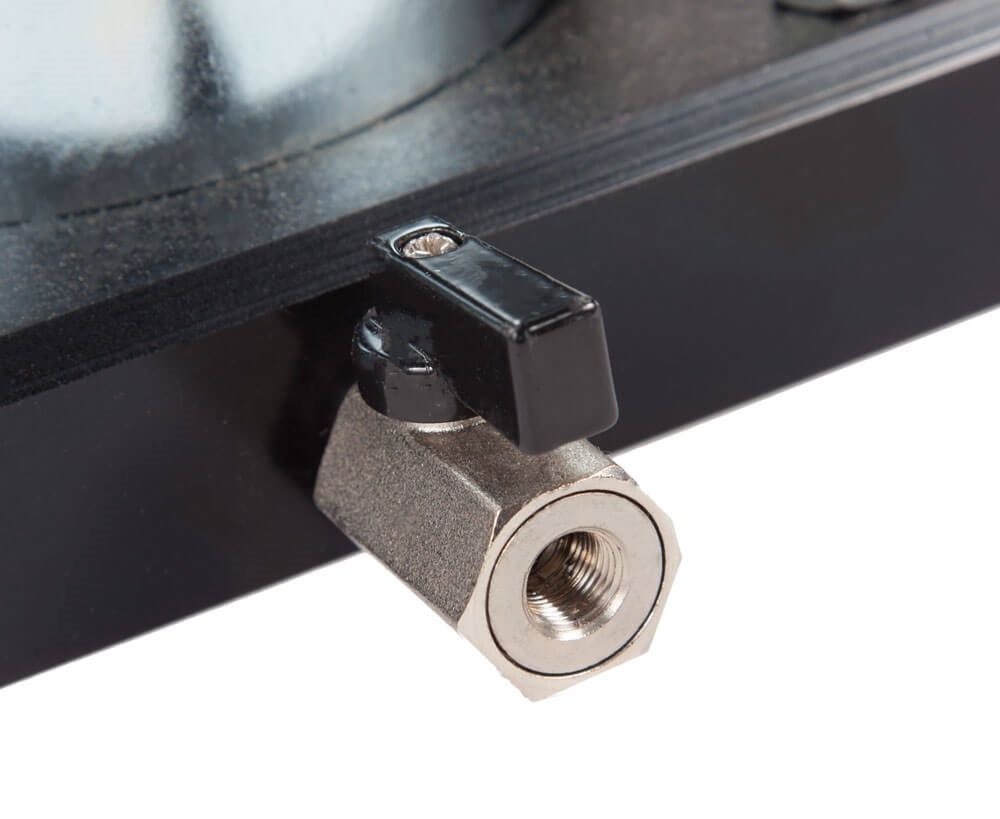

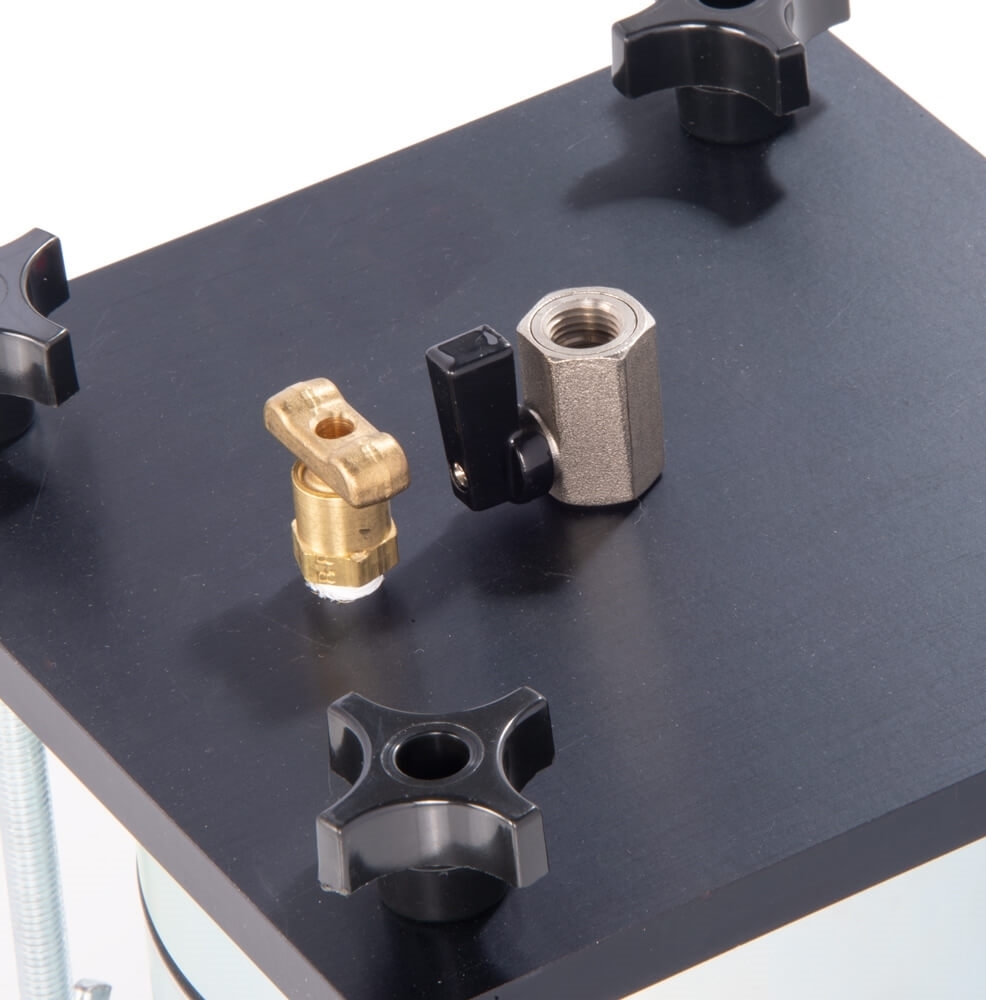

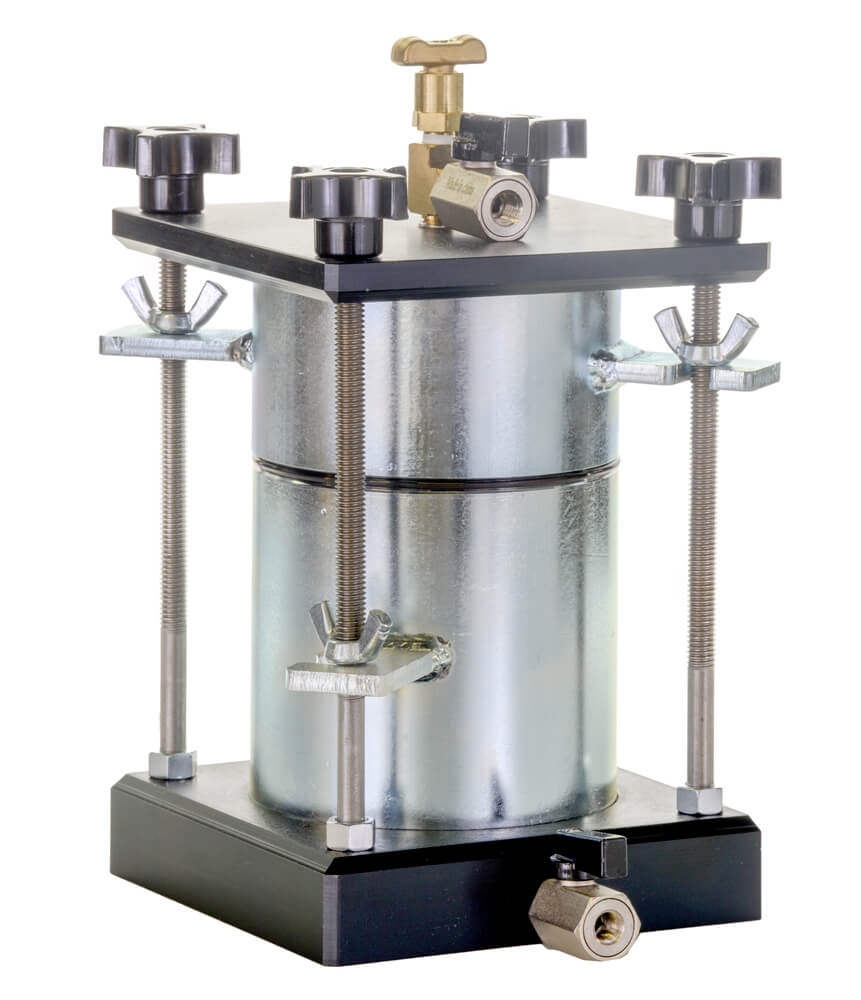

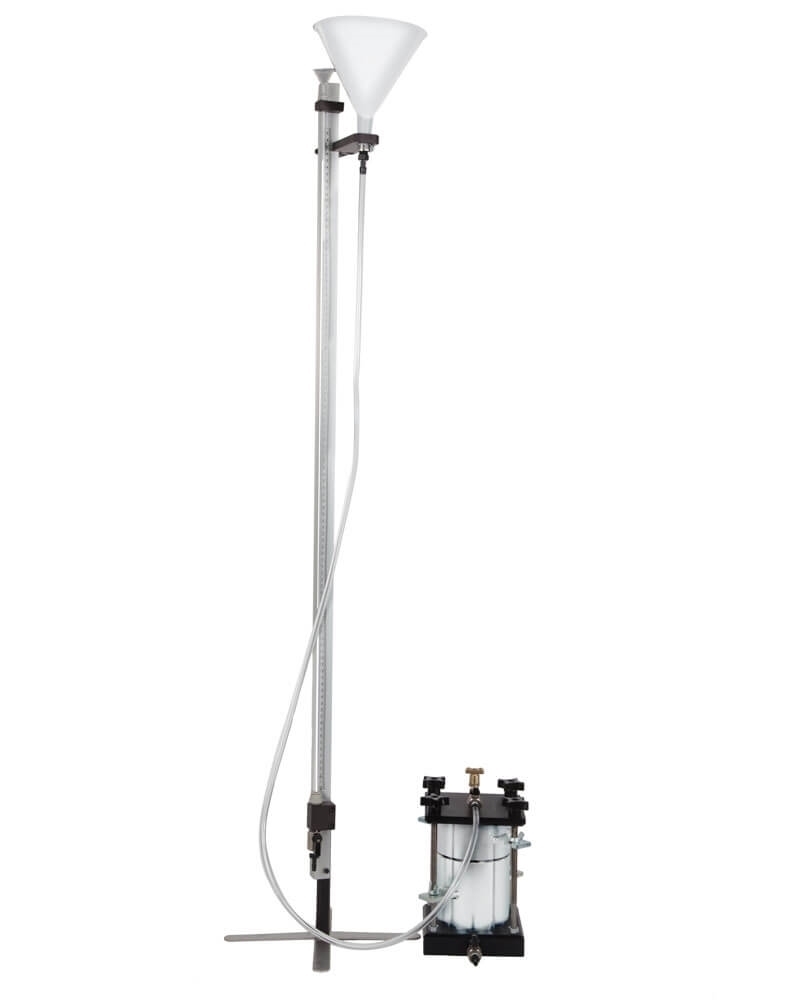

    4in Compaction Permeameter6in Compaction Permeameter4in Compaction Permeameter Upper Plate Valve6in Compaction Permeameter Upper Plate ValveCompaction Permeameter Lower Plate Valve4in Compaction Permeameter with Manometer (Manometer sold separately)360 Image of 4050
    4in Compaction Permeameter

    4in Compaction Permeameter

    4050
    $360.00
    6in Compaction Permeameter

    6in Compaction Permeameter

    4051
    $402.00
    • Description
    • Specifications
    • Video
    • Questions?

    Compaction Permeameters use density molds and collars that meet requirements for conventional 4in (102mm) or 6in (152mm) Proctor soil compaction molds. These versatile permeameters perform falling head or constant head soil permeability tests. Permeameter has anodized aluminum upper and lower plates to secure the mold and collar. They are Fitted with inlet / outlet valves, and connectors. An air bleed valve is built in to allow the flow of water through the compacted sample. The necessary tubing, two Porous Stones, and sealing rings are included.

    A Single Tube Manometer is required and is purchased separately. Reservoirs and other accessories are also purchased separately. Additional Soil Density Molds are available to speed up the sample preparation process.

    Features:

    • Use conventional 4in or 6in soil compaction molds and collars
    • Can be used for constant head or falling head soil permeability testing
    • Quality valves and fittings are used throughout

    Included Items:

    • Compaction Permeameter
      • 4050 includes two 50397012 Porous Stones
      • 4051 includes two 50598512 Porous Stones

    Accessories:

    • Single Tube Manometers have valves to control flow during soil permeability testing
    • 4040-2 4in Soil Density Mold used in falling or constant head soil permeability tests
    • 4040-3 4in Soil Density Mold Collar increases capacity of compacted soil to fit in mold to test
    • 4060-2 6in Soil Density Mold for soil permeability testing by falling or constant head methods
    • 4060-3 6in Soil Density Mold Collar allows for maximum compacted soil in mold for testing
    • O-Ring Seals for Compaction Permeameters seal 4 or 6in molds to prevent sample leakage
    • Constant Head Tanks provide water to permeameters during testing
    • 50397012 3.97in Diameter Porous Stone, 0.50in Thick
    • 50598512 5.98in Diameter Porous Stone, 0.50in Thick




    Mold Size

    Model 4050: 4 x 4.584in (101.6 x 116.4mm) Dia. x H

    Model 4051: 6 x 7in (152.4 x 177.8mm) Dia. x H

    Estimated Shipping Weight

    4050: 17.0lb (7.71kg)

    4051: 25.0lb (11.34kg)
