Consolidation Data Acquisition Software

Consolidation Data Acquisition Software records the rate of consolidation automatically during incremental loading of soil samples. Data entry fields and testing prompts are clear and intuitive to reduce user error and increase repeatability. Consolidation software runs on Windows XP or newer operating systems and can also be used on PC tablets and laptops with touchscreen control. Popup keyboards can be enabled for touchscreen computers or disabled when a PC with mouse and keyboard is used. Testing agency information, company logo, and equipment information can be entered and included in the testing reports.

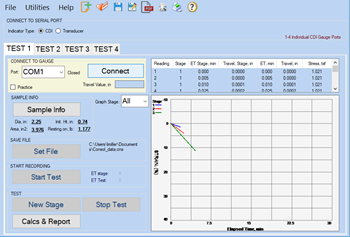

Graphing and calculations are performed in real-time throughout the test procedure and saved automatically at test completion in accordance with ASTM and AASHTO specifications. Testing agency information, sample data, final test results, and corresponding graph are included in the final test report. Testing information and report data can also be exported to a spreadsheet application or converted into a PDF document.

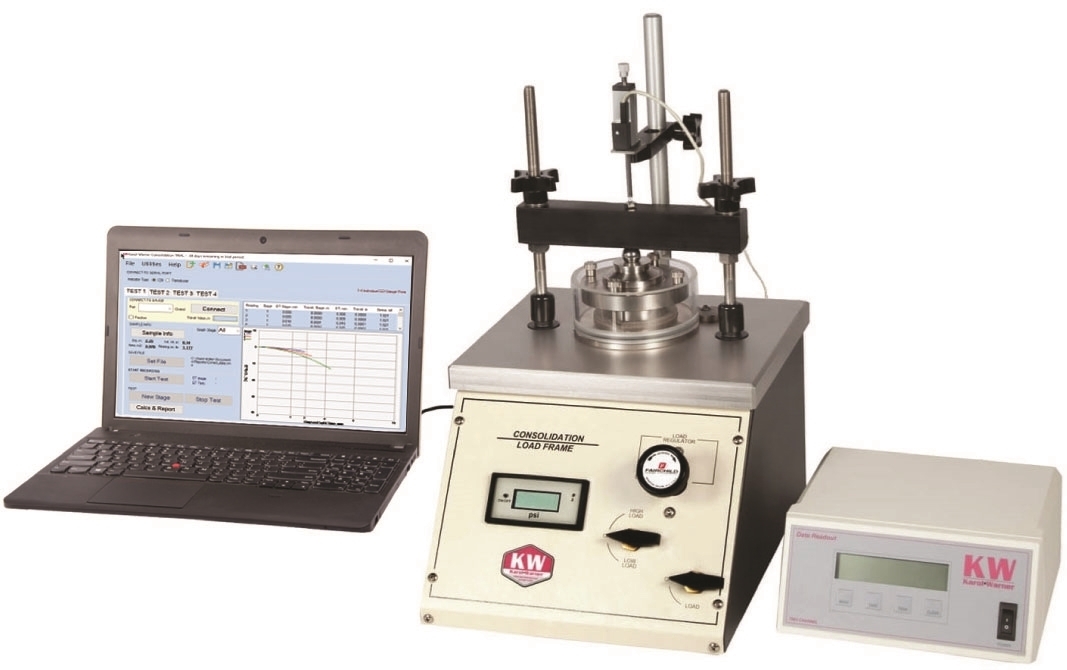

Consolidation Data Acquisition Software requires a 6572 two-channel or 6574 four-channel Data Readout equipped and a 6152 Linear Variable Displacement Transducer (LVDT). The software can also be configured for use with a Digital Dial Indicator and 6800 USB Cable. All components and sets are purchased separately. Customization using third-party displacement components is possible. Contact Karol-Warner for compatibility information.

Add to cart to download a free, fully-functional 30-day trial of the Consolidation software. A link to download the software will be sent after checkout. Upon purchase, a USB security key and licensing information will be sent to unlock the software for permanent operation.

Features:

• The real-time graph displayed during each consolidation stage
• Previous stages and graph of all stages can be recalled at test completion
• Final reports automatically saved to a computer, network, or cloud
• Calculations and reports adhere to applicable ASTM and AASHTO standards
• Optimized for use with desktop, laptop, or tablet devices

Included Items:

• Consolidation Data Acquisition Software

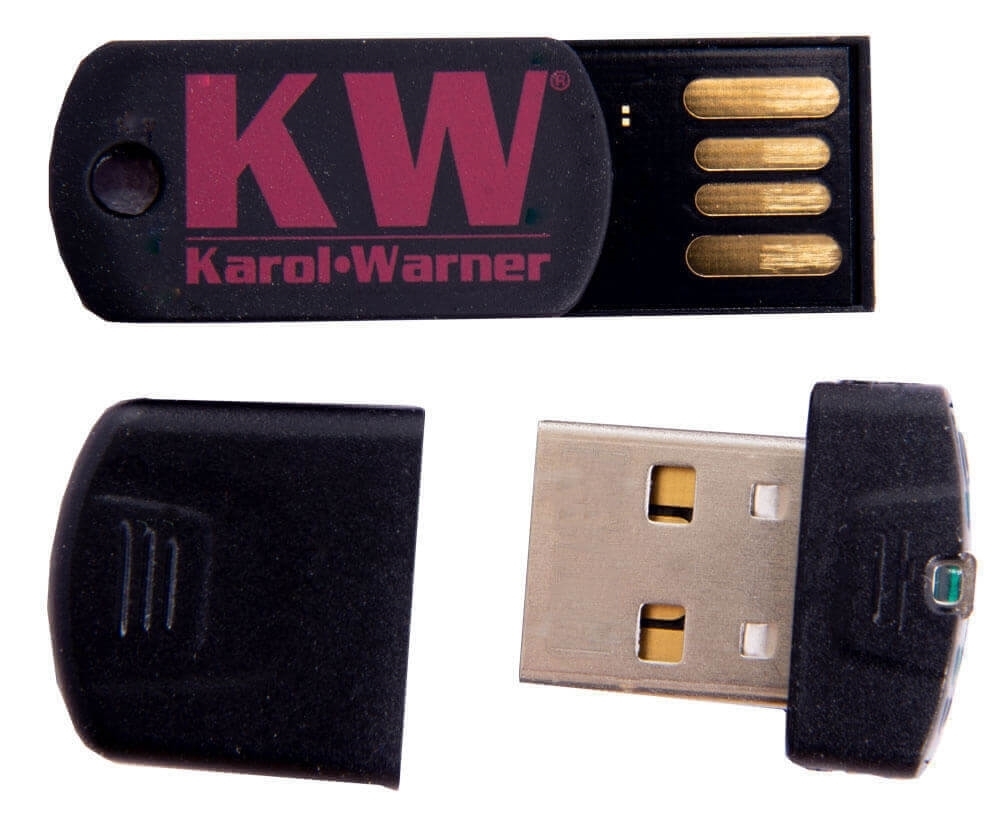

• USB flash drive with installation files

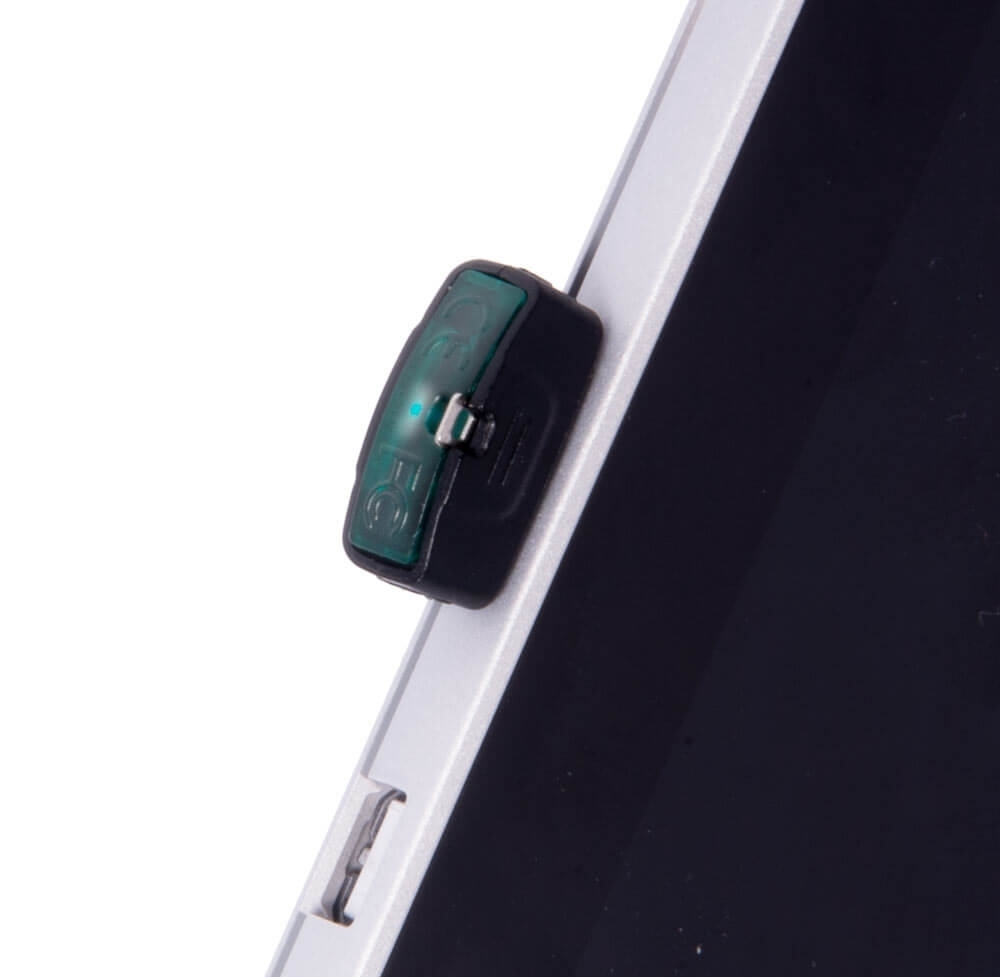

• USB security key
