Data Readouts

Data Readouts display real-time data from the load, displacement, and pressure transducers on different channels. These units are available with either two or four channels, with each channel capable of converting from analog to digital (A/D) and producing readings simultaneously without time delay errors. Data is transmitted from the Mini USB port (optional RS 232) to Windows XP, 7, 8, or 10 operating systems. The included GetData 5 software captures and displays data on a PC, and can export files to a spreadsheet program such as Excel.

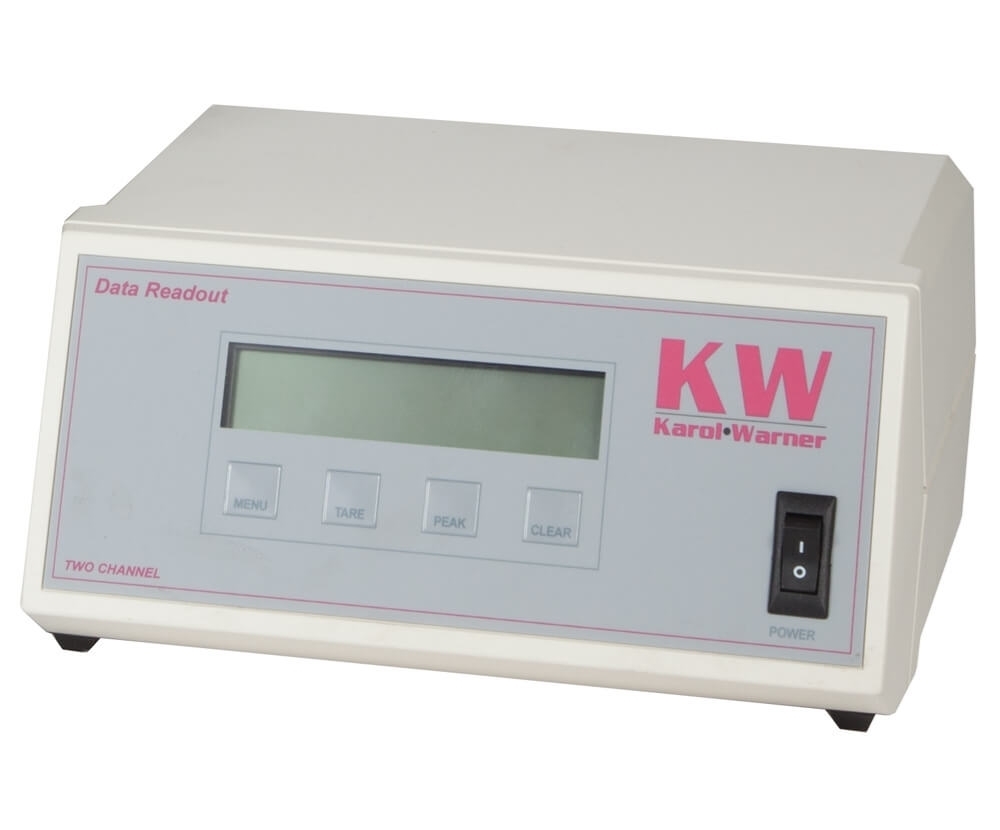

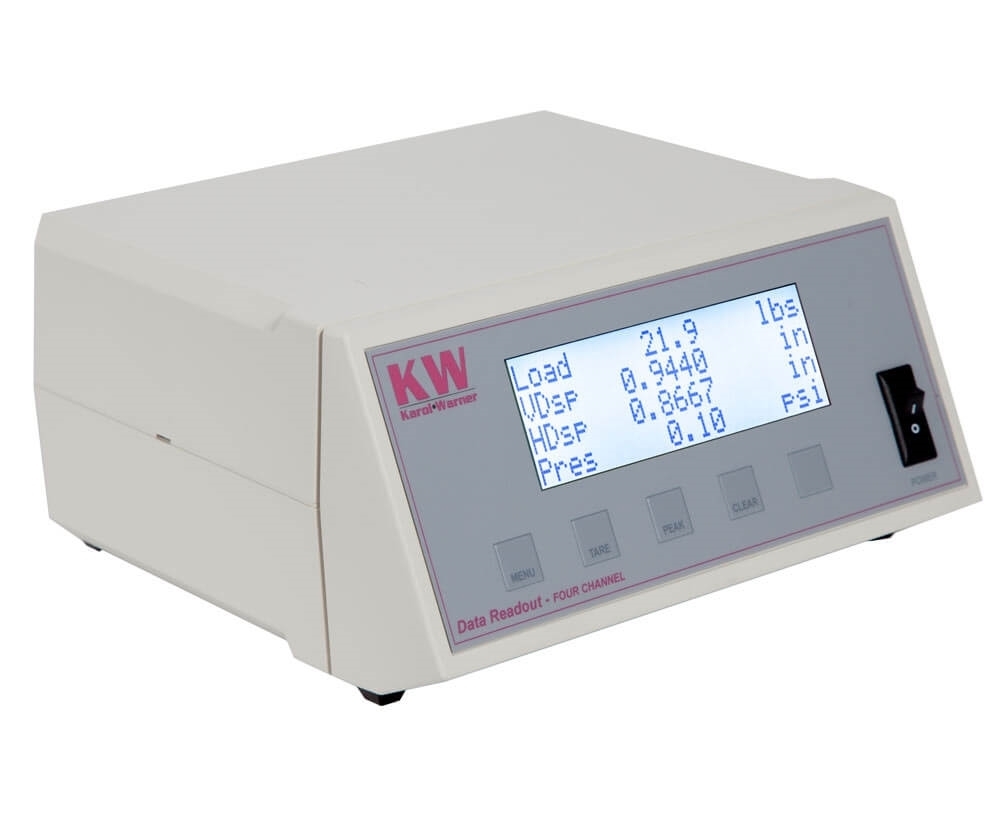

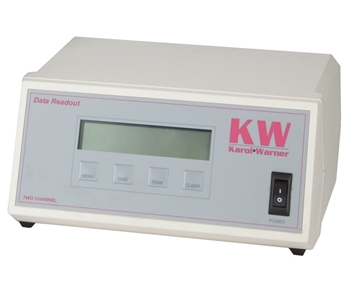

The high-resolution LCD screen is backlit and can display two lines with up to 16 characters. Keys located on the front panel allow users to select tare on a channel, view peak readings of a channel, or enter calibration factors when changing transducers.

Karol-Warner offers a wide selection of load cells, LVDT, and digital dial indicators that can be paired with the readout.

Features:

• Two or four-channel units available
• Mini USB port (optional RS232) exports data to the spreadsheet program
• Easy-to-read LCD display

Included Items:

• Two or Four-Channel Data Readout (115V/50-60Hz or 230V/50-60Hz)
• Mini USB to the USB data cable
• GetData 5 software

Accessories:

• Data Acquisition Software records specimen information and real-time test data for a wide range of soil and asphalt laboratory tests and prepares reports following applicable ASTM and AASHTO requirements
• 68102 RS 232 Output Cable for Digital Dial Indicators is used to transmit data to your PC
• Linear Variable Displacement Transducers are available in a variety of sizes to be paired with either readout
• Load Cells of various sizes can be paired with the readouts

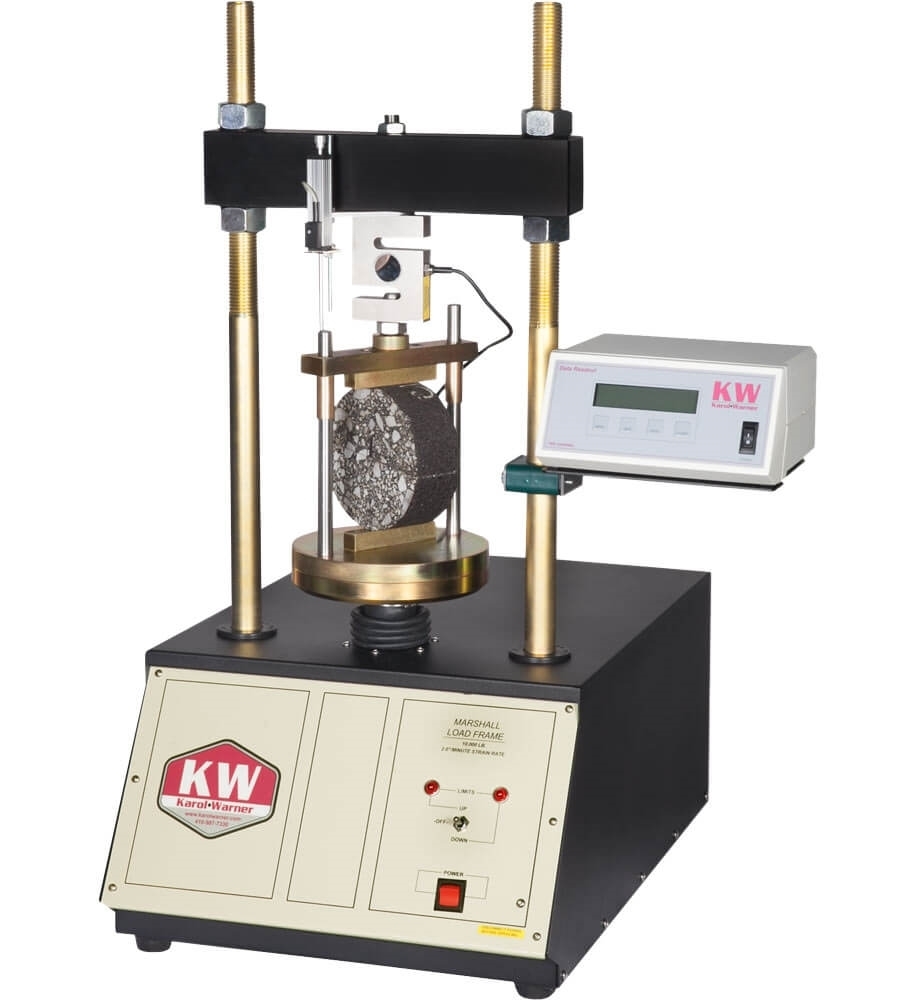

• 7001 Readout Load Frame Bracket secures the readout to a Load Frame
