    • Load Frame, 0.00001 - 0.29999in / min, 10,000lbf
    Load Frame, 0.00001 - 0.29999in / min, 10,000lbf
    Load Frame, 0.00001 - 0.29999in / min, 10,000lbf

    Load Frame, 0.00001 - 0.29999in / min, 10,000lbf

    • Product ManualProduct Manual
    Meets Standard(s)
    • AASHTO T 193,
    • AASHTO T 208,
    • AASHTO T 296,
    • ASTM D1633,
    • ASTM D1883,
    • ASTM D2166,
    • ASTM D2850,
    • ASTM D4767,
    • ASTM D7181,
    • FM 5-515
    Load Frame, 0.00001 - 0.29999in / min, 10,000lbfLoad Frame, 0.00001 - 0.29999in / min, 10,000lbfLoad Frame, 0.00001 - 0.29999in / min, 10,000lbfLoad Frame, 0.00001 - 0.29999in / min, 10,000lbfLoad Frame, 0.00001 - 0.29999in / min, 10,000lbfLoad Frame, 0.00001 - 0.29999in / min, 10,000lbfLoad Frame, 0.00001 - 0.29999in / min, 10,000lbfLoad Frame, 0.00001 - 0.29999in / min, 10,000lbfLoad Frame, 0.00001 - 0.29999in / min, 10,000lbf
    Load Frame, 0.00001 - 0.29999in / min, 10,000lbf (120V / 50-60Hz)

    Load Frame, 0.00001 - 0.29999in / min, 10,000lbf (120V / 50-60Hz)

    7631
    $5,370.00
    Load Frame, 0.00001 - 0.29999in / min, 10,000lbf (230V / 50-60Hz)

    Load Frame, 0.00001 - 0.29999in / min, 10,000lbf (230V / 50-60Hz)

    7631F
    $5,370.00
    • Description
    • Soil Tests
    • Specifications
    • Questions?

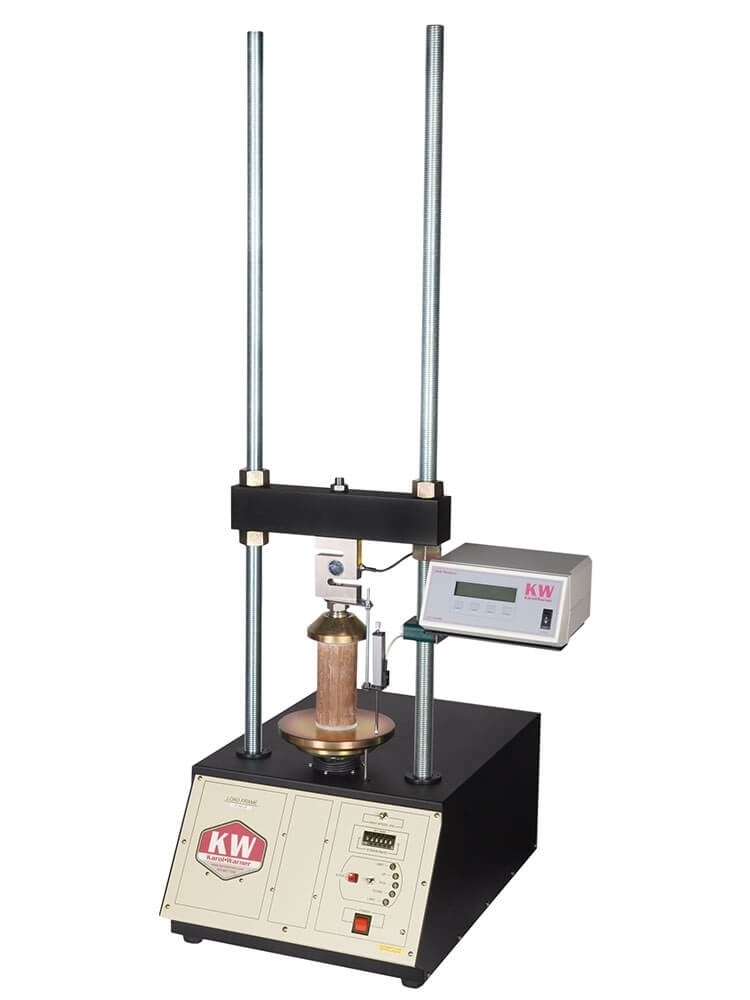

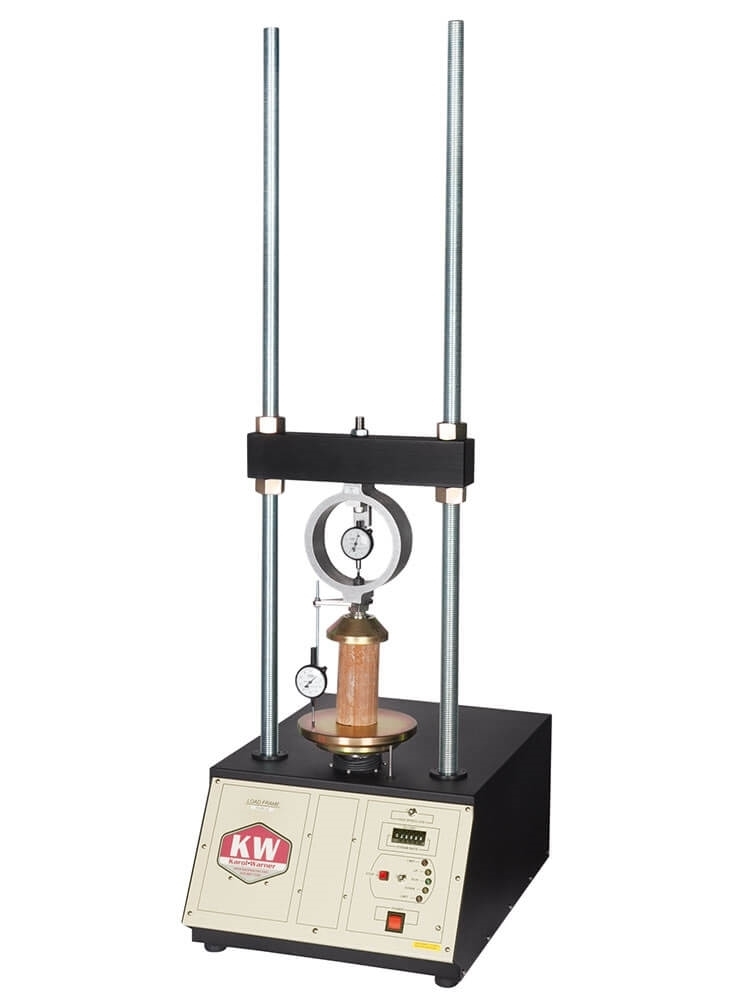

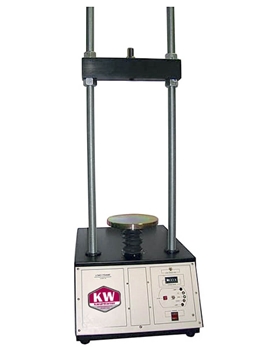

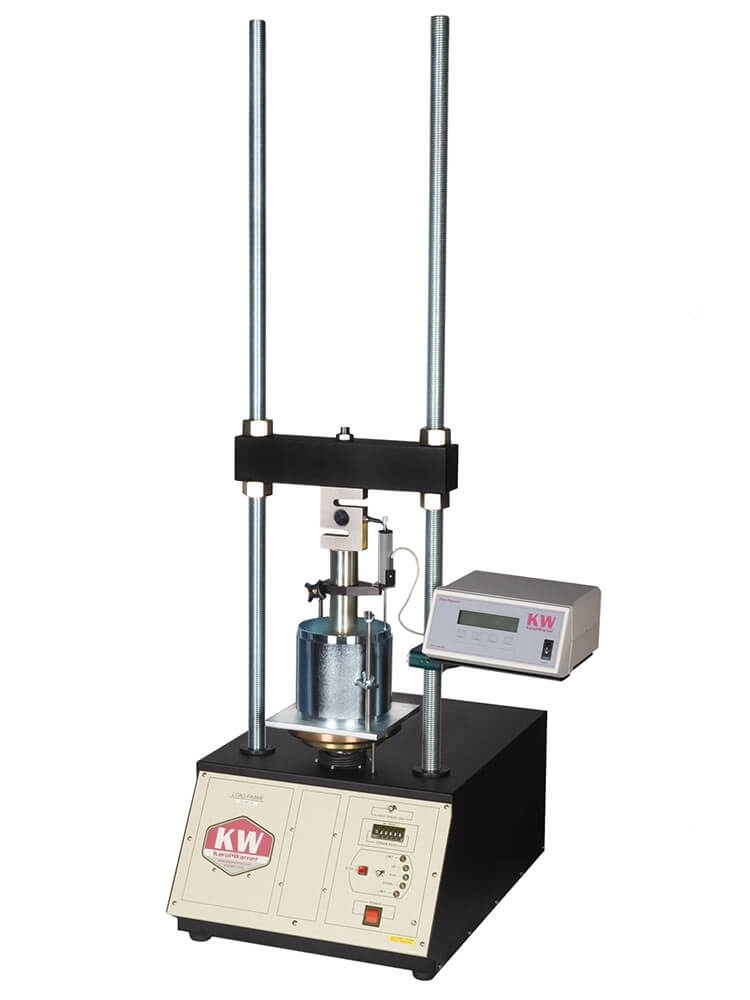

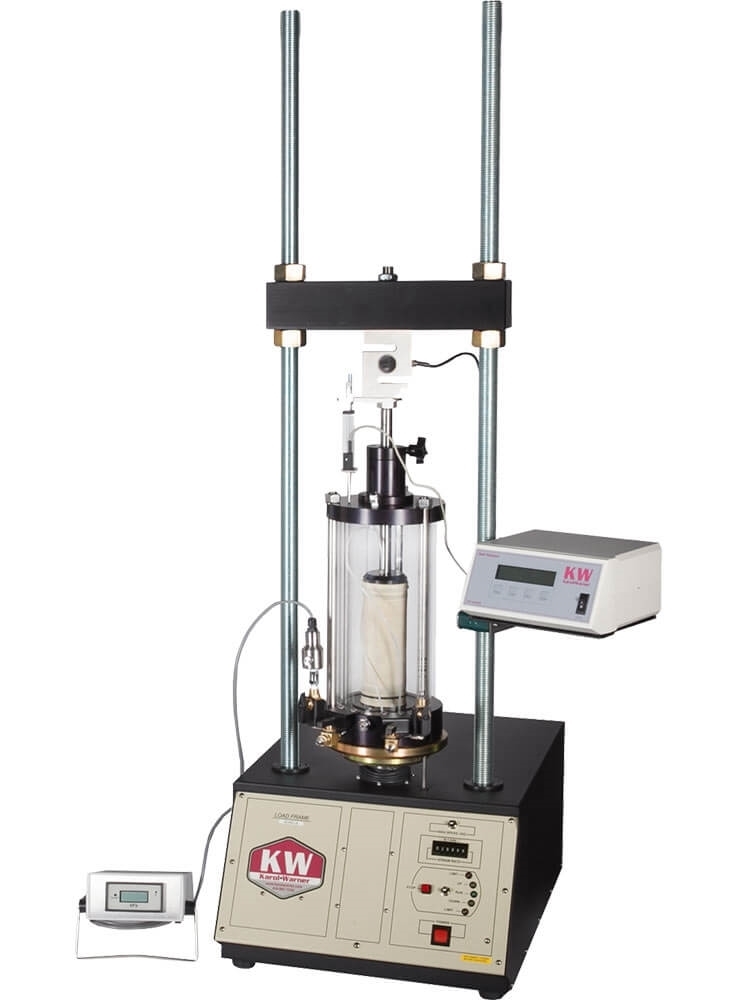

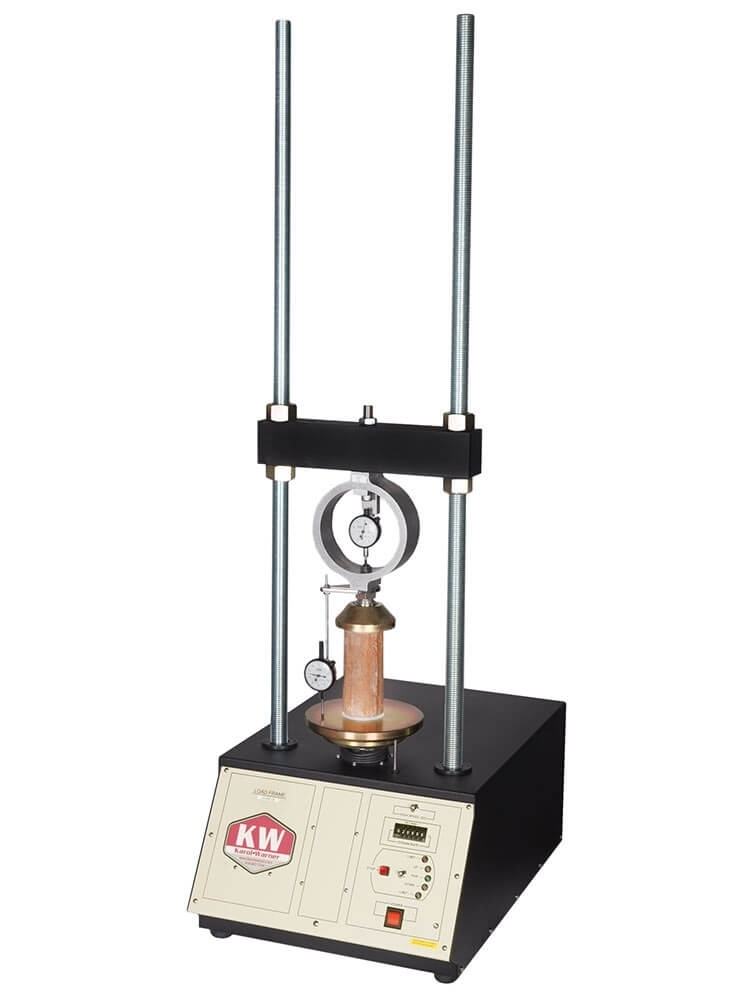

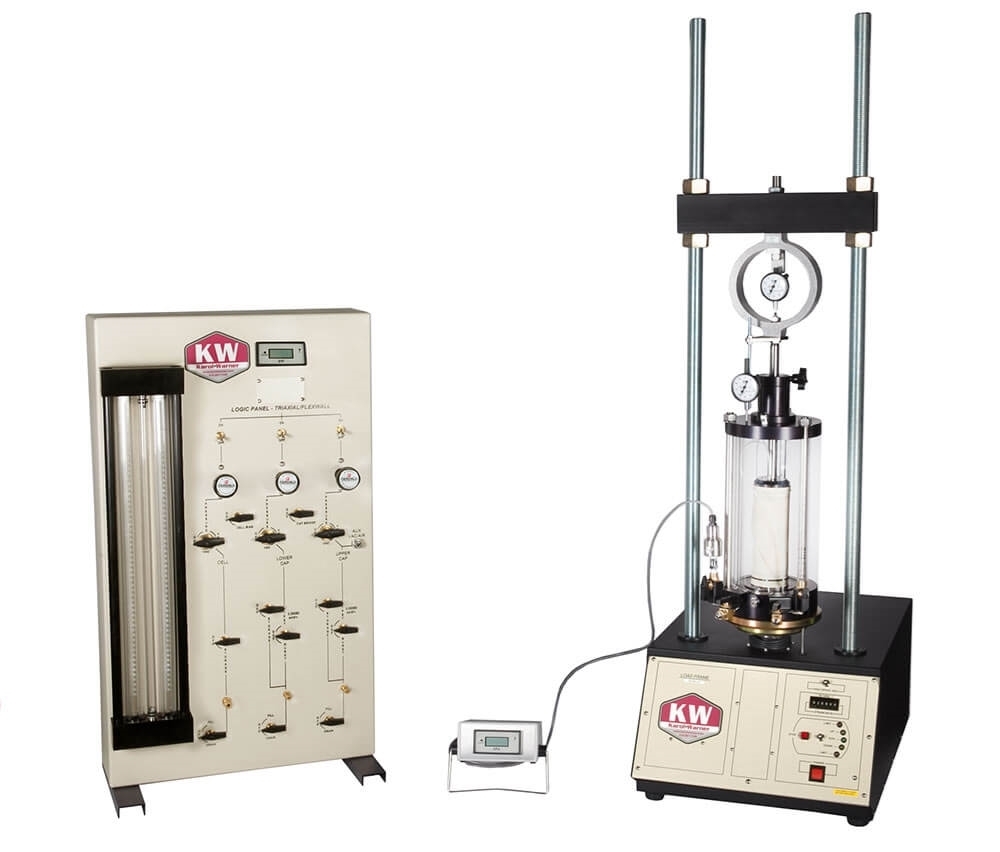

    The 7631 Karol-Warner Load Frame is an economical Load Frame that can perform a variety of soil tests. Its 10,000lbf (44.5kN) capacity and wide strain rate of 0.00001 – 0.29999in/min (0.000254 – 7.619mm/min) cover California Bearing Ratio (CBR), Unconfined Compressive Strength (UC), Triaxial and Soil Cement Testing when equipped with proper load and displacement components. The reliable DC stepper motor regulates speed to within ±1% and is matched to the unique speed and torque requirements of the Load Frame.

    With its sturdy powder-coated steel cabinet and precision loading screw with a protective boot, the Load Frame can handle even the most severe lab environments. Front panel controls allow the operator to adjust the direction and speed of the 8in (203mm) diameter platen, as well as select the strain rate. The vertical 1.25in (32mm) diameter rods allow for a quick change of crossarm height.

    Features:

    • Strain rate of 0.00001 – 0.29999in/min covers a number of different soil tests
    • Load capacity up to 10,000lbf
    • DC stepper motor regulates speed to within ±1%
    • Corrosion-resistant construction
    • Simple to operate and maintain
    • Economical and versatile product for laboratory or university needs

    Included Items:

    • Load Frame, 0.00001 – 0.29999in / min, 10,000lbf

    Accessories:

    • Data Acquisition Software records specimen information and real-time test data for a wide range of soil and asphalt laboratory tests and prepares reports following applicable ASTM and AASHTO requirements
    • Load & Displacement Measurement products outfit Karol-Warner Load Frames for specific test methods
    • 7699 Rolling Cart for Load Frames allows easy portability in the lab
    • 6572-28 Two Channel Readout with 2in Displacement Transducer & 10,000lbf Load Cell offers a complete kit for measuring and displaying load displacement
    • 7001 Readout Load Frame Bracket secures a Data Readout to the Load Frame
    ModelStrain Rate,
    in/min
    Capacity, lbfTriaxialUnconfined
    Compressive
    Strength
    California
    Bearing
    Ratio (CBR)
    Soil Cement

    Marshall
    Lottman
    Semi-Circular Bend (SCB)
    Tack Shear

    7611 0.001 - 0.1 10,000 ✔ ✔ ✔ ✔
    7621 0.0001 - 0.3 10,000 ✔ ✔ ✔ ✔
    7631 0.00001 - 0.29999 10,000 ✔ ✔ ✔ ✔
    7731 0.00001 - 0.29999 20,000 ✔ ✔ ✔ ✔
    7691 0.02 - 2.0 10,000 ✔ ✔ ✔ ✔ ✔
    7690 2.0 Fixed 10,000         ✔
    7790 2.0 Fixed 20,000         ✔
    Load Capacity 10,000lbf (44.5kN)
    Strain Rate 0.00001 - 0.29999in/min (0.000254 - 7.619mm/min)
    Rate of Load ±1% of Set Point
    Motor DC
    Electrical 120V / 50-60Hz or 230V / 50-60Hz
    Frame Opening Dimensions 11.9 x 37.3in (302 x 947mm) WxH
    Net Weight 190lb (86.4kg)
    Product Dimensions 18 x 29 x 54.5in (457 x 737 x 1,384mm) WxDxH
    Estimated Shipping Weight 250.0lb (113.40kg)
