    Standard Soil Compaction Hammer
    Standard Soil Compaction Hammer

    Manual Soil Compaction Hammers

    Meets Standard(s)
    • AASHTO T 134,
    • AASHTO T 135,
    • AASHTO T 136,
    • AASHTO T 180,
    • AASHTO T 99,
    • ASTM D1557,
    • ASTM D1558,
    • ASTM D558,
    • ASTM D559/559M,
    • ASTM D698
    Standard Soil Compaction HammerModified Soil Compaction Hammer
    Standard Manual Soil Compaction Hammer, 5.5lb

    Standard Manual Soil Compaction Hammer, 5.5lb

    7013
    $74.00
    Modified Manual Soil Compaction Hammer, 10lb

    Modified Manual Soil Compaction Hammer, 10lb

    7014
    $92.00
    • Description
    • Specifications
    • Questions?

    Soil Compaction Hammers are sliding drop proctor hammers used for the Proctor Compaction of soil samples. The Hammers are constructed of 100% 303 stainless steel to ensure corrosion resistance and long service life. Hammer masses are enclosed in guide sleeves with vent holes that guarantee unrestricted free fall.

    Welded to the tube is a heavy, knurled, hexagonal cap that creates a secure, comfortable grip during use and prevents rolling during storage. All hammer models have a 2in (51mm) flat, circular face.

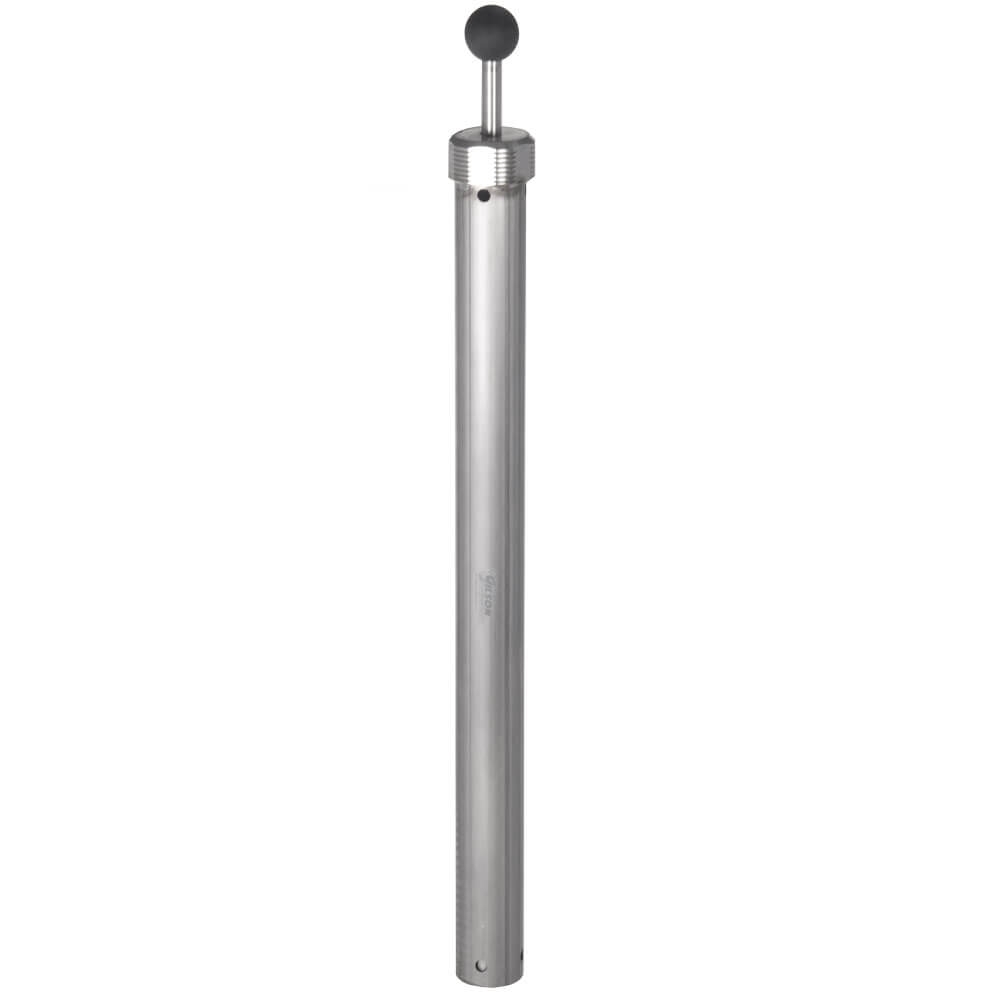

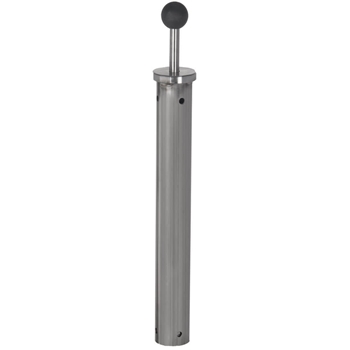

    Standard Soil Compaction Hammer has a 5.5lb (2.5kg) hammer mass with a 12in (305mm) drop.

    Modified Soil Compaction Hammer has a 10lb (4.5kg) hammer mass and an 18in (457mm) drop.

    Features:

    • 100% 303 stainless steel construction
    • A knurled hexagonal cap that is welded for a secure grip

    Included Items:

    • Manual Soil Compaction / Proctor Hammer

    Accessories:

    • 4040 4in Proctor Density Mold Sets
    • 4060 6in Proctor Density Mold Sets
    • 7011 CBR Mold Set
    • 7012 LBR Mold Set
    Product Dimensions 7013 Model: 21 x 2.2in (533 x 55mm) LxDia. 7014 Model: 31 x 2.2in (787 x 55mm) LxDia.
    Estimated Shipping Weight

    7013: 9.0lb (4.08kg)

    7014: 15.0lb (6.80kg)

    Please enter your questions/comments and contact information below. A Karol-Warner customer service representative will respond during business hours (8am - 5pm EST, Monday through Friday).

    Accessories
    4in Soil Density Mold Set

    4in Soil Density Mold Set

    $90.50
    6in Soil Density Mold Set

    6in Soil Density Mold Set

    $109.50
    CBR Mold Set

    CBR Mold Set

    $171.00
