Marshall Data Acquisition Software

Marshall Data Acquisition Software records and graphs load and displacement data automatically to determine peak stability and flow of asphalt pavement mixtures. Data entry fields and testing prompts are clear and intuitive to reduce user error and increase repeatability.

Marshall software runs on Windows XP or newer operating systems and can also be used on PC tablets and laptops with touchscreen control. Popup keyboards can be enabled for touchscreen computers or disabled when a PC with mouse and keyboard is used. Testing agency information, company logo, and equipment information can be entered and included on the testing reports.

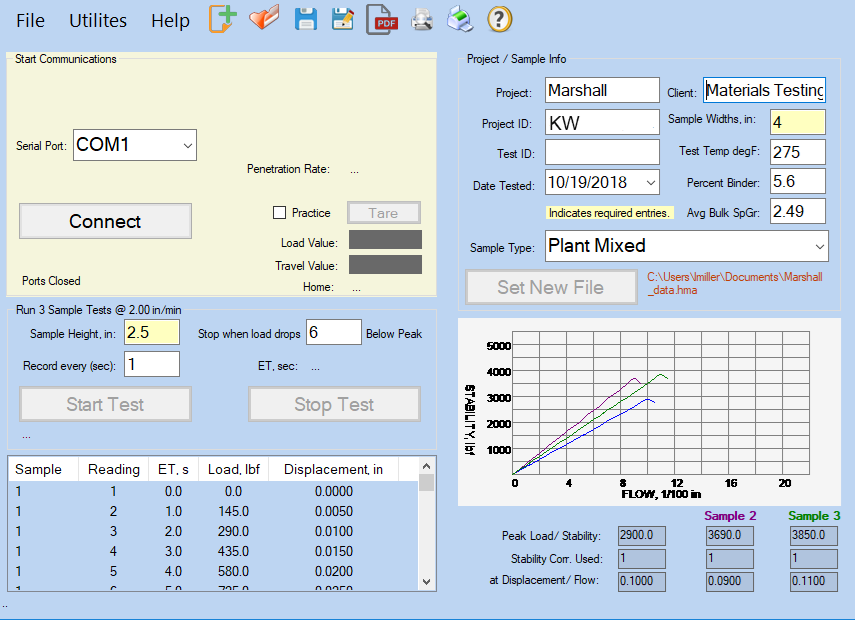

Graphing and calculations are performed in real-time throughout the test procedure and saved automatically at test completion in accordance with ASTM and AASHTO specifications. Testing agency information, sample data, peak stability and flow, and corresponding graph are included in the final test reports. Testing information and report data can also be exported to a spreadsheet application or converted into a PDF document.

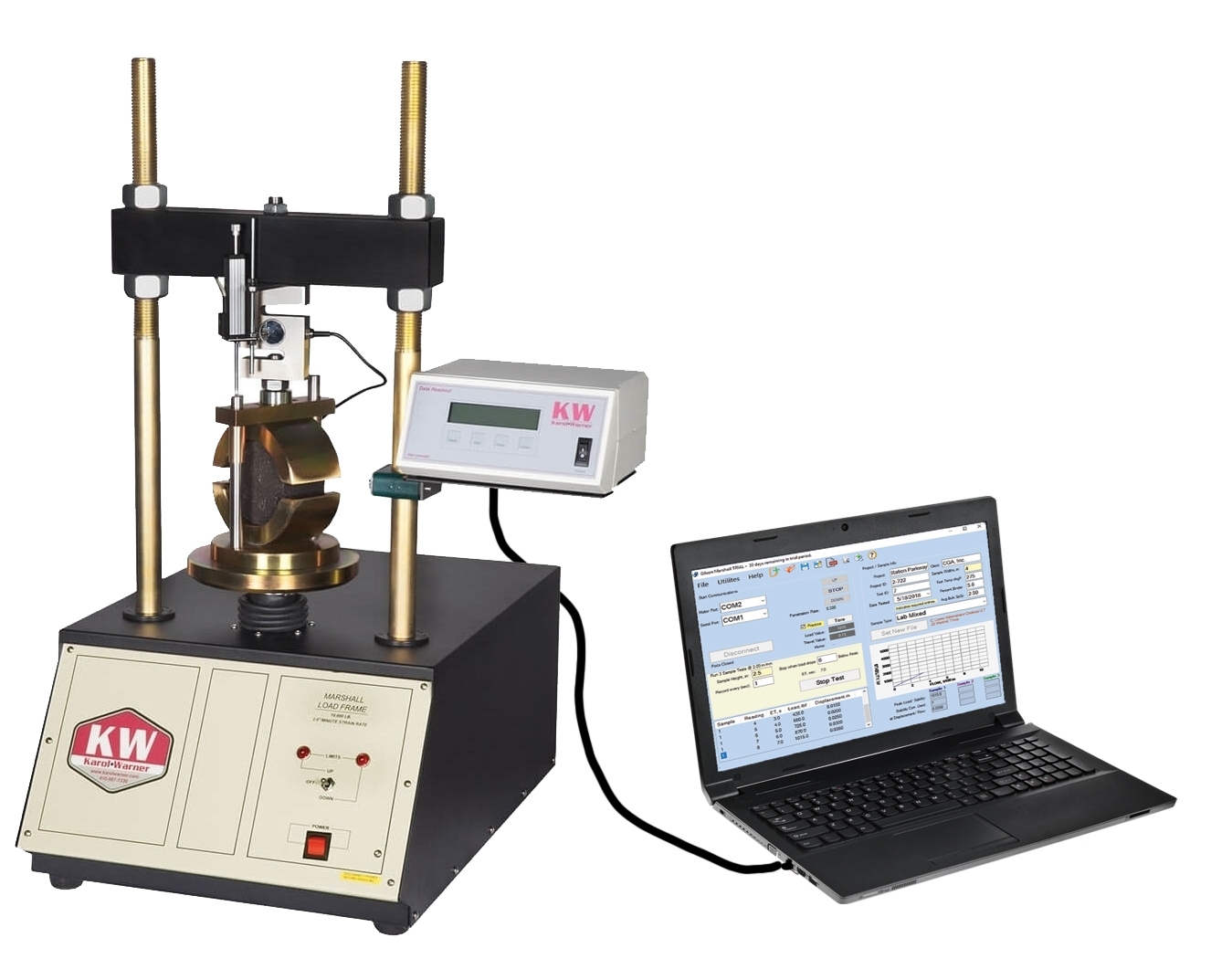

Marshall Data Acquisition Software requires a 6572 two-channel or 6574 four-channel Data Readout, 6145 10,000lbf Load Cell, 6153 2in Linear Variable Displacement Transducer, and a 7021-B Dial Indicator/Displacement Transducer Bracket for operation. All required components are purchased separately. Customization using third-party load and displacement components is possible. Contact Karol-Warner for compatibility information.

Add to cart to download a free, fully-functional 30-day trial of the Marshall software. A link to download the software will be sent after checkout. Upon purchase, a USB security key and licensing information will be sent to unlock the software for permanent operation.

Features:

• Real-time stability and flow graph displayed throughout test
• Final reports automatically saved to computer, network, or cloud
• Calculations adhere to applicable ASTM and AASHTO standards
• Optimized for use with desktop, laptop, or tablet devices

Included Items:

• Marshall Data Acquisition Software

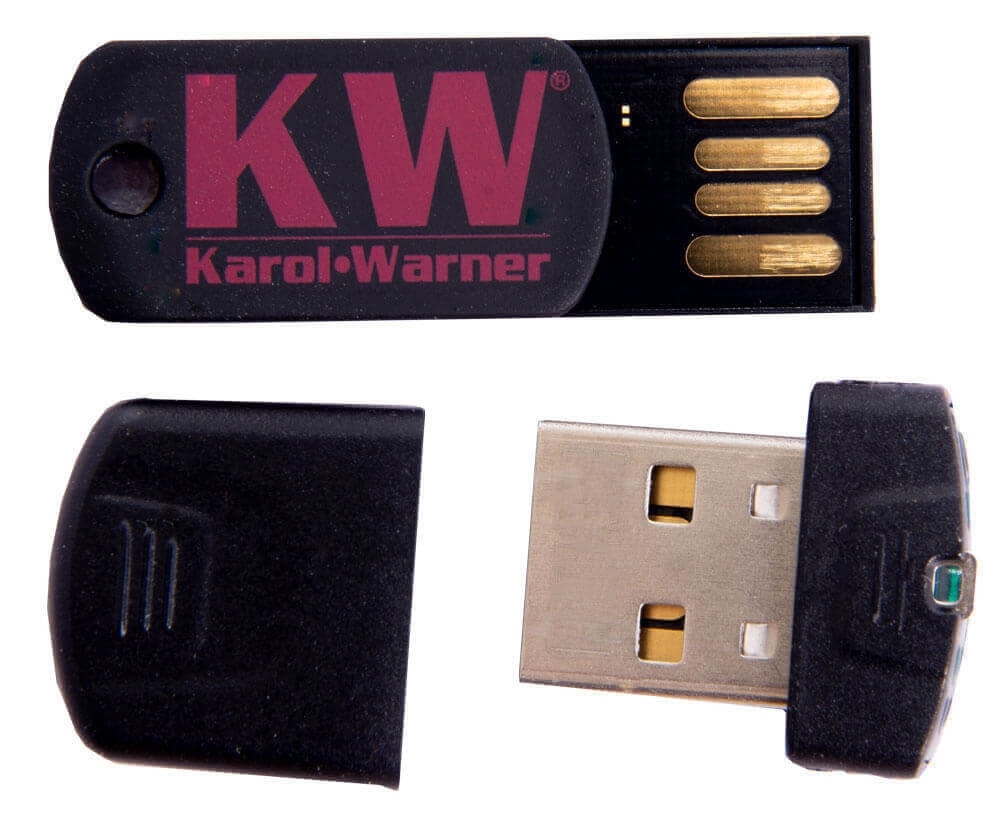

• USB flash drive with installation files

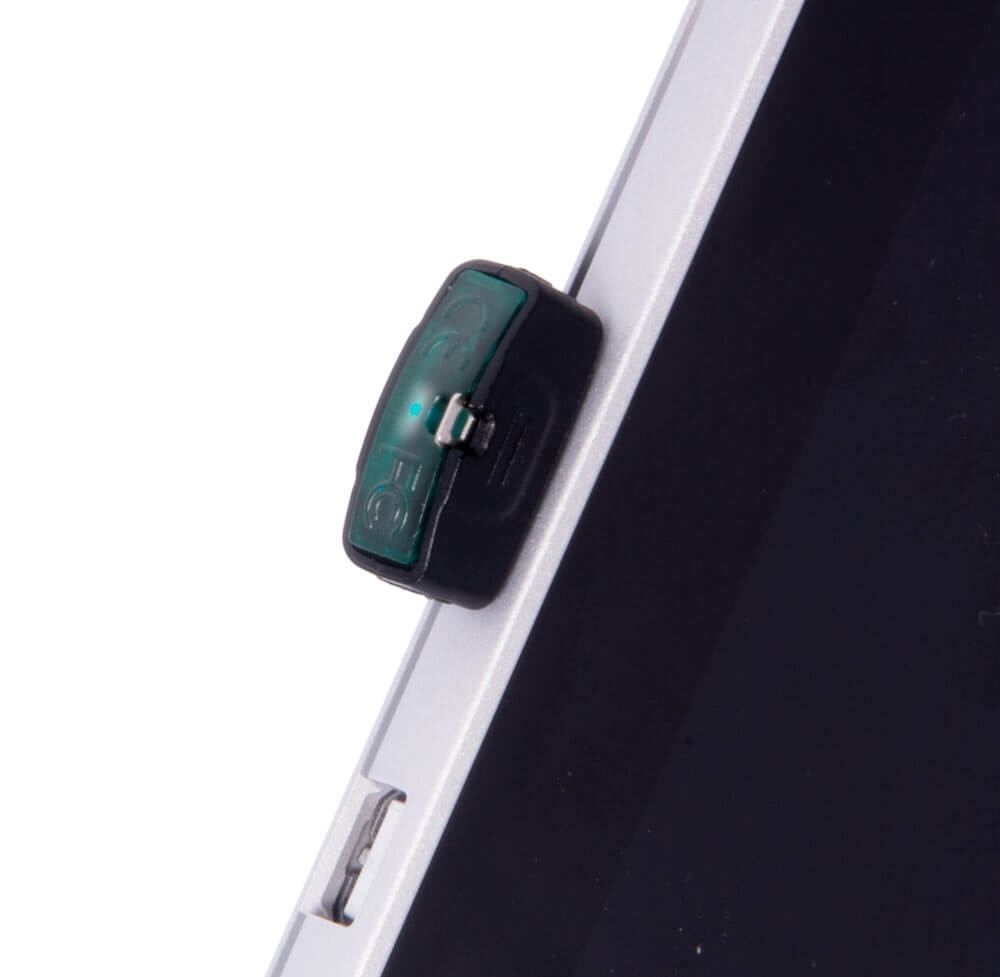

• USB security key
