Soil Cement Data Acquisition Software

Soil Cement Data Acquisition Software records axial load and vertical deformation data automatically and calculates the unconfined compressive strength of soil cement samples. Data entry fields and testing prompts are clear and intuitive to reduce user error and increase repeatability.

Soil Cement software runs on Windows XP or newer operating systems and can also be used on PC tablets and laptops with touchscreen control. Popup keyboards can be enabled for touchscreen computers or disabled when a PC with mouse and keyboard is used. Testing agency information, company logo, and equipment information can be entered and included on the testing reports.

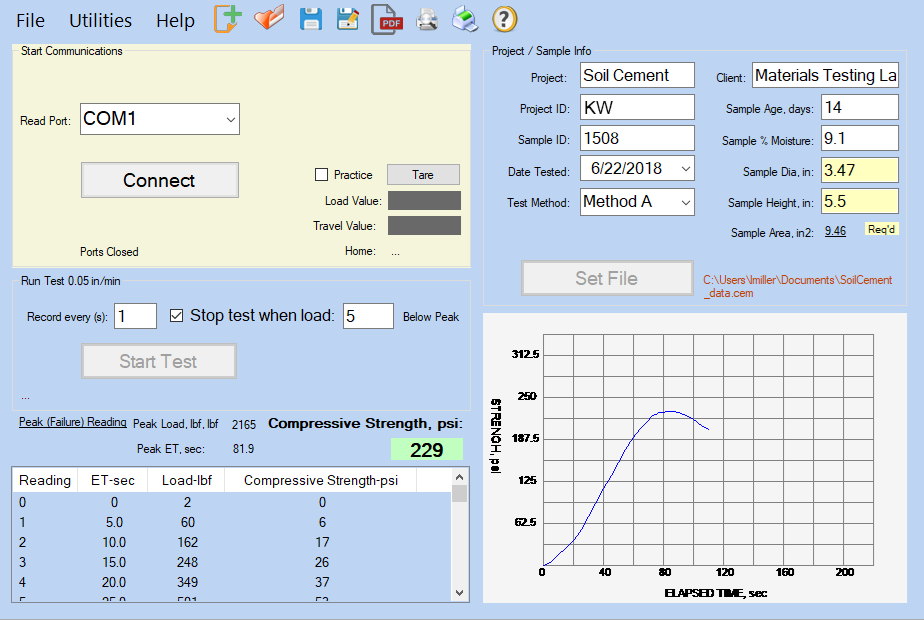

Graphing and calculations are performed in real-time throughout the test procedure and saved automatically at test completion in accordance with ASTM specifications. Testing agency information, sample data, final test results, and time versus compressive strength graph are included in the final test report. Testing information and report data can also be exported to a spreadsheet application or converted into a PDF document.

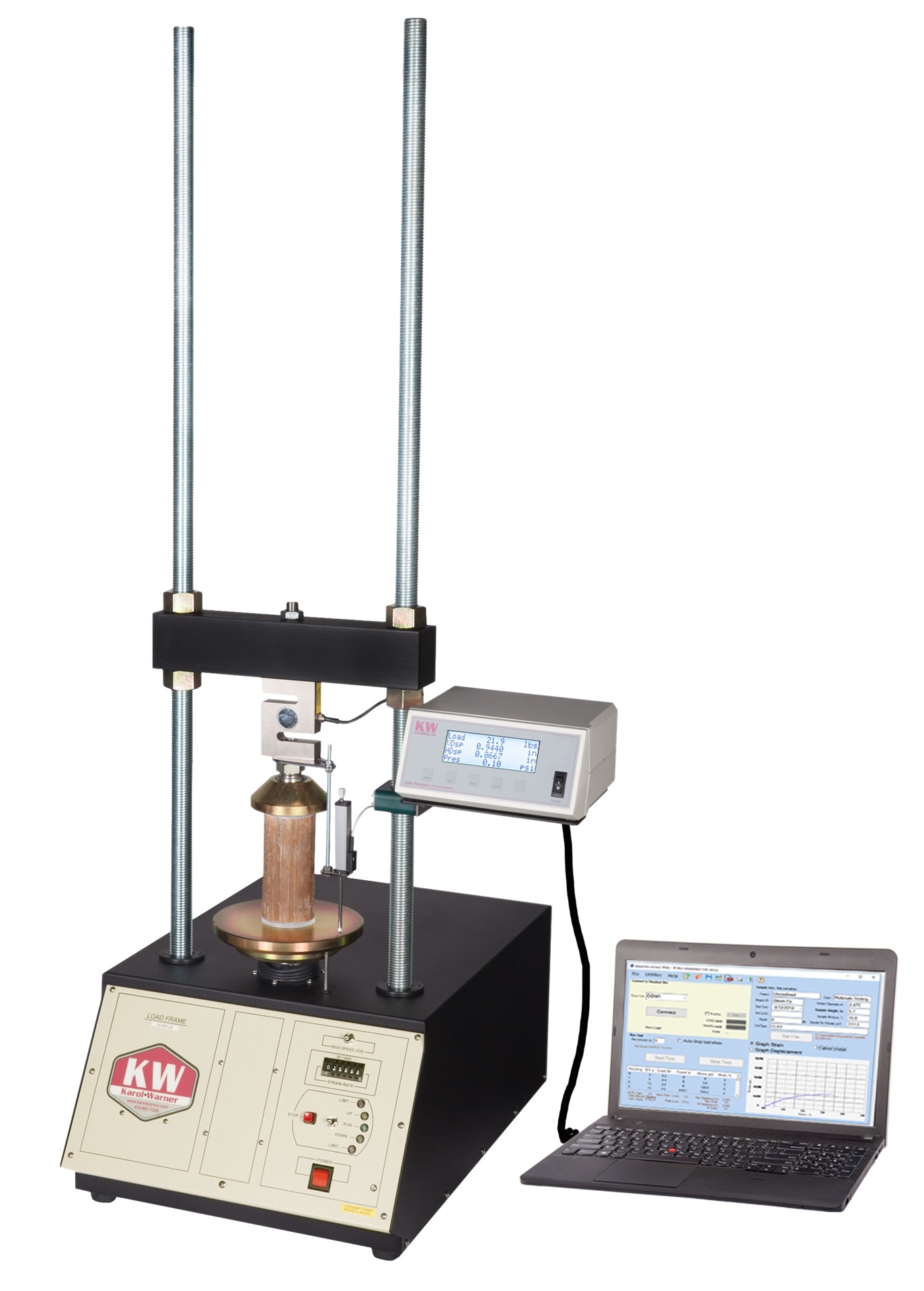

Soil Cement Data Acquisition Software requires a 6572 two-channel or 6574 four-channel Data Readout, 6145 10,00lbf Load Cell, 6153 2in Linear Variable Displacement Transducer, 7021-B Dial Indicator / Displacement Transducer Bracket, and 7041-B 4.25in Swivel Top Platen for operation. All required components are purchased separately. Customization using third-party load and displacement components is possible. Contact Karol-Warner for compatibility information.

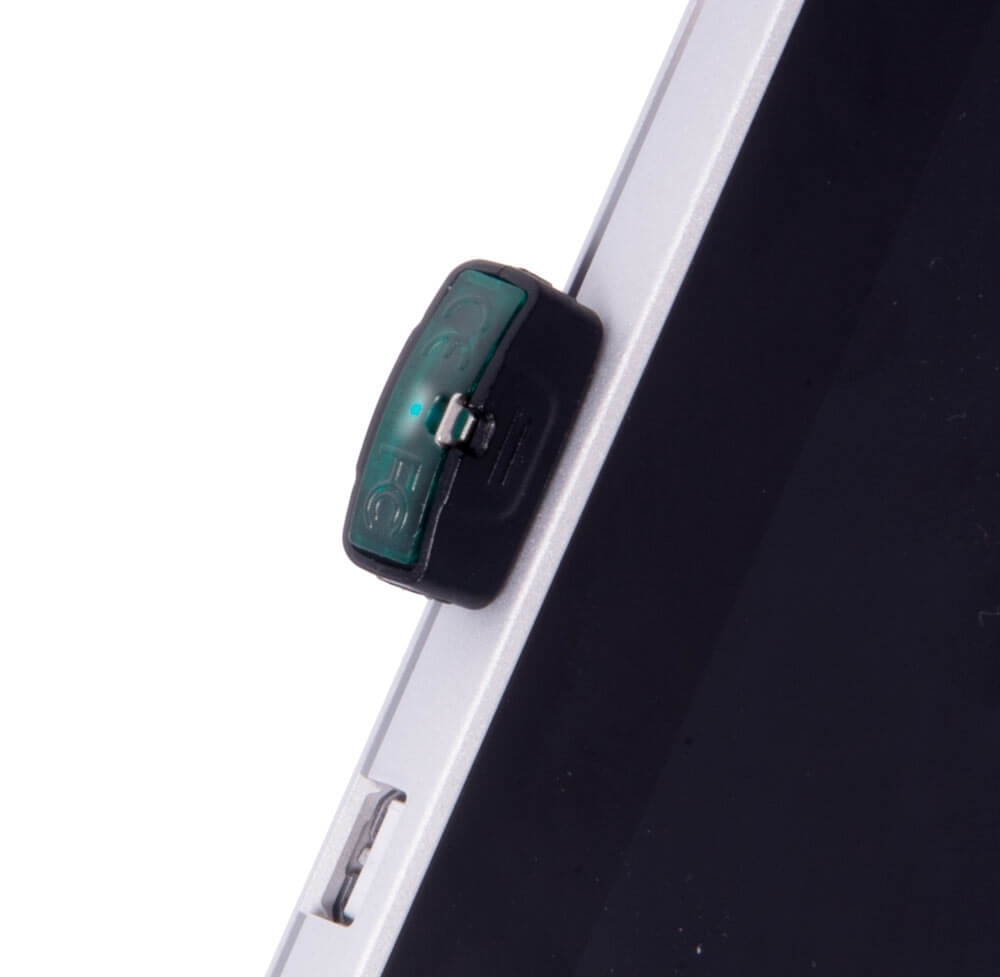

Add to cart to download a free, fully-functional 30-day trial of the Soil Cement software. A link to download the software will be sent after checkout. Upon purchase, a USB security key and licensing information will be sent to unlock the software for permanent operation.

Features:

• Real-time graphs displayed during test
• Final reports automatically saved to computer, network, or cloud
• Calculations and reports adhere to applicable ASTM specifications
• Optimized for use with desktop, laptop, or tablet devices using Windows operating systems

Included Items:

• Soil Cement Data Acquisition Software

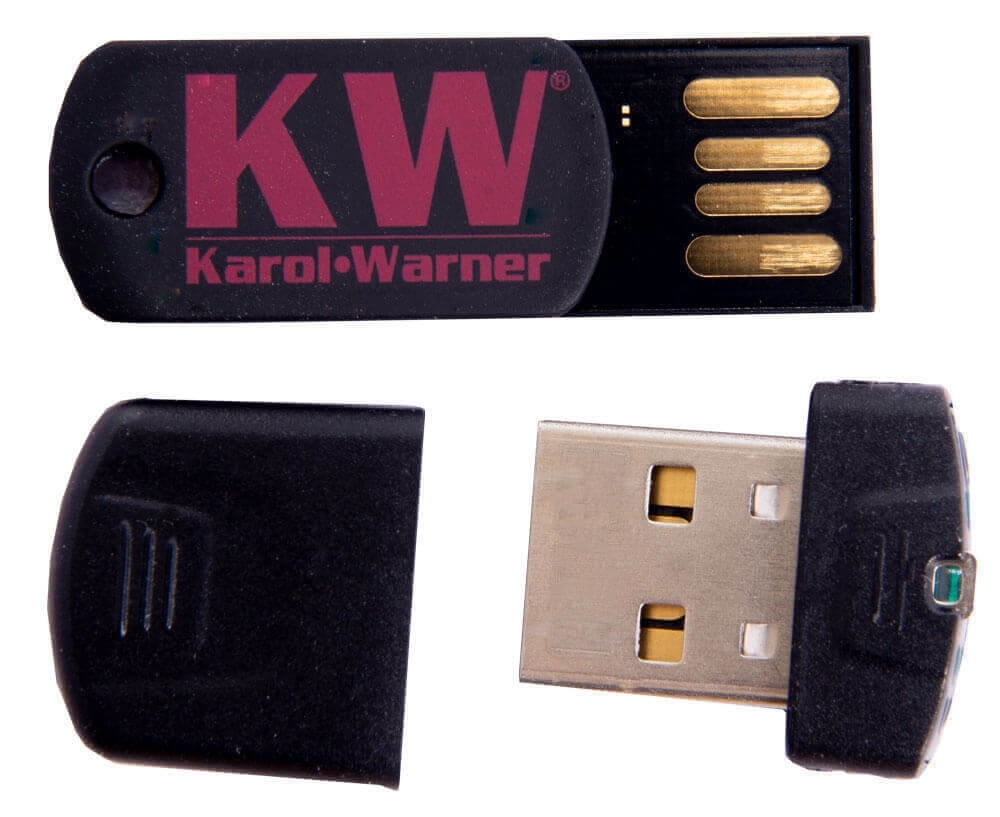

• USB flash drive with installation files
• USB security key
