Triaxial Data Acquisition Software records axial load and deformation data of UU, CU, CD, or unconfined soil samples automatically. The pore pressure values can be entered manually by the user or allow the software to recognize the pore pressure signal automatically when a pore pressure transducer is connected to a data readout box. Data entry fields and testing prompts are clear and intuitive to reduce user error and increase repeatability.
Triaxial Data Acquisition Software runs on Windows XP or newer operating systems and can also be used on PC tablets and laptops with touchscreen control. Popup keyboards can be enabled for touchscreen computers or disabled when a PC with mouse and keyboard is used. Testing agency information, company logo, and equipment information can be entered and included on the testing reports.

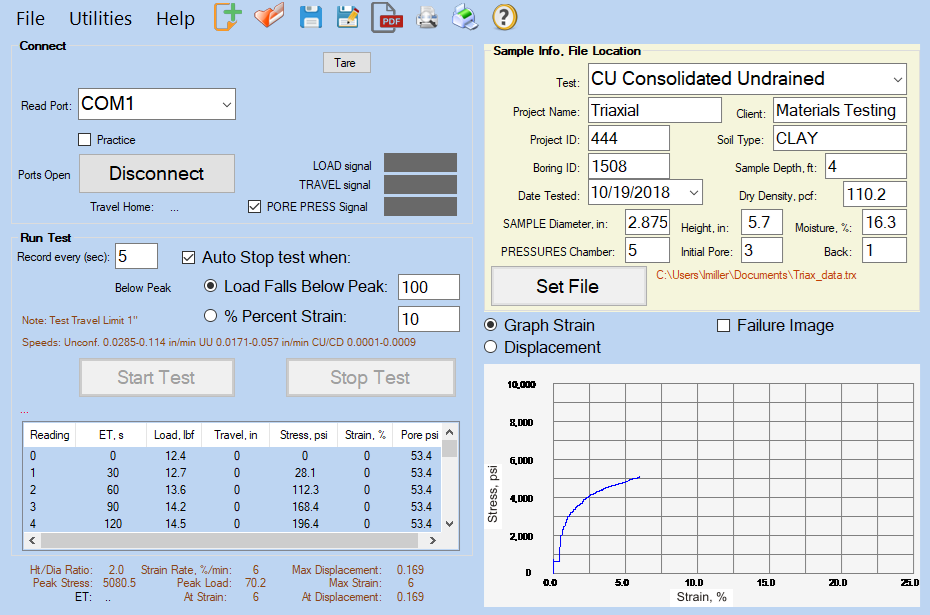

Graphing and calculations are performed in real-time throughout the test procedure and saved automatically at test completion in accordance with ASTM and AASHTO specifications. Testing agency information, sample data, final test results, displacement graph, and stress-strain curve are included in the final test report. Testing information and report data can also be exported to a spreadsheet application or converted into a PDF document.

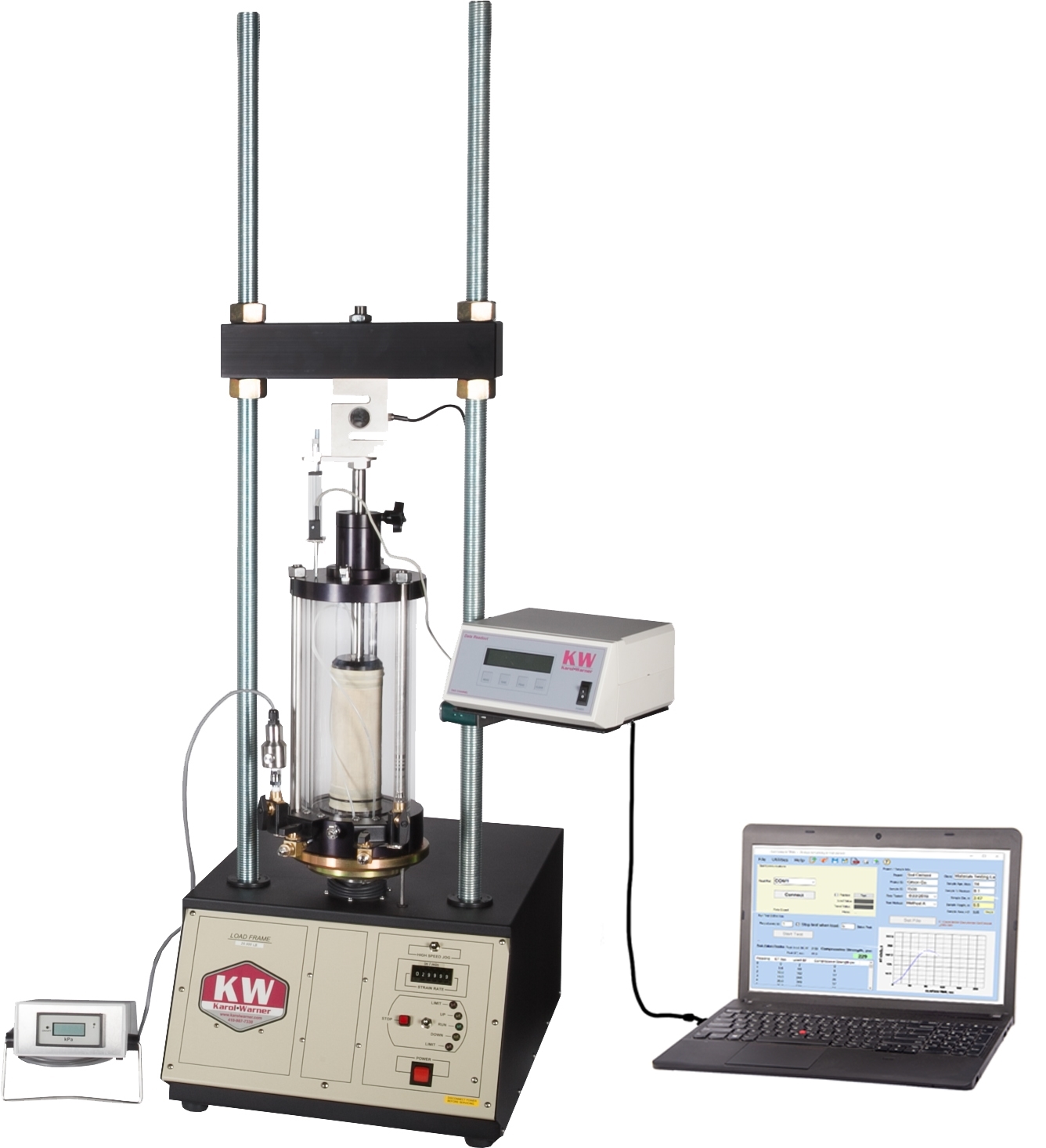

Triaxial Data Acquisition Software requires a 6572 two-channel or 6574 four-channel Data Readout, 6141 1,000lbf Load Cell, 6153 2in Linear Variable Displacement Transducer, 7021-A Dial Indicator/Displacement Transducer Bracket for operation. All required components are purchased separately. Customization using third-party load and displacement components is possible. Contact Karol-Warner for compatibility information.

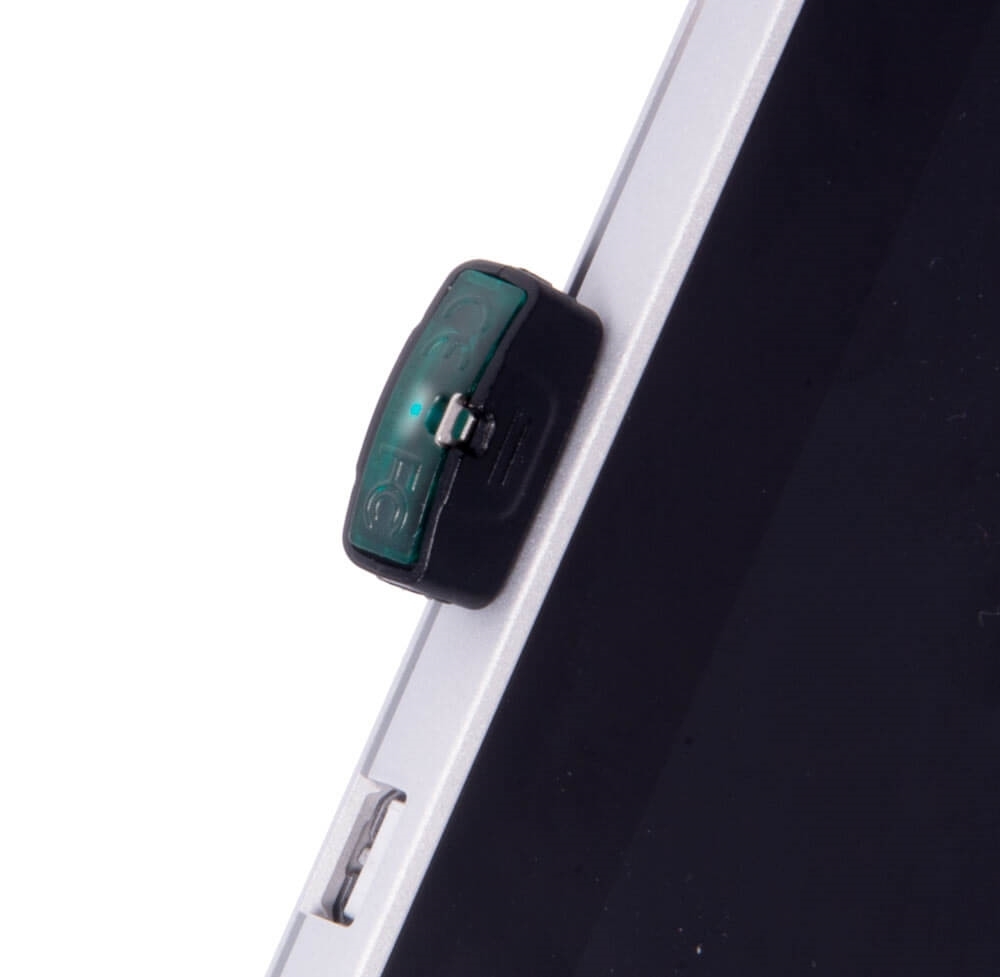

Add to cart to download a free, fully-functional 30-day trial of the Triaxial Data Acquisition Software. A link to download the software will be sent after checkout. Upon purchase, a USB security key and licensing information will be sent to unlock the software for permanent operation.
- Real-time strain-stress curve displayed during testing
- Final reports automatically saved to computer, network, or cloud
- Calculations and reports adhere to applicable ASTM and AASHTO standards
- Optimized for use with desktop, laptop, or tablet devices using Windows operating systems
- Allows failure images to be imported into test reports
- Triaxial Data Acquisition Software
- USB installation files

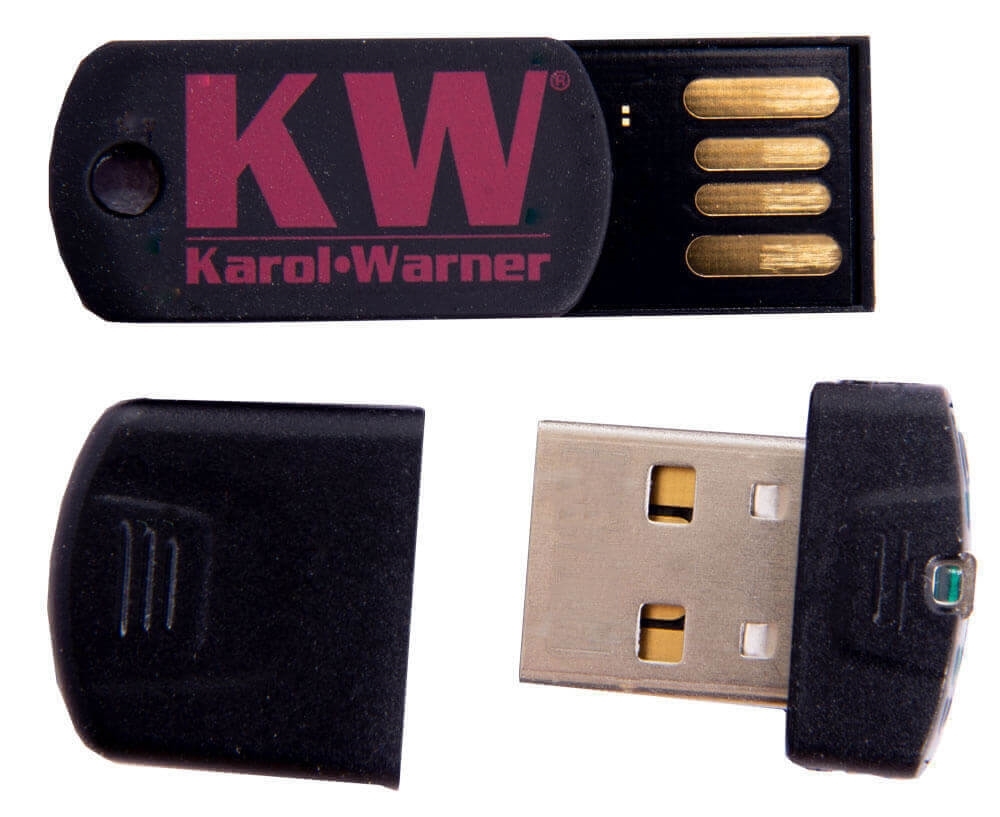

- USB security key
