Unconfined Compressive Strength Data Acquisition Software

Unconfined Compressive Strength Data Acquisition Software records axial load and rate of deformation for cohesive soil samples automatically. Data entry fields and testing prompts are clear and intuitive to reduce user error and increase repeatability.

Unconfined Compressive Strength software runs on Windows XP or newer operating systems and can also be used on PC tablets and laptops with touchscreen control. Popup keyboards can be enabled for touchscreen computers or disabled when a PC with mouse and keyboard is used. Testing agency information, company logo, and equipment information can be entered and included on the testing reports.

Graphing and calculations are performed in real-time throughout the test procedure and saved automatically at test completion in accordance with ASTM and AASHTO specifications. Testing agency information, sample data, final test results, and corresponding graph are included in the final test report. Testing information and report data can also be exported to a spreadsheet application or converted into a PDF document.

Unconfined Compressive Strength Data Acquisition Software requires a 6572 two-channel or 6574 four-channel Data Readout, 6141 1,000lbf Load Cell, 6153 2in Linear Variable Displacement Transducer, 7021-A Dial Indicator/Displacement Transducer Bracket, and 3095 Plastic Disc for Unconfined Soil Tests for operation. All required components are purchased separately. Customization using third-party load and displacement components is possible, Contact Karol-Warner for compatibility information.

Add to cart to download a free, fully-functional 30-day trial of the Unconfined Compressive Strength software. A link to download the software will be sent after checkout. Upon purchase, a USB security key and licensing information will be sent to unlock the software for permanent operation.

Features:

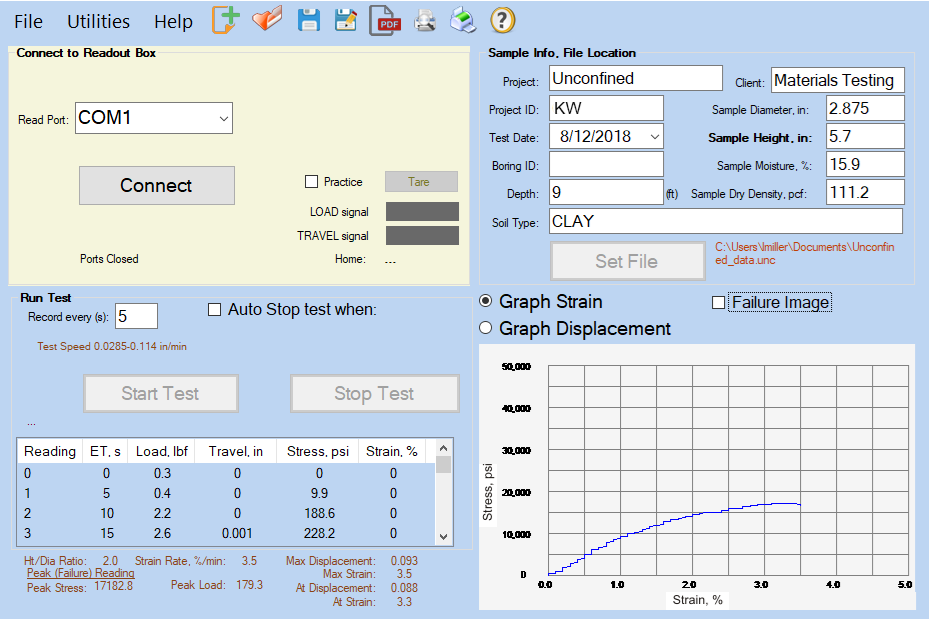

• Real-time strain and displacement graphs displayed during testing
• Final reports automatically saved to computer, network, or cloud
• Calculations and reports adhere to applicable ASTM and AASHTO standards
• Optimized for use with desktop, laptop, or tablet devices using Windows operating systems
• Allows failure images to be imported into test reports

Included Items:

• Unconfined Compressive Strength Data Acquisition Software
• USB flash drive with installation files

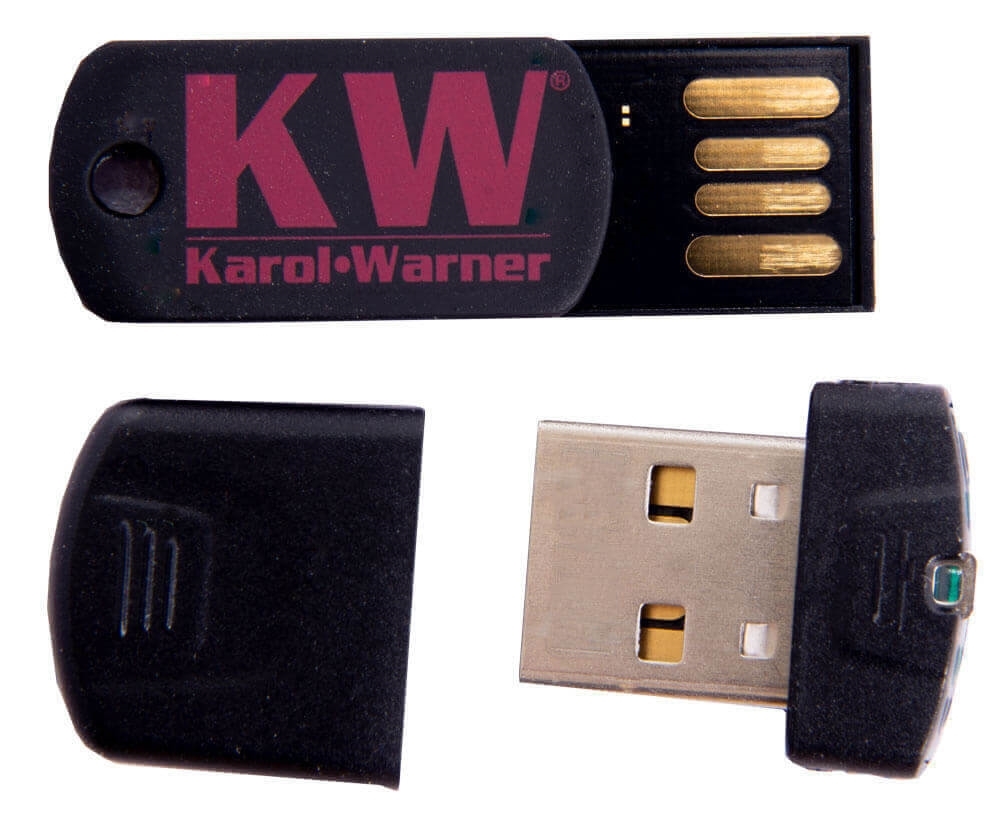

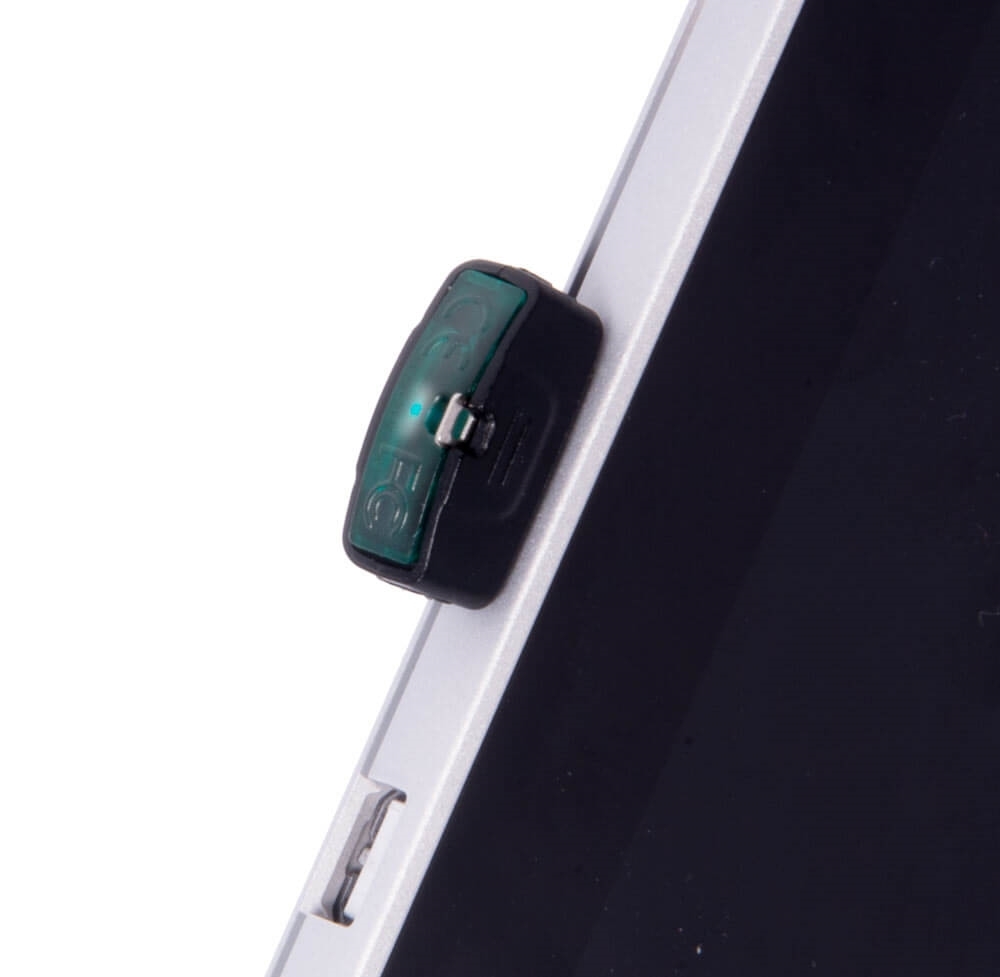

• USB security key
