    Digital Pneumatic Direct / Residual Shear Machine (Shear Box sold separately)
    Digital Pneumatic Direct / Residual Shear Machine (Shear Box sold separately)

    Direct Shear Machines (Pneumatic)

    • Product Manual, Standard Pneumatic Direct Shear MachineProduct Manual, Standard
    • Product Manual, Digital Pneumatic Direct Shear MachineProduct Manual, Digital
    Meets Standard(s)
    • AASHTO T 236,
    • ASTM D3080

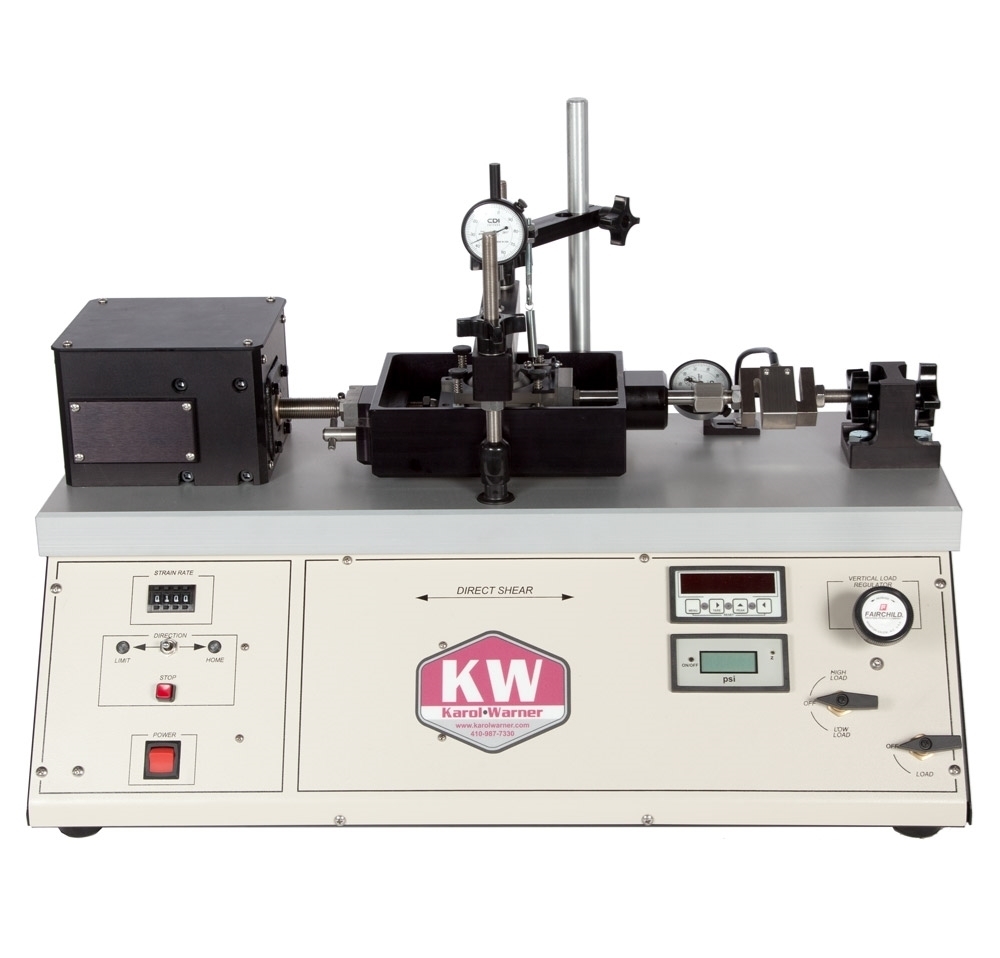

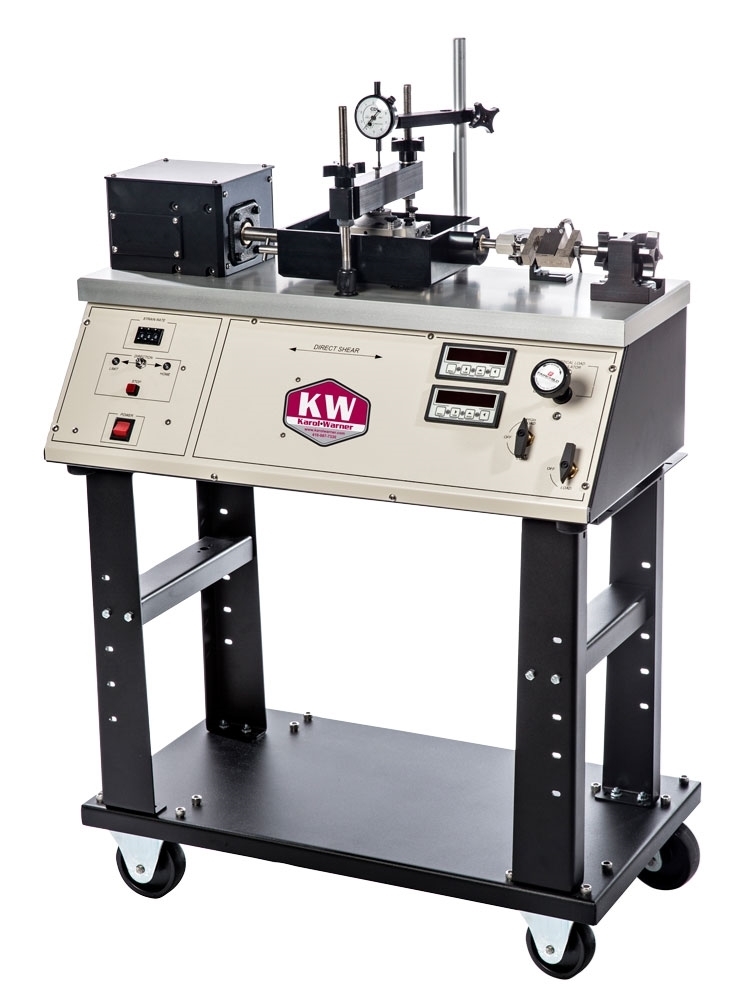

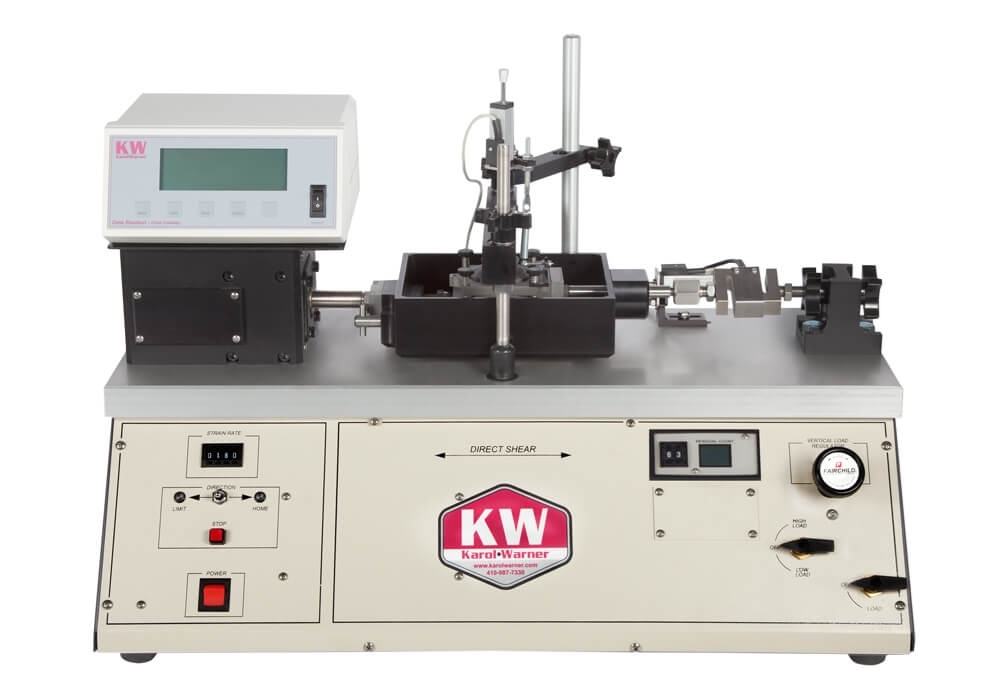

    Digital Pneumatic Direct / Residual Shear Machine (Shear Box sold separately)Standard Pneumatic Direct Shear Machine (Shear Box sold separately)Standard Pneumatic Direct Shear Machine (shown with Rolling Cart and Shear Boxsold separately)360 Image of 2001-D
    Standard Pneumatic Direct Shear Machine

    Standard Direct Shear Machine, Pneumatic (110V / 50-60Hz)

    2001
    $8,000.00
    Standard Pneumatic Direct Shear Machine

    Standard Direct Shear Machine, Pneumatic (220V / 50-60Hz)

    2001F
    $8,000.00
    Digital Direct Shear Machine, Pneumatic (110V / 50-60Hz)

    Digital Direct Shear Machine, Pneumatic (110V / 50-60Hz)

    2001-D
    $9,000.00
    Digital Direct Shear Machine, Pneumatic (220V / 50-60Hz)

    Digital Direct Shear Machine, Pneumatic (220V / 50-60Hz)

    2001-DF
    $9,000.00
    • Description
    • Specifications
    • Video
    • Questions?

    Pneumatic Direct / Residual Shear Machines utilize a pneumatic loading system, which eliminates the need to apply pressure to a specimen with multiple weights.

    The machine uses two pistons to apply loads: a smaller diameter rolling diaphragm piston for lighter loads of 4lb to 100lb, and a larger diameter piston for loads up to 1,500lb. The maximum shear displacement is 0.8in (20.3mm). Strain rate is easily set using the digital thumbwheels and can be controlled from 0.0001—0.3in/min (0.0025—7.62mm/min). A cabinet constructed from durable steel protects the machine against harsh lab settings and the included Teflon®-coated anodized aluminum water chamber is designed to resist corrosion. Units include a 1,500lbf Load Cell and 15ft (4.6m) of air supply tubing. Direct Shear Boxes, sold separately, are Teflon®-coated anodized aluminum to resist corrosion and available in a wide range of sizes.

    2001 / 2001F Standard Pneumatic Direct Shear Machine uses dial indicators that measure vertical and shear displacement.

    2001-D / 2001-DF Digital Pneumatic Direct Shear Machine utilizes an S-type load cell to measure shear load. Horizontal and vertical measurements are taken by a Linear Variable Displacement Transducer (LVDT). Four-Channel Data Readout displays load and displacement values. Data is transferred to the user’s PC via Mini-USB and is uploaded in ASCII format to a spreadsheet program. This model also performs residual shear functions on soil specimens.

    Features:

    • Displays various test parameters
    • Analog or digital consolidation/shear displacement models available
    • Pneumatic loading system uses pistons instead of weights
    • Self-contained unit's small footprint requires minimal lab floorspace
    • Rugged all-steel construction

    Included Items:

    • Standard Pneumatic Direct Shear Machine
      • 0.5in Dial Indicator, 0.5 x 0.0001in (Range x Divisions)
      • 1in Dial Indicator, 1 x 0.001in (Range x Divisions)
    • Digital Pneumatic Direct Shear Machine
      • Four-Channel Data Readout
      • Two 1in Linear Variable Displacement Transducers
      • GetData Software
    • 1,500lbf Load Cell
    • Tubing - 15ft (4.6m)

    Accessories:

    • 2000-75 Shear Box Counterbalance supports the top half of the Direct Shear Box to offset weight during testing
    • 2099 Rolling Cart for Shear Machines positions the unit to an optimal height for testing and allows for mobility
    • 6756 Direct / Residual Shear Data Acquisition Software records specimen information and real-time test data, calculate results and prepares reports following ASTM and AASHTO requirements
    • Data Readouts are available in two and four-channel models and feature analog to digital converters for each channel
    • 6152 1in Linear Variable Displacement Transducer measures sample deformation or movement during soil tests
    • 6820 Digital Dial Indicator - 0.6 x 0.0001in (Range x Resolution) quickly and easily converts inches to millimeters
    • 6830 Digital Dial Indicator - 1 x 0.0001in (Range x Resolution) allows for the conversion of inches to millimeters at the touch of a button
    • 20020 Nylon Alignment Screw is used with a Shear Box and can be ordered as a replacement part
    • Shear Boxes used in testing direct shear of soil specimens
    • Cutters are for trimming soil samples to a precise size
    • Extruders allow for keeping soil specimens intact when removing
    Shear Capacity 1,500lbf (6.67kN)
    Rate of Load ±1%
    Strain Rate 0.0001—0.3in/min (0.0025—7.62mm/ min)
    Compressed Air Required Requires 90psi (6.2bar)
    Electrical

    Model 2001: 110V / 60Hz

    Model 2001F: 220V / 50Hz

    Model 2001-D: 110V / 60Hz

    Model 2001-DF: 220V / 50Hz

    Product Dimensions 36 x 14.5 x 54in (914 x 368 x 137mm) WxDxH
    Estimated Shipping Weight 175.0lb (79.38kg)

    Please enter your questions/comments and contact information below. A Karol-Warner customer service representative will respond during business hours (8am - 5pm EST, Monday through Friday).
