Pore Pressure Measurement Device

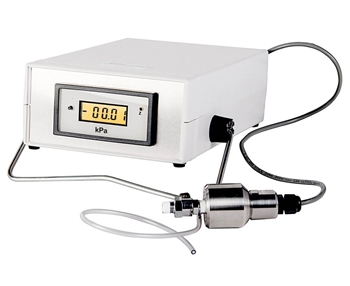

This Pore Pressure Measurement Device includes a Pore Pressure Transducer & Digital Readout used to monitor pore-water pressures in soil samples for triaxial testing and permeability testing. Measures to 150psi (1,034kPa) with 0.01psi resolution. The Transducer attaches to the cap or pedestal drainage valves of Karol-Warner Triaxial Cells or Flexible Wall Permeability Cells. It is equipped with a deairing valve and has a 4.5in (114.3mm) LCD digital display. The digital readout is calibrated to ± 0.5% of full-scale accuracy and housed in a stand-alone benchtop cabinet for easy portability in the lab.

Features:

• Digital readout inside a stand-alone cabinet
• Portable and ideal for use with both Triaxial and Permeability Cells
• Easy-to-read digital display

Included Items:

• Pore Pressure Transducer & Digital Readout (psi or kPa)

Accessories:

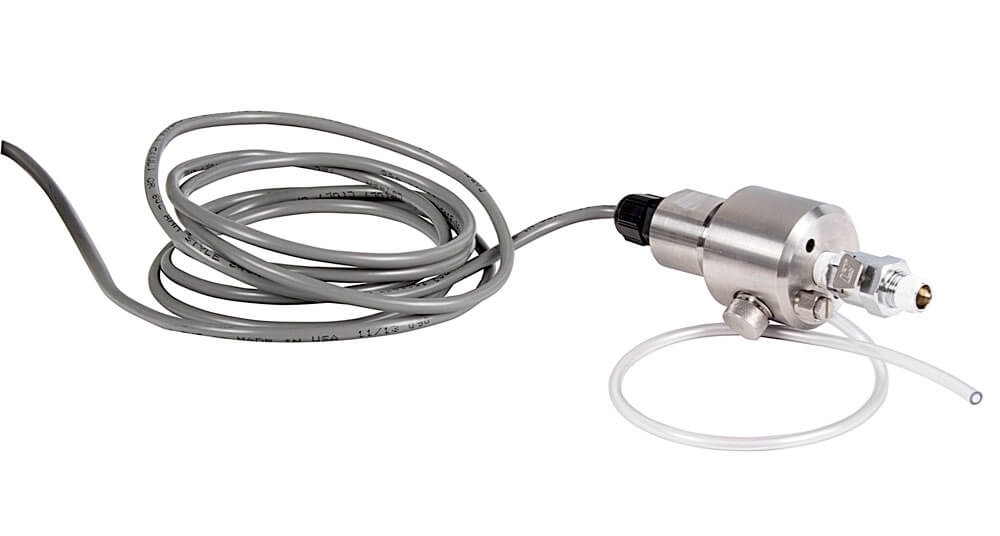

• Pore Pressure Transducer with Deairing Block for precise measurement of pore water pressure in the soil sample.
