    Toxic Interface Units
    Toxic Interface Units

    Toxic Interface Units

    • Product ManualProduct Manual
    Toxic Interface Units180cc Toxic Interface Unit500cc Toxic Interface Unit180cc Toxic Interface Unit with Viton diaphragmViton diaphragm
    500cc Toxic Interface Unit

    500cc Toxic Interface Unit

    3900
    $955.00
    180cc Toxic Interface Unit

    180cc Toxic Interface Unit

    3910
    $856.00
    • Description
    • Specifications
    • Questions?

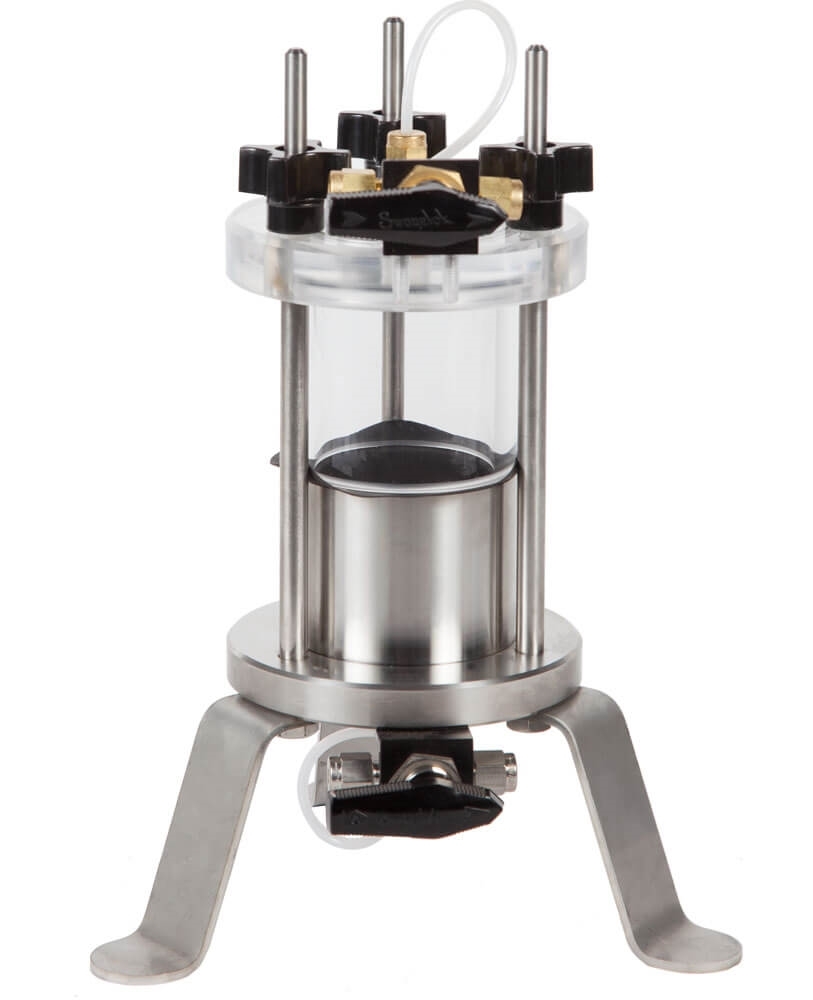

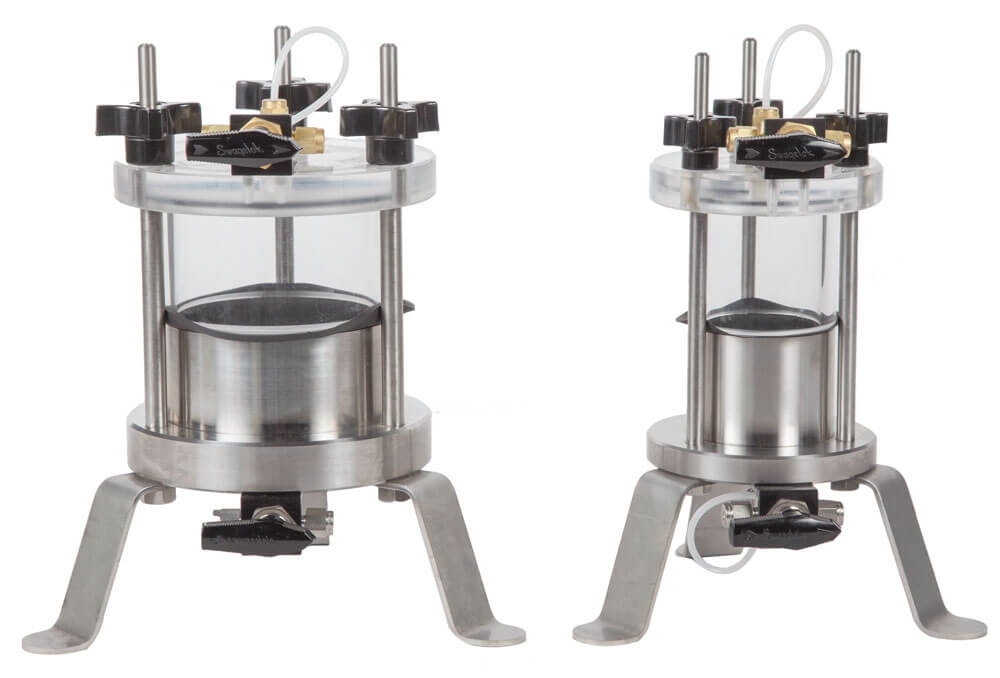

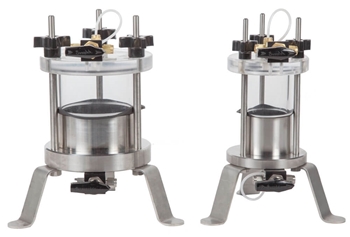

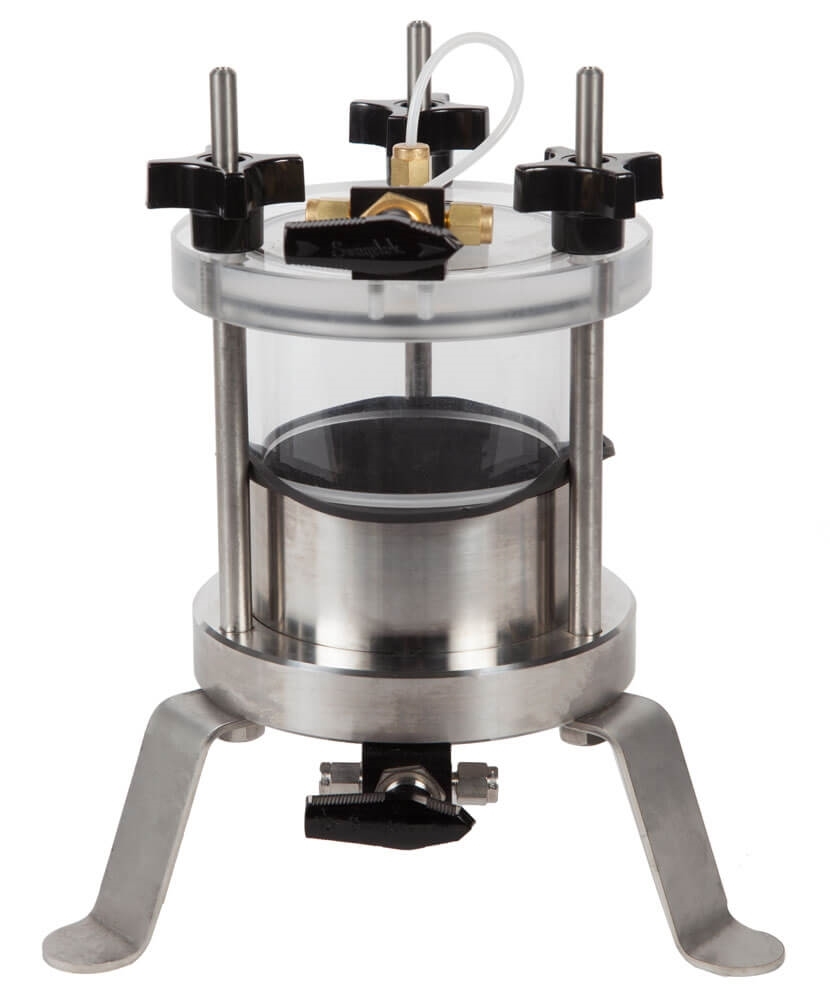

    Toxic Interface Units allow safe permeability testing of soils using toxic chemicals. Two chambers are required between the Control Panel and Permeameter. This prevents the chemicals from entering the panel and venting into the atmosphere and also isolates the chemical in the sample and the lower half of each interface chamber. This section of the chamber contains a stainless steel tube, base, and a zero volume change ball valve. The tube and base are sealed with an O-Ring.

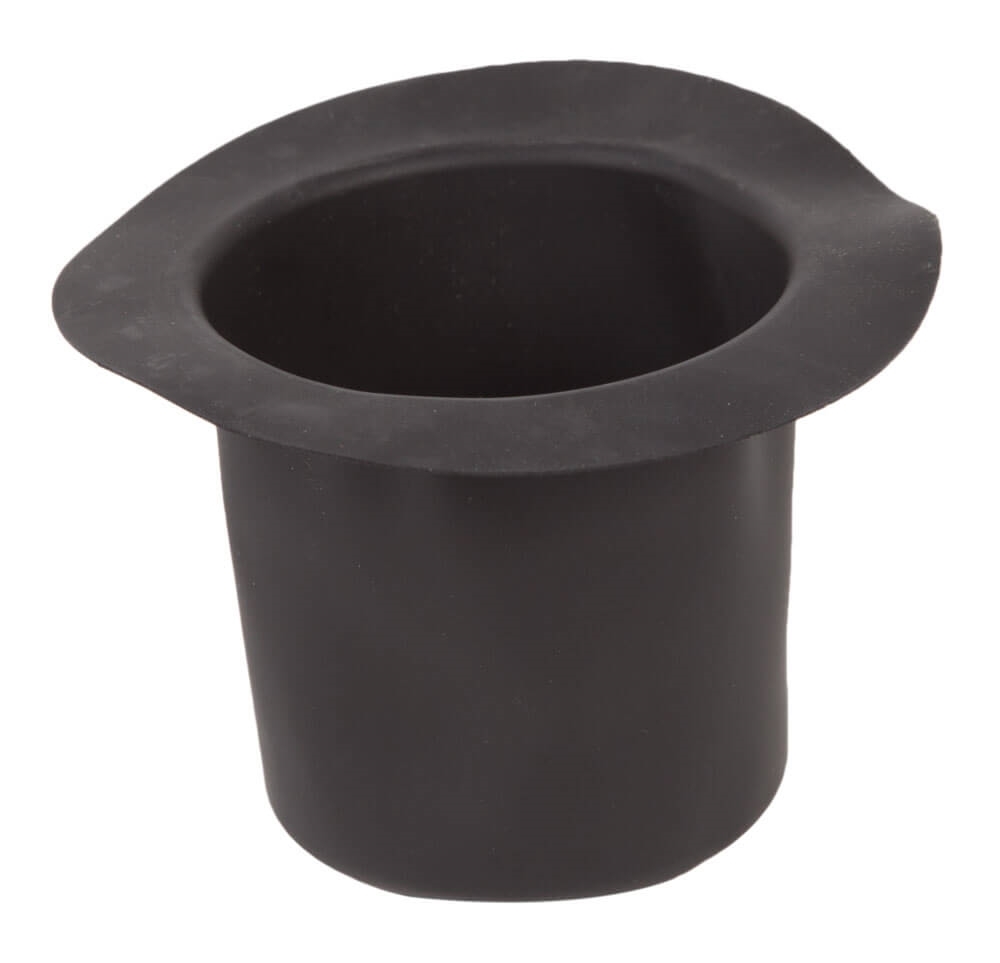

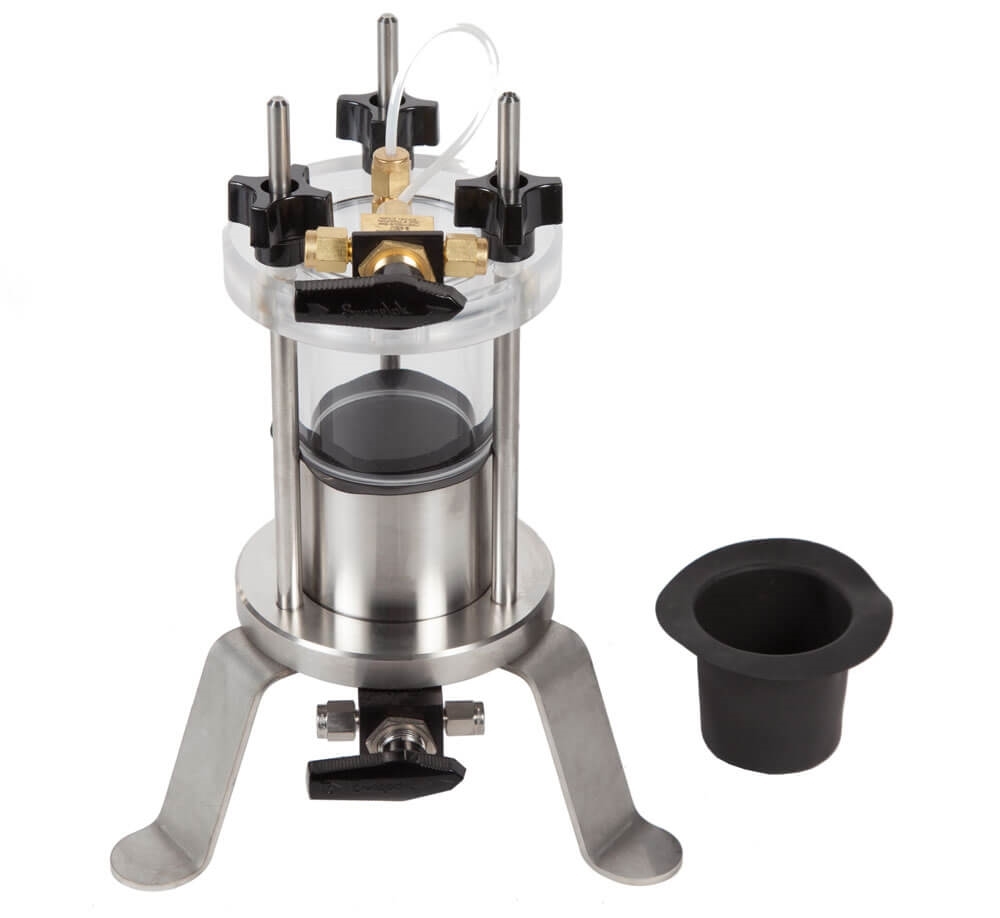

    The units are equipped with a diaphragm which is used to isolate the chemical from the water within the chamber. A clear polycarbonate top section is used for viewing the diaphragm position.

    Features:

    • Allows safe handling of potentially toxic permeants
    • Stainless steel and contact parts resist many corrosive liquids

    Included Items:

    • Toxic Interface Unit (180 or 500cc)
    • (4) 5ft long Tubing, 1/8in OD
    Product Dimensions

    Model 3900: 6.5 x 7.25 x 10.1in (165 x 184 x 257mm) WxDxH

    Model 3910: 5.9 x 6.3 x 10.1in (150 x 160 x 257mm) WxDxH

    Estimated Shipping Weight

    3900: 10.0lb (4.54kg)

    3910: 6.0lb (2.72kg)
