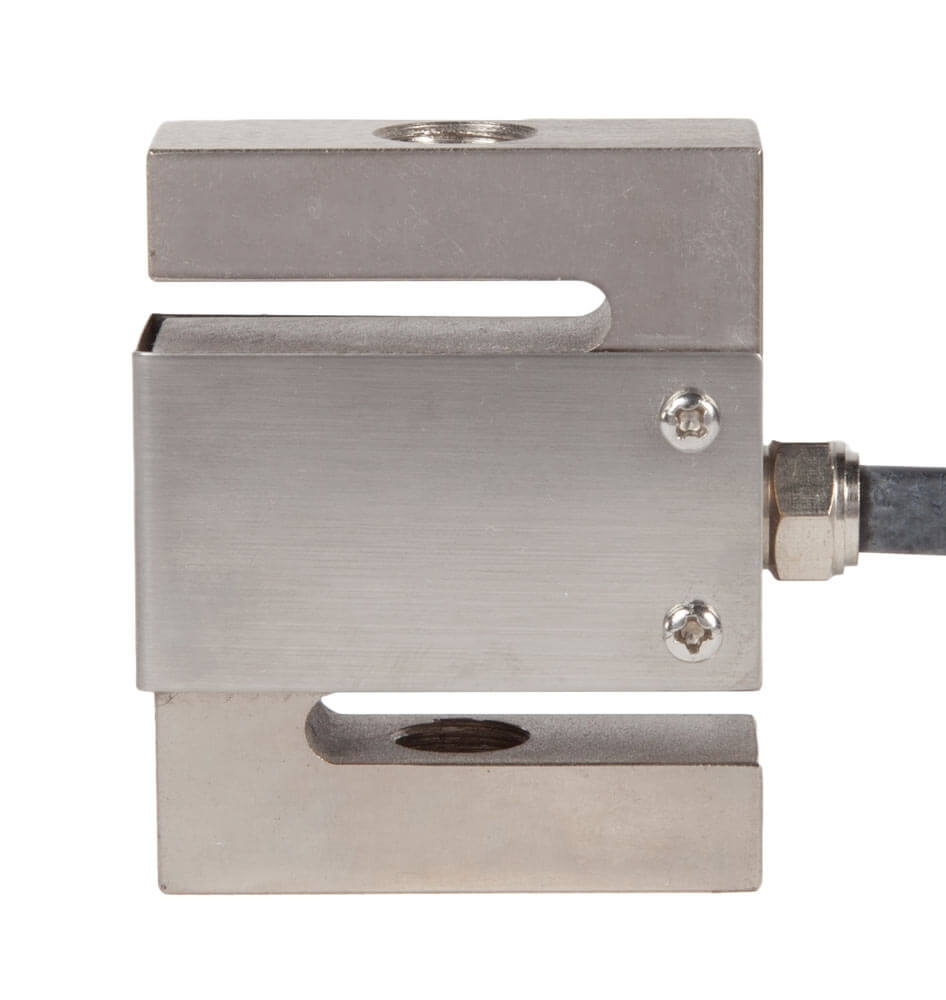

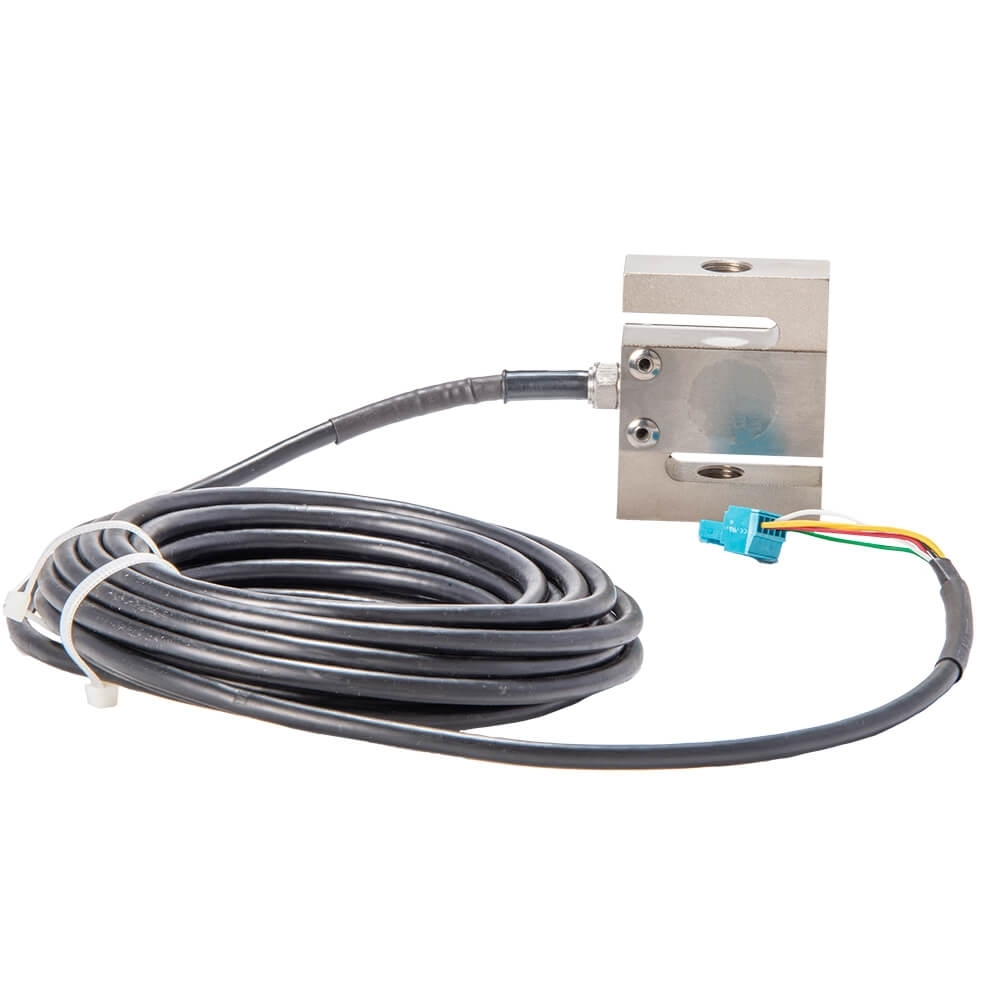

This S-Type Load Cell has a capacity of 1,500lbf (6.7kN) can be used in a variety of soil testing applications to measure compression or tension loads. Top and bottom mounting holes have 1/2in x 20tpi threads. Load Cells can be connected to two-channel or four-channel Data Readout to display load values and transfer data to a computer.
- Load capacity of 1,500lbf (6.7kN)
- Four-wire leads for data output
- Threaded mounting holes
- Machined from rugged stainless steel or plated nickel alloy
- Data Acquisition Software records specimen information and real-time test data for a wide range of soil and asphalt laboratory tests and prepares reports following applicable ASTM and AASHTO requirements
- Data Readouts display real-time data
- 7026-A Loading Button is a point of contact when performing triaxial and asphalt tests and is sold separately
