    • Triaxial Cell, 1.4 to 2.0in dia. Specimens
    Triaxial Cell, 1.4 to 2.0in dia. Specimens

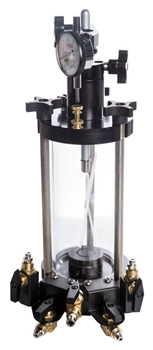

    Triaxial Cell shown with Pedestal and Dial Indicator

    Triaxial Cell, 1.4 to 2.0in dia. Specimens

    3410
    $1,250.00
    Meets Standard(s)
    • AASHTO T 294,
    • AASHTO T 296,
    • ASTM D2850,
    • ASTM D4767
    • Description
    • Specifications
    • Compatibility Table
    • Questions?

    This Triaxial Cell is used for triaxial shear testing of soil specimens 1.4 to 2in (35.6 to 50.8mm) diameter and can do double-duty for testing flexible wall permeability soil samples. The clear, heavy acrylic chamber wall is rated to 150psi (10.3bar) pressure. The cell’s precision-ground polished stainless steel load piston features an internal lubed and sealed u-cup and nylon sleeve bearings which ensures low friction. The Triaxial Cell features quality zero-volume change brass ball valves and fittings. Heavy, machined aluminum base and top are anodized to resist corrosion.

    Test Cell Kits (sold separately) contain all components required to outfit the Triaxial Cell to test for a particular specimen size. Kits include a Top Cap and Bottom Pedestal, two Porous Stones, four Sealing O-Rings, and two 0.012in Latex Membranes. The pedestal has flow-through lines and is keyed to prevent turning during installation. Components are also available individually. At least one Kit or the necessary individual components are required for the proper operation of the Triaxial Cell. Select the desired Test Cell Kit from the drop-down menu above or the Triaxial Cell Accessories link below.

    Features:

    • Clear acrylic cell walls are pressure rated to 150psi
    • Rugged, corrosion-resistant anodized aluminum base and top
    • High-quality zero-volume change valves and fittings in brass

    Included Items:

    • Triaxial Cell
    • Fluid lines
    • Dial Indicator Bracket

    Accessories:

    • 3230M or 3230A Triaxial / Permeability Control Panels regulate fluid and air pressures in the Triaxial Cells
    • 6758 Triaxial Data Acquisition Software records specimen information and real-time test data, calculate results, then prepares reports following ASTM and AASHTO requirements
    • Mechanical Dial Indicators measure the vertical deformation of a tested sample
    • Digital Dial Indicators convert readings from inches to millimeters at the touch of a button
    • Linear Variable Displacement Transducers are ideal for measuring sample deformation or movement
    • Data Readouts feature built-in peak memory hold and tare functions
    • 6630-C Pore Pressure Transducer & Readout monitors pore water pressures and displays data on the included readout
    • 3872B or 3873B Deairing Tanks use a vacuum to remove air from water for use in triaxial and flexible wall permeability testing
    • Triaxial Cell Accessories include additional Test Cell Kits and other items used in the preparation and testing of soil specimens, such as Porous Stones, Latex Membranes, and O-Rings
    Specimen Size 1.4 - 2.0in (35.6 - 50.8mm)
    Pressure Rating 150psi
    Chamber Dimensions 2.375 x 10.75in (60.3 x 273.1mm) Dia. x H
    Estimated Shipping Weight 12.0lb (5.44kg)

    Triaxial Cell Compatibilty Chart

    Please enter your questions/comments and contact information below. A Karol-Warner customer service representative will respond during business hours (8am - 5pm EST, Monday through Friday).

    Accessories
    Master Panel with psi Pressure Readout

    Master Panel with psi Pressure Readout

    $3,800.00
    Add-On Panel for Master Panel Readout

    Add-On Panel for Master Panel Readout

    $3,200.00
    Triaxial Data Acquisition Software

    Triaxial Data Acquisition Software

    $725.00
    Digital Dial Indicator

    Digital Dial Indicators

    From $400.00
    0.5in Linear Variable Displacement Transducer

    Linear Variable Displacement Transducers

    From $385.00
    Two Channel Data Readout

    Data Readouts

    From $1,190.00
    Pore Pressure Transducer & kPa Digital Readout

    Pore Pressure Measurement Device

    From $855.00
    1.5gal (5.7L) Deairing Tank with Valves, Fittings & Lines

    Deairing Tanks

    From $480.00
    1.4in Test Cell Kit

    1.4in Test Cell Kit

    $205.00
    1.5in Test Cell Kit

    1.5in Test Cell Kit

    $205.00
    1.875in Test Cell Kit

    1.875in Test Cell Kit

    $208.00
    2in Test Cell Kit

    2in Test Cell Kit

    $208.00
