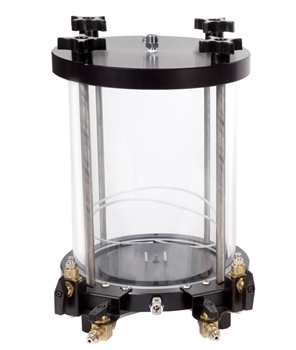

    Flexible Wall Permeability Cell, 1.4 to 6.0in dia. Specimens (Brass Valves)
    Flexible Wall Permeability Cell

    Flexible Wall Permeability Cell, 1.4 to 6.0in dia. Specimens (Brass Valves)

    3310
    $1,040.00
    Meets Standard(s)
    • ASTM D5084
    • Description
    • Specifications
    • Compatibility Table
    • Questions?

    This Flexible Wall Permeability Cell accommodates soil specimens 1.4 to 6in (35.6 to 152.4mm) in diameter. Permeability Cells consist of a 150psi rated heavy-wall acrylic chamber and an anodized aluminum base and top. Cells are fitted with precision zero-volume change ball valves and rugged quality brass fittings.

    The Permeability Cell can be purchased individually or with a Test Cell Kit, sold separately. One Kit is required for the proper operation of the Test Cell. Kits include a Top Cap and Bottom Pedestal, two Porous Stones, four Sealing O-Rings, and two 0.012in (0.03mm) Latex Membranes. Sample preparation tools, individual components, and complete kits can be found on the Flexible Wall Permeability Cell Accessories page. The Flexible Wall Permeability Cell Accessories Chart makes it easy to determine the necessary accessories and components for your samples.

    Features:

    • A clear acrylic chamber allows viewing while testing
    • Rugged, corrosion-resistant anodized aluminum base and top
    • High-quality zero-volume change brass ball valves and fittings

    Included Items:

    • Flexible Wall Permeability Cell
    • Fluid lines

    Accessories:

    • Triaxial / Permeability Control Panels regulate fluid and air pressures in the test cells
    • 6630-C Pore Pressure Transducer & Readout monitors pore water pressures and displays data on the included readout
    • 3340 Specimen Height Indicator tracks the deformation of soil specimens
    • Deairing Tanks use a vacuum to remove air from water for use in triaxial and flexible wall permeability testing
    • Flexible Wall Permeability Cell Accessories include additional Test Kits and other items used in the preparation and testing of soil specimens, such as Porous Stones, Latex Membranes, and O-Rings
    Diameter 7.5in (190.5mm) ID
    Specimen Size 1.4 - 6.0in (35.6 - 152.4mm)
    Pressure Rating 150psi
    Product Dimensions 10 x 12 x 15in (254 x 304.8 x 381mm) WxDxH
    Estimated Shipping Weight 29.0lb (13.15kg)

    Flexible Wall Permeability Cell Compatibilty Chart

    Please enter your questions/comments and contact information below. A Karol-Warner customer service representative will respond during business hours (8am - 5pm EST, Monday through Friday).

    Accessories
    Master Panel

    Triaxial / Permeability Control Panels

    From $3,200.00
    Pore Pressure Transducer & kPa Digital Readout

    Pore Pressure Measurement Device

    From $855.00
    Specimen Height Indicator

    Specimen Height Indicator

    $155.00
    1.5gal (5.7L) Deairing Tank with Valves, Fittings & Lines

    Deairing Tanks

    From $480.00
    1.4in Test Cell Kit

    1.4in Test Cell Kit

    $205.00
    1.5in Test Cell Kit

    1.5in Test Cell Kit

    $205.00
    1.875in Test Cell Kit

    1.875in Test Cell Kit

    $208.00
    2in Test Cell Kit

    2in Test Cell Kit

    $208.00
    2.36in Test Cell Kit

    2.36in Test Cell Kit

    $225.00
    2.42in Test Cell Kit

    2.42in Test Cell Kit

    $225.00
    2.5in Test Cell Kit

    2.5in Test Cell Kit

    $225.00
    2.8in Test Cell Kit

    2.8in Test Cell Kit

    $225.00
    3in Test Cell Kit

    3in Test Cell Kit

    $229.00
    4in Test Cell Kit

    4in Test Cell Kit

    $283.00
    6in Test Cell Kit

    6in Test Cell Kit

    $332.00
