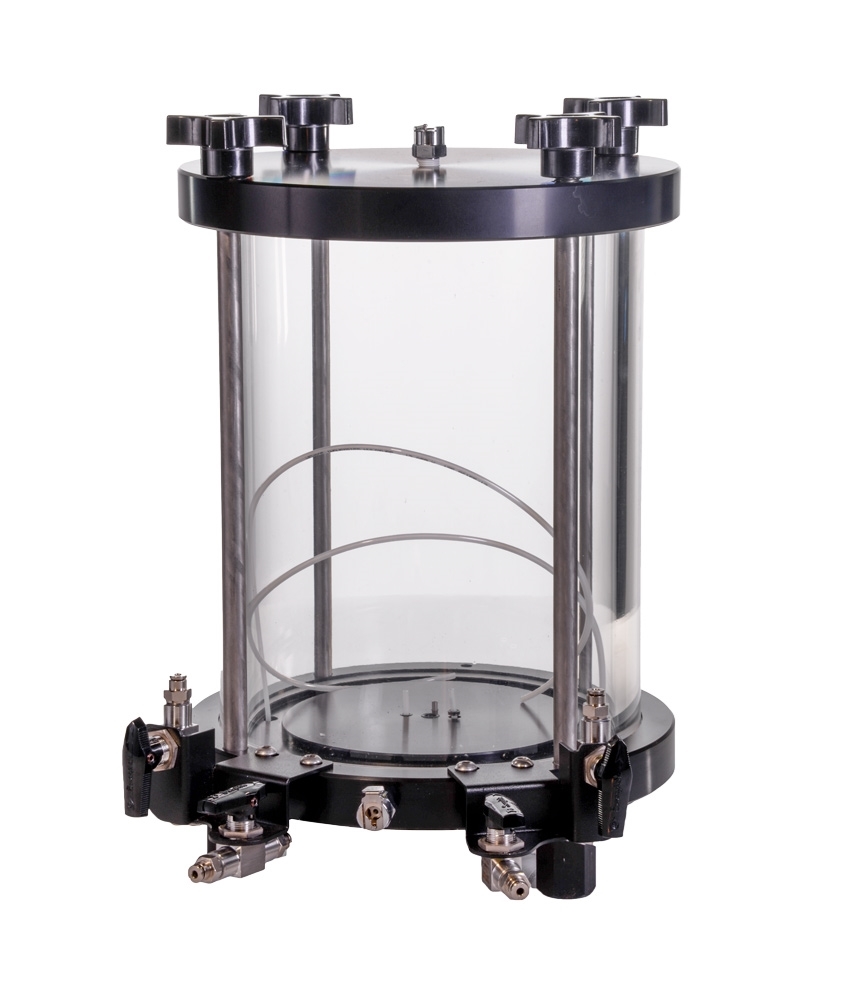

    Flexible Wall Permeability Cell, 1.4 to 6.0in dia. Specimens (Stainless Valves)
    Flexible Wall Permeability Cell, 1.4 to 6.0in dia. Specimens (Stainless Valves)

    Flexible Wall Permeability Cell, 1.4 to 6.0in dia. Specimens (Stainless Valves)

    3310SS
    $1,750.00
    Meets Standard(s)
    • ASTM D5084
    • Description
    • Specifications
    • Compatibility Table
    • Questions?

    This Flexible Wall Permeability Cell is fitted with precision zero-volume change ball valves and features rugged stainless steel fittings. The Cell accommodates soil samples 1.4 to 6in (35.6 to 152.4mm) in diameter. The Cell consists of a 150psi rated heavy-wall acrylic chamber and an anodized aluminum base and top.

    The Permeability Cell can be purchased individually or with a Test Cell Kit, sold separately. One Test Cell Kit is required for the proper operation of the Test Cell. Test Cell Kits include a Top Cap and Bottom Pedestal, two Porous Stones, four Sealing O-Rings, and two 0.012in (0.03mm) Latex Membranes. Complete kits, sample preparation tools, and individual components can be found on the Flexible Wall Permeability Cell Accessories page. Determine the necessary accessories and components for your samples with our Flexible Wall Permeability Cell Accessories Chart.

    Features:

    • A clear acrylic chamber allows viewing while testing
    • Rugged, corrosion-resistant anodized aluminum base and top
    • High-quality zero-volume change stainless steel ball valves and fittings

    Included Items:

    • Flexible Wall Permeability Cell
    • Fluid lines

    Accessories:

    • Triaxial / Permeability Control Panels regulate fluid and air pressures in the test cells
    • 6630-C Pore Pressure Transducer & Readout monitors pore water pressures and displays data on the included readout
    • 3340 Specimen Height Indicator tracks the deformation of soil samples
    • Deairing Tanks use a vacuum to remove air from water for use in triaxial and flexible wall permeability testing
    • Flexible Wall Permeability Cell Accessories include additional Test Kits and other items used in the preparation and testing of soil samples, such as Porous Stones, Latex Membranes, and O-Rings
    Diameter 7.5in (190.5mm) ID
    Specimen Size 1.4 - 6.0in (35.6 - 152.4mm)
    Pressure Rating 150psi
    Product Dimensions 10 x 12 x 15in (254 x 304.8 x 381mm) WxDxH
    Estimated Shipping Weight 29.0lb (13.15kg)

    Flexible Wall Permeability Cell Compatibilty Chart

    Please enter your questions/comments and contact information below. A Karol-Warner customer service representative will respond during business hours (8am - 5pm EST, Monday through Friday).

    Accessories
    Master Panel

    Triaxial / Permeability Control Panels

    From $3,200.00
    Pore Pressure Transducer & kPa Digital Readout

    Pore Pressure Measurement Device

    From $855.00
    Specimen Height Indicator

    Specimen Height Indicator

    $155.00
    1.5gal (5.7L) Deairing Tank with Valves, Fittings & Lines

    Deairing Tanks

    From $480.00
    1.4in Test Cell Kit

    1.4in Test Cell Kit

    $205.00
    1.5in Test Cell Kit

    1.5in Test Cell Kit

    $205.00
    1.875in Test Cell Kit

    1.875in Test Cell Kit

    $208.00
    2in Test Cell Kit

    2in Test Cell Kit

    $208.00
    2.36in Test Cell Kit

    2.36in Test Cell Kit

    $225.00
    2.42in Test Cell Kit

    2.42in Test Cell Kit

    $225.00
    2.5in Test Cell Kit

    2.5in Test Cell Kit

    $225.00
    2.8in Test Cell Kit

    2.8in Test Cell Kit

    $225.00
    3in Test Cell Kit

    3in Test Cell Kit

    $229.00
    4in Test Cell Kit

    4in Test Cell Kit

    $283.00
    6in Test Cell Kit

    6in Test Cell Kit

    $332.00
